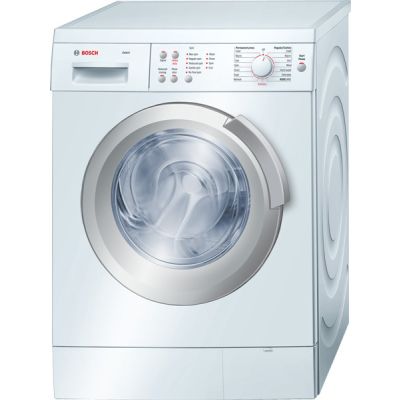

About the Bosch WAS20160UC
- 2.2 cu. ft. Capacity
- 15 Wash Programs
- Energy Consumption of 120 kWH/year
- Touch Controls
- 1,000 RPM Spin Speed
Brand:
Capacity:
2.2 Cu. Ft.
Wash Cycles:
15
Max Spin Speed (RPM):
1,000
Stackable:
Yes
Steam Cycle:
No
Type:
Front Load
Width:
23 35/64"
Depth:
24 49/64"
Height:
33 3/16"
Volts:
240/208 Volts
Amps:
15
Energy Star Rated:
Yes
CEE Rating:
Tier I
Axxis Laundry Systems expertly cleans and cares for your clothes while saving over 12,000 gallons of water and hundreds of hours of energy usage each year. This statistic is based on DOE test procedure of 392 loads per year and AHAM clothes washers Energy Efficiency and Consumption trends and 2000 Water Consumption. The smaller 24" size is also a perfect alternative when space is limited. For added convenience, the washer and dryer combo can be placed side by side or stacked on top of each other.
Bosch's exclusive horizontal Axis wash system gets clothes unbelievable clean. They have double the spin speed of conventional washers. Clothes emerge needing less drying time, sparing them from the damage of excessive heat or over-drying. Combined with its remarkable water efficiency, it adds up to hundreds of dollars in savings per year.
Key Features
Plugs into Axxis Dryer. Uses 15 Amp 3-Wire 240/208 Volt Power Cord.
Features
- Washer
- 2.2 cu. ft. High Capacity
- ENERGY STAR Qualified
- Energy Consumption of 120 kWh/year
- 208-240V Electrical Supply
- Spin Speed Up to 1,000 RPM
- Internal Water Heater
- 15 Individually Tailored Washing Programs
- Refresh Cycle
- KIDSCARE Cycle
- Sanitary Cycle
- Options
- Heavy Duty
- Rinse Plus
- Reduced Ironing
- SENSOTRONIC Plus
- Dynamic Load Sensor
- Digital Temperature Sensor
- Suds Sensor
- Unbalance Sensor
- Detergent Efficiency System with 3 Dispenser Chamber
- High Efficiency Tumble Action Wash System
- Child Lock-out function
- Unique Structured drum
- Touch Control Technology
Specifications
Dimensions
Width
23 35/64 Inch
Height
33 3/16 Inch
Depth
24 49/64 Inch
Capacity
2.2 Cu. Ft.
General Properties
Internal Water Heater
Yes
Door ring
silver-grey
Display
No
Dial
white
Buttons
silver
Maximum spin speed (rpm)
1,000 rpm
Spin speed options
Variable
Unbalance Sensor
Yes
Tub Material
Stainless steel
Suds Sensor
Yes
Status indicator
LED
Stackability
Yes
Capacity
Capacity (cu. ft.)
2.2 Cu Ft
Dimensions & Weight
Product packaging dimensions (HxWxD) (in)
34 1/4'' x 25 1/4'' x 26 3/4''
Power Cord Length
69''
Overall appliance dimensions (HxWxD) (in)
33 3/16'' x 23 9/16'' x 24 1/2''
Net weight (lbs)
163 lbs
Length outlet hose (in)
59.05
Length inlet hose (in)
47.24
Gross weight (lbs)
165 lbs
Installation Requirements
Watts (W)
2300 W
Volts (V)
208-240 V
Plug type
240V-3 prong
Frequency (Hz)
60 Hz
Current (A)
12 A
Features
Water Heater
Yes
Wash Cycles
15
Usage
Residential
Steam Cycle
No
Stainless Steel Drum
Yes
Leveling Legs
Yes
Fabric Softener Dispenser
Yes
Control Type
Digital
Bleach Dispenser
No
Maximum Spin Speed (RPM)
1,000
Soak Setting
Yes
Self Cleaning Lint Filter
No
Reversible Door
No
Technical Details
Voltage
240/208 Volts
Energy Star Rated
Yes
CEE Rating
Tier I
Amps
15
ADA Compliant
Yes
Product Information
UPC
825225855620
Brand
Bosch
Series
Axxis
Model
WAS20160UC
Appearance
Type
Front Load
Stackable
Yes
Color
White
Location of Controls
Front
Certifications
Approval certificates
CE, UL, VDE
Quietness
Noise level washing (dB(A) re 1 pW)
54 dB (A)
Noise level spinning (dB(A) re 1 pW)
74 dB (A)
Efficiency
Water Consumption (gal/y)
3904 gal
Total annual energy consumption (kWh)
140 kWh
Energy Star® qualified
Yes
Cycles & Options
Rinse Plus Option
Yes
Quick Wash Option
No
Number of Options
6
Dark colors
No
Active wear
No
General
Manufacturer
Bosch
