discontinued
There is a newer model of this item:
Need help finding a replacement?
-
Call us at
888-714-4938
Accessories
4 Item(s)

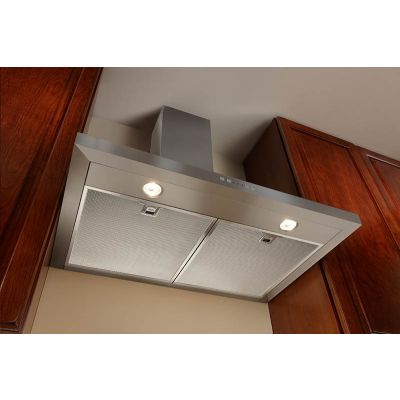

About the Broan EW5836SS
- 500 CFM Internal Blower
- Dual Halogen Lighting
- 3-Speed Electronic Push Control
- Aluminum Filters
- Convertible to Non-Ducted Operation
Brand:
CFM:
500 CFM
Speeds:
3
Venting Type:
Convertible
Style:
Chimney Style
Width:
35 15/16"
Height:
29 1/2"
Depth:
19 3/4"
From high-performance ducted models, to the most effective non-ducted units ever made. And they're all built to Broan's demanding quality standards.
So you can count on them to help keep your kitchen cleaner for years to come. Built-in lighting means you can count on your Broan range hood to keep your kitchen brighter. Some units even include a convenient nightlight feature.
There really is a difference with Broan. It's in the details.
Key Features
Features
- Wall mount
- Finish: 430 Stainless Steel #4 Brushed
- Telescopic flue accommodates 8' to 9' ceilings
- 6" round duct connector/backdraft damper
- 3-level halogen lighting (2 x 35 watt, 120V, Type MR16, GU10) (bulbs included)
- 4 push-button controls with LED speed indicator
- Compatible with optional RF remote control accessory (BCR1)
- Heat Sentry - automatically turns blower on to high speed when excess cooking heat is detected
- Delay timer control automatically shuts off range hood after 10 minutes
- Filter clean reminder
- 3-speed single centrifugal blower
- Dishwasher-safe filter features a quick-release latch
- Cord-connected
- For indoor use only
Options
- Replacement grease filters available
- Flue extension for 9 ft. to 10 ft. ceiling (Model FXNE58SS) (ducted or non-ducted)
- Convertible to non-ducted operation - requires non-duct kit Model RKE58 (sold separately)
- Replacement non-ducted recirculating filters available (Model FILTERE56)
- Make-up air damper - MD6T (6" duct), MD8T (8" duct)
- Hand-held remote control - BCR
EW5836SS Installation Guide
Specifications
Dimensions
Width
35 15/16 Inch
Depth
19 3/4 Inch
Height
29 1/2 Inch
Features
Halogen Lighting
3-Level
Finish
430 Stainless Steel #4 Brushed
Filter Clean Reminder
Yes
Dishwasher-Safe Filters
Yes
Delay Timer Control
Yes
Controls
4 Push-Buttons with LED Speed Indicator
Blower
3-Speed Single Centrifugal
Heat Sentry
Yes
Telescopic Flue
For 8 to 9 ft. Ceilings
Wall Mount
Yes
Power/Ratings
Volts
120
Sones
10.5 (High)/2.5 (Low)
Duct
6" Round
CFM
500 (High)/200 (Low)
Amps
3.05
Technical Details
Voltage
120 Volts
CEE Rating
Not Available
Amps
15
Energy Star Rated
No
Appearance
Venting Type
Convertible
Type
Hood
Style
Chimney Style
Color
Stainless Steel
Blower Type
Internal
Mounting Type
Wall Mount
Product Information
UPC
026715194940
Brand
Broan
Series
Elite EW58
Model
EW5836SS
Features
Speeds
3
Dishwasher Safe Filters
Yes
CFM
500 CFM
Approved for Outdoor Use
No
Halogen Lighting
Yes
Sones
10.5
Number of Fan Speeds
3
Lighting Levels
3
Options
Replacement Non-Ducted Recirculating Filters
FILTERE56
Make-Up Air Damper
MD6T (6" duct), MD8T (8" duct)
Hand-Held Remote Control
BCR
Flue Extension for 9-ft. to 10-ft. Ceiling
FXNE58SS (Ducted or Non-Ducted)
Convertible to Non-Ducted Operation
Requires Non-Duct Kit Model RKE58 (Sold Separately)
Dimensions
Width of Flue
8 3/4"
Overall Width
35 15/16"
Overall Height - Non-Ducted
29 3/4" - 42 3/8"
Overall Height - Ducted
29 1/2" - 39"
Overall Depth
19 3/4"
Depth of Flue
6 7/8"
Capacity
Noise Level
10.5 Sones
General
Manufacturer
Broan
