discontinued
There is a newer model of this item:
Need help finding a replacement?
-
Call us at
888-714-4938
About the Electrolux EI30DD10KS
- Optional Blowers
- Infinite-Speed Blower Control
- Push-Button Auto Raise/Lower
- Stainless Steel Filters
Brand:
CFM:
1,600 CFM
Venting Type:
Ducted
Style:
Standard Hood
Width:
30"
Height:
35 13/16"
Depth:
2"
Electrolux is a world leading international appliance company. They are a part in the daily life of hundreds of millions of families around the world. Each year, some 40 million consumers in more than 150 countries choose their products, such as cookers and cooktops, ovens, fridges and freezers, dishwashers, washing machines, tumble dryers, room air conditioners and vacuum cleaners. That translates to two products bought from them every second, every day of the year. In addition, they help hundreds of thousands of professional users manage and develop their businesses with their solutions for professional food service and commercial laundry. Available at Designer Appliances.
Key Features
*NOTE: Blower NOT included with purchase of this unit.
- Must purchase blower spearately
Infinite-Speed Blower Control
- The ultraquiet blower allows you to dial in the precise airflow needed.
Push-Button Auto Raise/Lower
- When activated, the downdraft rises 10" to capture even the most stubborn cooking odors.
- Can be vented through wall, roof or floor.

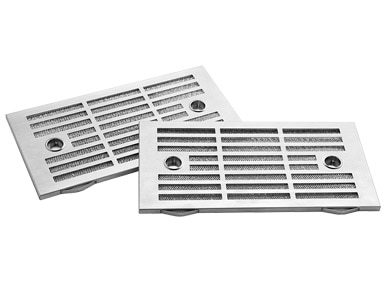

Stainless Steel Filters
- Dishwasher-safe for easy cleaning.
Blower Motor System Options
- Choose the style of ventilation from an integrated or remote blower installation option.
- Next, choose 1,600 CFM remote or 600 CFM integrated blower option needed for your ventilation requirements.
Available at Designer Appliances.
- www.Designer Appliances.com
EI30DD10KS Complete Owner's Guide (English)
Key Features

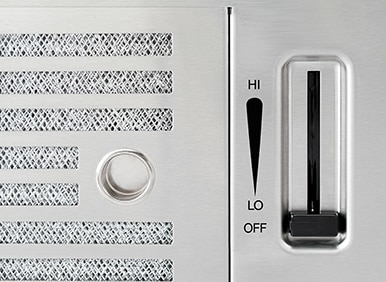

Infinite-Speed Blower Control
The ultra-quiet blower allows you to dial in the precise airflow needed.

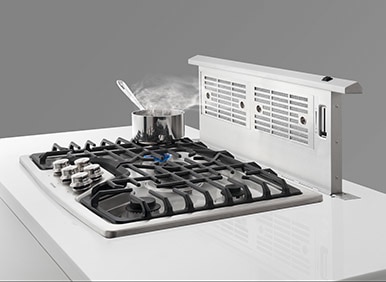

Cleans Your Air Quietly
The strong, powerful performance of this system matches your cooktop's output and aromas vanish into thin air. Choose from two blower options (either 600 CFM or 1600 CFM - each sold separately) to complete your installation.

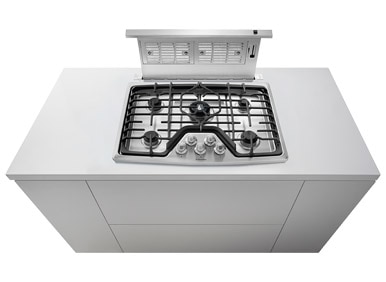

Slim Style
Designed to work in perfect harmony with your 36" gas or electric cooktop.
Stainless Steel Filters
Dishwasher-safe for easy cleaning.
Specifications
GTIN
JAN
012505559860
EAN
0012505559860
Features
Duct Required - 600 CFM Integrated Blower Motor
3-1/4" x 10"
Duct Required - 1,600 CFM Remote Blower Motor
3-1/4" x 14"
Exhaust Duct
External
Dishwasher-Safe Stainless Steel Filters
Yes
Air Discharge
Down / Left / Right
Air Delivery
1,600 CFM Remote / 600 CFM Integrated
Intake Area
10"
Blower Type
External
Sound Level
Varies
Fan Speeds
Infinite
Installation Type
In-Cabinet
Nominal Width
30"
Controls
Infinite-Speed
Specifications
Voltage Rating
120V / 60Hz / 15A
Connected Load (kW Rating) @ 120 Volts
0.36 kW
Amps @ 120 Volts
3.0 Amps
Sones Rating
Varies
Shipping Weight (Approx.)
48 Lbs.
Motor Power Cord Location
Bottom Right
Dimensions
Overall Height
35 13/16" (Including 10" Rise)
Overall Depth
2"
Overall Width
30"
Product Information
UPC
012505562471
Model
EI30DD10KS
Brand
Electrolux
Features
Dishwasher Safe Filters
Yes
CFM
1,600 CFM
Halogen Lighting
No
Approved for Outdoor Use
No
Dimensions
Height
35 13/16 Inch
Depth
2 Inch
Width
30 Inch
Appearance
Blower Type
Both
Venting Type
Ducted
Color
Stainless Steel
Type
Downdraft
Style
Standard Hood
Technical Details
Energy Star Rated
No
Voltage
120 Volts
Amps
15
General
Series
IQ-Touch
Manufacturer
Electrolux
