discontinued
There is a newer model of this item:
Need help finding a replacement?
-
Call us at
888-714-4938
About the Electrolux EI36EC45KS
- 36" Drop-In Electric Cooktop with 5 Flexible Radiant Elements, Ceramic Glass Surface, Digital Preset Touch Settings, Triple Element, ADA Compliance an
Brand:
Cooktop Type:
Cooktop
Finish:
Black
Fuel Type:
Electric
Style:
Smoothtop
Width:
36 3/4"
Height:
3 1/8"
Depth:
21 3/4"
Volts:
240/208 Volts
Amps:
50
Available at Designer Appliances.
Key Features
Flex-2-Fit Elements
- Elements adjust up to three sizes, so the element fits the cookware, not the other way around.
Glide-2-Set Control Panel
- At the touch of a button adjust temperature so dishes come out perfectly.

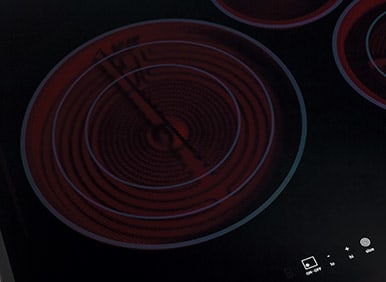

Triple Element
- An element that offers the versatility of three element sizes for ultimate flexibility, so it fits your cookware.

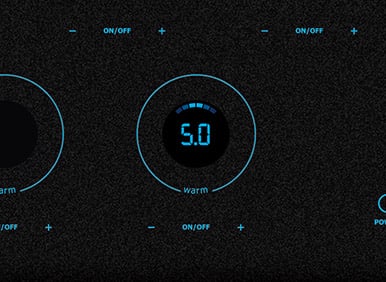

Digital Preset Touch Settings
- Up to 25 preset touch settings make adjusting heat up or down a snap.
Perfect Over a Wall Oven
- Mounts above a single wall oven for additional installation options.
Platinum Star Warranty
- Guaranteed performance provides peace of mind and service from Electrolux's national network of authorized independent service professionals.
- Available at Designer Appliances.
- www.designerappliances.com
EI36EC45KS Complete Owner's Guide (English)
Key Features
Triple Element
An element that offers the versatility of three element sizes for ultimate flexibility, so it fits your cookware.
Platinum Star Limited Warranty
Our exclusive limited warranty that includes 3-year coverage on parts and one year on labor.
Digital Preset Touch Settings
Up to 25 preset touch settings make adjusting heat up or down a snap.
Specifications
Technical Details
Voltage
240/208 Volts
Star-K Certified
Yes
Amps
50
ADA Compliant
Yes
Modules Required
No
LP Conversion
No
Ignition Type
Electronic
Features
Accessories
Cleaning Sponge (Included)
Center Burner
5/7"; 750/1,800 Watts
Controls
Across Front
Right Rear Burner
6"; 1,200 Watts
Right Front Burner
9"; 3,200 Watts
Left Rear Burner
6"; 1,200 Watts
Left Front Burner
6/9/12"; 1,200/2,000/3,000 Watts
Hot Surface Indicator Light
5 (Integrated in Display)
Display Type
Digital (Blue LED)
Cooking Surface
Black Glass (Stainless Steel Frame)
Dimensions and Weights
Product Width
36 3/4"
Product Weight
58 Lbs.
Product Height
3 1/8" - 6 5/8"
Product Depth
21 3/4"
Approximate Shipping Weight
66 Lbs.
Performance
Sabbath Mode
Yes; Star K Certified
Electrical Requirements
240V/208V; 60Hz; 40A
ADA Compliant
Yes
Burner Output
Set 3 QTY
3
Set 3 Output
1200
Set 2 QTY
1
Set 2 Output
1800
Set 1 QTY
1
Set 1 Output
3200
Burner 3 Output
1200
Burner 2 Output
1800
Burner 1 Output
3200
Grill
No
Griddle
No
GTIN
UPC
057112990798
Appearance
Type
Drop-In
Trim Color
Stainless Steel
Surface Color
Black
Style
Smoothtop
Color
Black
Number of Burners
5
Fuel Type
Electric
Cooktop
Cooktop
Function
Sabbath Mode
Yes
Burners / Elements
5
Burners
5
Induction
No
Hot Surface Indicator Light
Yes
Downdraft Venting
No
Control Type
Touch Sensor
Shabbos Compliance
Certification
STAR-K
Product Information
Brand
Electrolux
Model
EI36EC45KS
Dimensions
Actual Width
36 3/4 Inch
Actual Height
3 1/8 Inch
Actual Depth
21 3/4 Inch
General
Manufacturer
Electrolux
