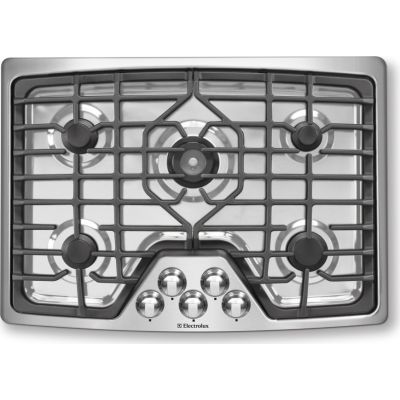

About the Electrolux EW30GC60IS
- 5 Sealed Burners
- Min-2-Max Burner
- Continuous Grates
Brand:
Cooktop Type:
Cooktop
Finish:
Stainless Steel
Fuel Type:
Gas
Style:
Sealed Burner
Width:
30"
Height:
4 1/2"
Depth:
20 7/8"
Cutout Width:
27 1/4"
Cutout Height:
8"
Cutout Depth:
19 1/8"
Volts:
120 Volts
Amps:
15
Electrolux Drop-In gas cooktops are designed with a dual-flame sealed burner. It offers the widest range of BTU performance in the industry for the utmost versatility, from a roaring 18,000 BTU boil to a gentle 450 BTU simmer. The continuous grates are designed for cooking multiple dishes at varying temperatures on a single cooktop. The Flex-2-Fit System has premium performance accessories includes a grill/griddle, optional wok ring and optional simmer plate. The easy-to-clean design comes with a deep-well cooktop and sealed burners for easy cleaning
Key Features
Min-2-Max Burner
- Designed with a dual-flame sealed burner, this cooktop offers the widest range of BTU performance in the industry for the utmost versatility - from a roaring 18,000-BTU boil to a gentle 450-BTU simmer.
Continuous Grates
- Designed for cooking multiple dishes at varying temperatures on a single cooktop.
- These grates allow easy movement of even the heaviest pots and pans from burner to burner - without lifting.
Flex-2-Fit System
- Premium gas cooktop versatility with sealed burners.
- Premium performance accessories include an available grill/griddle, an optional wok ring, and a simmer plate to use with small cooking utensils.
Easy-to-Clean Design
- Deep-well cooktop and sealed burners are designed for easy cleaning.
Specifications
Technical Details
Voltage
120 Volts
Star-K Certified
No
ADA Compliant
Yes
Amps
15
Modules Required
No
LP Conversion
Yes
Ignition Type
Electronic
Specifications
Amps @ 120 Volts
1.0 Amps
Approved for Downdraft Combination Installation
Yes
Approved for Single Oven Combination Installation
Yes
Color
Stainless Steel
Connected Load (kW Rating) @ 120 Volts
.001 kW (For use on adequately wired 120V, dedicated circuit having 2-wire service with a separate ground wire)
Electrical Cable
Yes
Gas/Power Supply Connection Location
Right Rear
Voltage Rating
120V/60 Hz/15A
Dimensions & Weights
Width
30"
Height (Extreme Bottom to Underside of Cooktop)
4 1/2"
Approx. Shipping Weight
75 lbs.
Cutout Depth
19 1/8" min./19 3/4" max.
Cutout Height
8"
Cutout Width
27 1/4" min./28 1/2" max.
Depth
20 7/8"
Burner Output
Set 4 QTY
1
Set 5 Output
5000
Set 5 QTY
1
Set 4 Output
7500
Set 3 QTY
1
Set 3 Output
9500
Burner 5 Output
5000
Burner 4 Output
7500
Burner 3 Output
9500
Burner 1 Output
18000
Burner 2 Output
12000
Set 1 Output
18000
Set 1 QTY
1
Set 2 Output
12000
Set 2 QTY
1
Griddle
No
Grill
No
Features
A.D.A. Compliant
Yes
Continuous Grates
Yes
Deep-Well Formed Cooktop
Yes
Electric Pilotless Ignition
Yes
Linear Flow Burner Valves
Yes
Min-2-Max Dual-Flame Sealed Burner
1 - 18,000 to 450 BTU
Professional-Grade Burner Controls
Yes
Sealed Power Burner
1 - 12,000 BTU
Sealed Precision Burner
1 - 5,000 to 875 BTU
Accessories
Simmer Plate
Optional - PN# 318254206
Wok Ring
Optional - PN# 318254309
LP Gas Conversion Kit
Included
Grill/Griddle
Available - PN# 318251614
Granite Countertop Installation Kit
Optional - PN# 903103-9010
Appearance
Style
Sealed Burner
Surface Color
Stainless Steel
Trim Color
Stainless Steel
Type
Drop-In
Color
Stainless Steel
Continuous Grates
Yes
Cooktop
Cooktop
Number of Burners
5
Fuel Type
Gas
Product Information
UPC
057112103624
Brand
Electrolux
Series
Wave-Touch
Model
EW30GC60IS
Function
Burners
5
Burners / Elements
5
Control Type
Knobs
Sabbath Mode
No
Downdraft Venting
No
Hot Surface Indicator Light
Yes
Dimensions
Actual Height
4 1/2 Inch
Actual Width
30 Inch
Cutout Depth
19 1/8 Inch
Cutout Height
8"
Cutout Width
27 1/4 Inch
Actual Depth
20 7/8 Inch
