discontinued
There is a newer model of this item:
Need help finding a replacement?
-
Call us at
888-714-4938

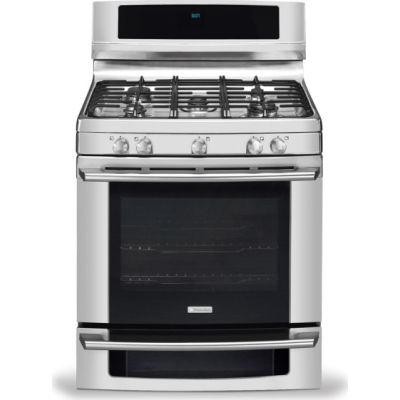

About the Electrolux EW3LGF65GS
- Description
- Specifications
- Features
- Info & Guides
- Reviews
Brand:
Series:
Wave-Touch
Style:
Freestanding
Width:
29 7/8"
Height:
47 1/2"
Depth:
26 27/32"
Capacity:
5.1 Cu. Ft.
Burners:
5
Convection:
Yes
Self Clean:
Yes
Fuel Type:
Gas
Volts:
120 Volts
Amps:
15
Electrolux freestanding gas range come with a Min-2-Max burner designed with a dual-flame sealed burner. This cooktop offers the widest range of BTU performance in the industry for the utmost versitility, from a roaring 16,000 BTU boil to a gentle 550 BTU simmer. The Sure-2-Fit convection oven with hidden bake burner comes with adjustable Luxury-Glide oven racks, Luxury-Design Lighting and their exclusive Luxury-Hold oven door.
The baking options features 6 cooking modes and 10 cooking options including their exclusive Perfect Turkey button for large holiday meals. Perfect Convect3 Third Element European Convection System features a variable 2-speed fan for more even cooking. Their range feature a large main oven and a second oven for the utmost cooking capacity. Use both simultaneously to cook 2 different items at 2 different temperatures.
Key Features
Min-2-Max Burner
- Designed with a dual-flame sealed burner, this cooktop offers the widest range of BTU performance in the industry for the utmost versatility - from a roaring 16,000-BTU boil to a gentle 550-BTU simmer
Sure-2-Fit Convection Oven with Hidden Bake Burner
- Adjustable Luxury-Glide oven racks are so smooth and extend effortlessly
- Luxury-Design Lighting ramp-up designer halogen lighting is as beautiful as it is functional
- Exclusive Luxury-Hold oven door stays put at whatever angle you place it
Baking Options
- Features 6 cooking modes and 10 cooking options including our exclusive Perfect Turkey button for large holiday meals
- Perfect Convect3 Third Element European Convection System features a variable 2-speed fan for more even cooking
Perfect Pair Oven
- Their ranges feature a large main oven and a second oven for the utmost cooking capacity
- Use both simultaneously to cook two different items at two different temperatures
Specifications
GTIN
Technical Details
Amps
15
Ignition Type
Electronic
Oven BTUs
18,000
Voltage
120 Volts
Product Information
Brand
Electrolux
Model
EW3LGF65GS
Model #
EW3LGF65GS
Series
Wave-Touch
UPC
012505547003
Warranty Terms
1 year ? Frigidaire Appliances are backed with a one year warranty. For additional information visit https://www.frigidaire.com/en/warranty/warranty-information
Oven Features
Broiler Element Location
Top
Convection
Yes
Delay Bake
Yes
Digital Temperature Display
Yes
Interior Oven Light
Yes
Oven Control Type
Touch Sensor
Primary Oven Capacity
5.1 Cu. Ft.
Proof Mode
Yes
Proofing
Yes
Racks
3
Removable Door
Yes
Sabbath Mode
Yes
Self-Cleaning
Yes
Temperature Probe
Yes
Timer
Yes
Burner Output
Burner 1 Output
16000
Burner 2 Output
12000
Burner 3 Output
8000
Burner 4 Output
4500
Set 1 Output
16000
Set 1 QTY
1
Set 2 Output
12000
Set 2 QTY
1
Set 3 Output
8000
Set 3 QTY
2
Set 4 Output
4500
Set 4 QTY
1
Cooktop Features
Burners / Elements
5
Cooktop Control Type
Knobs
Downdraft Ventilation
No
Modules Required
No
Appearance
Clock
Yes
Color
Stainless Steel
Continuous Grates
Yes
Cooktop
Sealed Burner
Drawer
Oven
Fuel Type
Gas
Stainless Steel Handle
Yes
Style
Freestanding
Viewing Window
Yes
Dimensions
Depth
26 27/32 Inch
Height
47 1/2 Inch
Interior Depth
19 1/2 Inch
Interior Height
18 5/8 Inch
Interior Width
24 5/16 Inch
Width
29 7/8 Inch
Capacity
Number of Burners
5
Dimensions
Oven Cavity Depth (in.)
19 1/2
Oven Cavity Height (in.)
18 5/8
Oven Cavity Width (in.)
24 5/16
Overall Exterior Depth (to Center of Arc) (in.)
26 27/32
Overall Exterior Depth (with 90° Door Open) (in.)
47
Overall Exterior Height (in.)
47 1/2
Overall Exterior Width (in.)
29 7/8
Additional Features
Adjustable Leveling Legs
Yes
Extra-Large Glass Window
Yes
Fully Extendable Drawer Glides
Yes
Luxury-Hold Oven Door
Yes
Perfect Pair Lower Oven
Yes
Signature Soft-Arc Oven Door and Handle Design
Yes
Cooktop Features
Continuous Grates with Deep-Well Top
3
Electric Pilotless Ignition
Yes
Linear Flow Burner Valves
Yes
Min-2-Max Dual-Flame Sealed Power Burner - 16,000 - 550 BTU
1
Sealed Power Burner - 12,000 BTU
1
Sealed Precision Burner - 4,500 - 750 BTU
1
Sealed Precision Burner - 8,000 BTU
2
Seamless Cooktop
Yes
Specifications
Connected Load (kW Rating) @ 120 Volts
1.8
Power Supply Connection Location
Right Bottom Rear
Product Weight
260 lbs.
Shipping Weight (Approx.)
300 lbs.
Voltage Rating
120V/60Hz/15A
Oven Features
Bake Burner - 16,000 BTU
Yes
Broil Burner - 12,500 BTU
Yes
Capacity
5.1 cu. ft.
Cobalt Blue Interior
Yes
Convection Burner - 200 Watts
Yes
Convection Roasting Rack
Yes
Conventional Racks
1
Hidden Bake Burner
Yes
Luxury-Design Lighting with Dual 40W Halogen Bulbs
Yes
Luxury-Glide Racks
2
Perfect Convect3 with Variable 2-Speed Fan
Yes
Self-Clean Options with Door Lock
3
Control Panel Features
Automatic Oven (Delay, Cook and Off)
Yes
Electronic Clock and Timer
Yes
Glass Front Display
Yes
Professional-Grade Burner Controls
Yes
Temperature Display
Yes
Wave-Touch Electronic Oven Control
Yes
Accessories
Grill / Griddle
Not Included
Porcelain Broiler Pan and Insert
Included
Simmer Plate - 318254206
Optional
Wok Ring - 318254307
Optional
30" Gas Freestanding Ranges (LP Gas Only)
Sabbath Mode (Star-K Certified)
Yes
General
Manufacturer
Electrolux
