Fisher Paykel
Model#: OB30SDEPX1

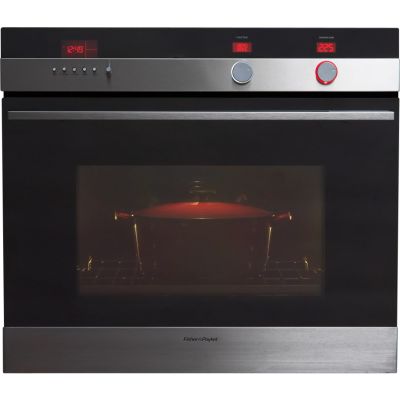

OB30SDEPX1 | Fisher Paykel 30" Electric Single Oven

  • 30" Single Electric Wall Oven with 3.5 cu. ft. Capacity
  • True Convection
  • Illuminated Halo Controls
  • Telescopic Sliding Shelves and Automatic Cooking
Authorized Fisher Paykel Dealer
Why don't we show the price?

Retailers like Designer Appliances have the legal right to set their own prices independently, but some manufacturers place restrictions on how those prices may be communicated. Because our price on this item is lower than the manufacturer's "minimum advertised price," the manufacturer does not allow us to show you our price until you take further action, such as placing the item in your shopping cart, or in some cases, proceeding to the final checkout stage. The steps required depend on the details of the manufacturer's minimum advertised price policy. Taking these steps allows Designer Appliances to show you our price consistent with our goal of always offering you the lowest possible prices on the widest selection of products.

This won't require you to purchase the product. You can easily remove it from your cart if you decide not to buy it.

We realize that this is an inconvenience and are regularly working to educate manufacturers on how their policies impact our customers. We welcome your comments and suggestions.

Why don't we show the price?

Retailers like Designer Appliances have the legal right to set their own prices independently, but some manufacturers place restrictions on how those prices may be communicated.

To request a quote on this product please call us at 888-714-4938 or submit a quote request. This won't require you to purchase the product.

We realize that this is an inconvenience and are regularly working to educate manufacturers on how their policies impact our customers. We welcome your comments and suggestions.

Discontinued

Manuals & Downloads
Product Specifications
Oven StyleSingle
Capacity3.5 Cu. Ft.
Convection
Self Clean
Dimensions
Width30"
Height27 1/16"
Cutout Width28 1/2"
Cutout Height26 13/16"
Power Requirements
Fuel TypeElectric
Volts230/208 Volts
Amps30

PRODUCT DETAILS

Availability: Call (888) 714-4938

The OB30's cavernous size, ten cooking modes including self-clean and AeroTech cooking system make it the ultimate in cooking technology and convenience. Combine all this with its clean lines, stylish machined metals and electronic illumination, and the OB30 strikes the perfect balance between form and function.

AeroTech True Convection Cooking System
The AeroTech True Convection Cooking System circulates hot air all around the cavity, providing 3D surround heat. This even heat distribution throughout the oven makes multi-shelf cooking ideal and creates precision in cooking.

Illuminated Halos
Illuminated halos surround the temperature and function knobs on the control panel. When a function is chosen the function knob's halo glows red. The temperature knob also glows red while the oven heats up, and once the oven reaches the selected temperature the halo will change to a white illumination.

Telescopic Sliding Shelves
Telescopic sliding shelves seamlessly slide in and out of the oven. The sliding shelves are equipped with a handle like front ensuring you can easily grab the front of the shelf and slide out the trays of food. This allows direct access to food making basting, turning and adding ingredients easier and safer.

Automatic Cooking
A convenient function, automatic cooking means the oven can be set to time a meal perfectly, even when you are not in the kitchen. Use automatic cooking to automatically turn the oven on, cook, and then turn the oven off at the times you require, for a meal that is ready when you are.

FEATURES

    • True convection distributes air more evenly throughout the oven cavity for even cooking and browning
    • Both oven cavities are fully loaded with true convection and pyrolytic self-clean
    • 10 cooking functions
    • Multi-shelf cooking
    • Telescopic sliding shelves
    • 8 shelf positions
    • 12 pass Maxi-broil, 4,400 W total broiling power
    • 3.5 cu ft usable capacity, 4 cu ft total space per cavity
    • Temperature is precisely controlled using a microprocessor
    • Concealed heating elements, with recessed broil element
    • Active venting system removes smoke, odor and oils using a catalytic converter and an additional fan
    • Illuminated halos surround the temperature and function knobs for visual feedback on oven temeprature
    • European or traditional installation options

SPECIFICATIONS

Cooking Modes
True Areo Yes
Warm Yes
Roast Yes
Aero Bake Yes
Aero Broil Yes
Aero Pastry Yes
AeroTech True Convection Cooking System Yes
Bake Yes
Broil Yes
Maxi Broil Yes
Pastry Bake Yes
Capacity & Installation
Total Capacity 4.0 cu. ft.
Underbench and Wall Mount Yes
Useable Capacity 3.5 cu. ft.
Oven Shelf Positions 8
European or Traditional Installation Options Yes
Electrical Requirements
Current Requirement 21 Amps
Cutout Dimensions
Inside Height of Cavity 26 13/16"
Minimum Inside Depth of Cavity - Flush Install 24 1/8"
Minimum Inside Depth of Cavity - Proud Install 22 5/8"
Minimum Inside Width of Cavity 28 1/2"
Note If installing a cooktop above the oven, ensure adequate clearance is provided for the cooktop as per the cooktop manufacturers instructions.
Overall Height of Cabinetry 27 5/16"
Overall Width of Cabinetry 30"
Controls
Self Diagnostic for Servicing Yes
Automatic Cooking Yes
Electronic Clock Yes
Fahrenheit/Celcius Selection Yes
Full Electronic Control Yes
Sabbath Mode Yes
Safety
Control Panel Keylock Yes
Quadruple Glazed \"Cool Touch\" Glass Door Yes
Warranty
Parts & Labor Warranty 1 Year
Performance Features
Powerful 4400W Grill Yes
Multi-Shelf Cooking Yes
Fast Preheat Yes
Active Oven Venting System Yes
Cooking Modes 10
General Features
Halogen Oven Lights 3
Multifunction Illuminated Halos 2
Accessories
3-Piece Anti-Splatter Grill System 1
Aluminium Baking Tray 2
Cooking Probe Yes
Removable Side Racks Yes
Telescopic Sliding Shelves 3
Dimensions
Overall Width 29 3/4"
Width of Chassis 28 1/4"
Overall Height 27 1/16"
Overall Depth (without handle) 23 15/16"
Height of Chassis 26 3/4"
Depth of Chassis 22 7/16"
Depth of Open Oven Door (measured from front of oven frame) 20 7/8"
Depth of Oven Frame and Control Panel (excl. knobs) 1 1/2"
Cleaning
High Acid Resistant Graphite Enamel Interior Yes
Pyrolytic Self Clean Cycle Yes
Removable Oven Door Yes
