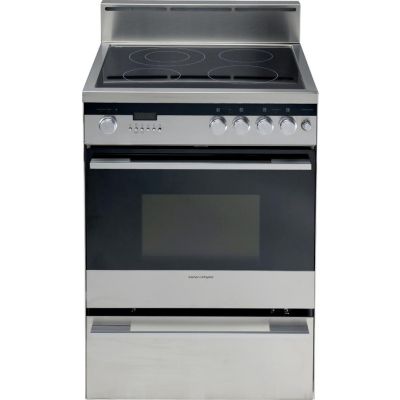

About the Fisher Paykel OR24SDPWSX1
- Description
- Specifications
- Features
- Info & Guides
- Reviews
Brand:
Series:
Paykel
Style:
Freestanding
Width:
23 7/8"
Height:
36 7/32"
Depth:
24 11/64"
Capacity:
2 Cu. Ft.
Burners:
4
Convection:
Yes
Self Clean:
Yes
Fuel Type:
Electric
Volts:
240/208 Volts
Amps:
50
This freestanding range combines the convenience of a self cleaning pyrolytic oven with the control and precision of an integrated ceramic cooktop. A fresh, clean look reflects the latest design philosophies from Europe, featuring refined control knobs and easy to follow icons on a simple designer control panel.
The durable ceramic glass cooktop features four cooking zones including a double cooking zone incorporating two heating elements. The single continuous glass cover offers precise temperature control and an easy clean surface.
The pyrolytic self-cleaning cycle takes care of the mess and grime that is traditionally associated with oven cleaning. During self-clean cycles the oven reaches higher temperatures than it does for cooking and this burns off and breaks down soil deposits. The ash residue that remains can simply be removed from the cool oven with a damp cloth or sponge.
Key Features
Accessories
- Oven to Table Glass Baking Tray
- The multipurpose glass tray is made from toughened glass to withstand high temperatures.
- It is suitable for roasting and grilling, and can be used as a serving dish.
- The rim of the tray makes it easy to handle.
- 2 Step Down Oven Shelves
- Warming Drawer Shelf
- The warming drawer can be heated between 86°F (30°C) and 248°F (120°C) to keep hot food warm after cooking.
- It is fitted with a moisture selector which can be adjusted to keep food moist or crisp, for the perfect meal as it was intended to be served.
- 1 Broiling Pan
- 1 Broiling Rack
Cleaning
- Rear Oven Light
- Easy Clean, Hard-Wearing Grey Enamel
- Removable Door with Soft Hinges
- Pyrolytic Self Clean Cycle
Controls
- Automatic Cooking Minute Timer
- 6 Button Electronic Clock
Cooking Modes
- Defrost
- Traditional Convection Cooking
- Broil
- Convection Cooking with Ventilation
- Ventilated Broiling
- Ventilated Cooking with Double Broil
Cooktop/Hob Features
- Ceramic Glass Cooktop
- High Speed Ribbon Elements
- Easy to use Control Knobs
- Power Indicator Light
- Residual Heat Indicator Light
Performance Features
- 8 Functions
Safety
- Cooling Fan and Vented Frame
- Five Pane Oven Door
Specifications
Burner Output
Set 2 Output
1700
Set 2 QTY
1
Set 3 Output
1200
Set 3 QTY
2
Set 1 QTY
1
Burner 1 Output
2100
Burner 2 Output
1700
Burner 3 Output
1200
Set 1 Output
2100
Cooking Modes
Defrost
Yes
Traditional Convection Cooking
Yes
Ventilated Broiling
Yes
Ventilated Cooking with Double Broil
Yes
Convection Cooking with Ventilation
Yes
Broil
Yes
Safety
Cooling Fan and Vented Frame
Yes
Five Pane Oven Door
Yes
Controls
Clock
Automatic Cooking Minute Timer 6 Button Electronic Clock
Product Dimensions
Overall Depth of Product (without handle)
24 11/64"
Overall Height of Product
35 17/32" - 36 7/32"
Overall Width of Product
23 7/8"
Capacity
Usable Oven Capacity (main oven)
2 cu. ft.
Cleaning
Oven Light
Rear
Removable Door with Soft Hinges
Yes
Self Cleaning
Pyrolytic Self Clean Cycle
Surface
Easy Clean, Hard-Wearing Grey Enamel
Cooktop/Hob Features
Burner Type
Ceramic Glass Cooktop
Controls
Easy to use Control Knobs
High Speed Ribbon Elements
Yes
Power Indicator Light
Yes
Residual Heat Indicator Light
Yes
Appearance
Stainless Steel Handle
Yes
Style
Freestanding
Viewing Window
Yes
Clock
Yes
Color
Stainless Steel
Cooktop
Smoothtop
Drawer
Warming
Fuel Type
Electric
Oven Features
Temperature Probe
Yes
Timer
Yes
Convection
Yes
Delay Bake
No
Digital Temperature Display
No
Broiler Element Location
Top
Primary Oven Capacity
2 Cu. Ft.
Proof Mode
No
Proofing
No
Racks
2
Removable Door
Yes
Sabbath Mode
No
Self-Cleaning
Yes
Oven Control Type
Digital and Knobs
Interior Oven Light
Yes
Product Information
UPC
822843884858
Warranty Terms
2 years ? Fisher & Paykel appliances are backed by a limited two-year warranty. For full warranty details visit https://www.fisherpaykel.com/us/help-and-support/warranty-information#Limite
Brand
Fisher & Paykel
Model
OR24SDPWSX1
MPN
88485
Technical Details
Voltage
240/208 Volts
Amps
50
Oven Wattage
2,200
Performance Features
Functions
8
Accessories
Warming Drawer Shelf
Yes
Broiling Pan
1
Broiling Rack
1
Oven to Table Glass Baking Tray
Yes
Step Down Oven Shelves
2
Dimensions
Width
23 7/8 Inch
Depth
24 11/64 Inch
Height
36 7/32 Inch
GTIN
Cooktop Features
Cooktop Control Type
Knobs
Burners / Elements
4
Downdraft Ventilation
No
Hot Surface Indicator Light
Yes
Induction
No
Modules Required
No
General
Series
Paykel
Manufacturer
Fisher Paykel
Capacity
Number of Burners
4
