discontinued
There is a newer model of this item:
Need help finding a replacement?
-
Call us at
888-714-4938
Accessories
3 Item(s)

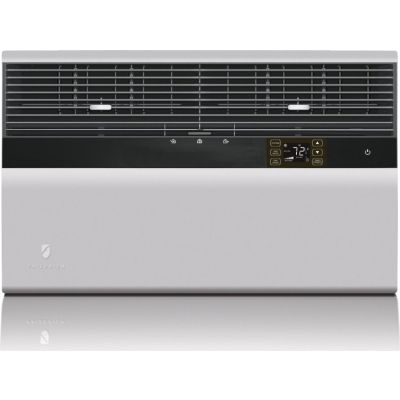

About the Friedrich ES12N33
- 10,700 BTU Electric Heat
- 10.9 EER
- R-410A Refrigerant
- 24-Hour Timer
- Carbon Filtration
- Digital Remote
- 230/208V
Brand:
Installation:
Window / Wall
BTU:
11,500 BTU
Fan Speeds:
3 Speeds
Max CFM:
275 CFM
Remote Included?:
Yes
Heat:
Electric Heat
Series:
Kuhl Plus
Height:
15 15/16"
Width:
25 15/16"
Depth:
29"
Volts:
230/208 Volts
Amps:
4.8 Amps
Plug Type:
6-20P
Energy Star Rated:
No
EER:
10.9
As you shop for the perfect room air conditioner, you may encounter some familiar brand names. You've seen them on toasters, refrigerators, microwaves and washing machines.
Not the Friedrich name. Because air conditioners are the sole focus of their company. They don't manufacture light bulbs or televisions. They make air conditioners.
You'll find a range of choices: room, portable, ductless split systems, to name just a few. Their product pages will help you determine which type of air conditioner and installation best meet your needs.
For quality, performance, efficiency, choice and service, Friedrich is the name to know. Before you make this important purchase, find out what makes Friedrich air conditioners different.
Durable, Quiet, Efficient
Friedrich air conditioners are hard-working and hard-wearing. Their commercial-grade products are the first choice for tough environments, from oil rigs to the Kennedy Space Center. Constructed from the highest-quality materials and components, these units are built to exacting standards - yet they are among the quietest and most energy-efficient available.
Kuhl is about choice.
When designing Kuhl, their engineers challenged convention to develop the most advanced window air conditioner on the market. Kuhl combines sophisticated controls, unrivalled quality, energy efficiency, and unmatched durability in one sleek performer.
You'll find more options, features and ways to customize your cooling experience than you ever thought possible in a window air conditioning solution.
How to Choose a Room Air Conditioner
Compared to large capacity central units, room air conditioners have several advantages. The initial cost of a room air conditioning unit is significantly lower than the cost of central air. Because room air conditioners are designed for cooling small spaces, operating costs are reduced. And, room air conditioners can provide personalized temperature and humidity controls that central systems cannot.
Calculating Cooling Capacity
Cooling capacity is the critical factor in properly selecting a room air conditioner. Cooling capacity is measured in British Thermal Units (BTUs) and typical models will range in capacity from 5,000 BTUs to 28,500 BTUs.
Choosing an undersized unit will overwork the unit and it will not cool properly. Choosing an oversized unit will cost more to buy and operate and it will not dehumidify properly.
We can help you to calculate capacity. Be prepared to provide specific information on:
- Room Dimensions
- A simple floor plan to show the location of doors and north-facing windows
- The number of people it will serve
- Sources of heat such as lamps, TV and appliances
- An explanation of what's above the intended room
- Your insulation provisions
Cooling Capacity by Room Size
Measure the length and width of the area to be cooled. Multiply the length by the width to determine square footage or square meters. When cooling rooms with uninsulated ceilings, great rooms, or southern or western sun exposures - step up to the next BTU size.
| Room Size | BTU | |
| Sq. Ft. | Sq. m | |
| 150 | 14 | up to 5,000 |
| 165 | 15 | 5,200 |
| 216 | 20 | 6,000 |
| 350 | 33 | 8,000 |
| 425 | 39 | 9,000 |
| 500 | 46 | 10,000 |
| 640 | 60 | 14,000 |
| 900 | 84 | 15,100 |
| 1,110 | 103 | 18,000 |
| 1,170 | 109 | 18,500 |
| 1,435 | 133 | 22,000 |
| 1,672 | 154 | 25,000 |
| 1,960 | 182 | 28,500 |
Key Features
Comfort and Convenience
- Control your unit from your smartphone, computer or tablet.
- Create customized 7-day schedules.
- 24-hour timer.
- Optional wired wall thermostat.
- Group units for zone or centralized control using FriedrichLink.
- 3 cooling and fan speeds.
- Automatic fan speed adjustment.
- Auto-changeover.
- Comfortwatch technology samples the air to more accurately maintain the set temperature.
- 8-way airflow control.
- Display set point or room temperature.
- LCD panel auto dims when not in use.
- Nightlight mode.
Durability
- Scratch resistant, painted 20-gauge steel cabinet resists corrosion and rust.
- Solid sleeve top keeps out falling debris.
- Solid steel blower wheel housing.
- Commercial grade fan motor run at lower temps for longer life.
- Fan motor is totally enclosed for maximum protection.
- Exclusive aluminum rear grille protects against vandalism and damage.
- Firm grip handles for easier installation and maintenance.
- Aluminum endplates prevent rust.
- Solid steel base pans and inner walls.
- Robust construction does not rely on outer sleeve for support.
Sound Reduction Technology
- Extra thick rubber grommets absorb vibration and reduce noise inside, while steel inner walls and extra dense insulation block outdoor noise.
- Unique airflow path minimizes operating sound.
- Larger discharge vents allow conditioned air to move more quietly.
Installation Features
- Can be installed in window or thru-the-wall (depending on wall thickness).
- Slideout chassis design, including firm grip handles, makes installation and maintenance much easier.
- Rugged hardboard side panels allow for a more permanent installation.
- Front cover designed to allow power cord to exit left or right out of the unit.
- Heavy-duty installation hardware.
- Front cover attaches easily and securely; nut driver included.
- Powercord can run left or right for more installation options.
Superior Filtration
- Advanced dual-stage carbon superior filtration system removes allergens, odors, ozone and other impurities from the air.
- In lab testing, combining the the optional carbon filter with the standard antimicrobial filter achieved a superior air filtration rating of MERV 6.
- Fresh air and exhaust vents offer additional air quality control.
- Maintenance made easy by hinged filter door access, and a check filter reminder.
Safety and Security Features
- EntryGard anti-intrusion protection prevents kick-in by securing the unit in the sleeve; a protective rear grille shields the unit.
- Insect barrier keeps out smaller intruders.
- LCDI power cord.
- Protective rear grille.
Earth Friendly
- Smart Grid Capable.
- Two optional energy management schedules.
- Auto Fan mode saves money by conserving energy.
- Ozone-friendly R-410A refrigerant.
- RoHS compliant.
- Recyclable packaging.
Unique Digital Control System
- Precision control over all Kuhl's functions.
- Available at Designer Appliances.
- www.designerappliances.com
Manuals & Downloads
ES12N33 dimensions
Specifications
Features
Window Type
Standard
Wall Sleeve Included
No
Type
Window / Wall
Energy Efficiency Rating
10.9
Cooling Capacity (BTU)
11,500 BTU
Control Type
Digital
Chassis Type
Slide Out
CFM Room Circulation
275 CFM
Heat
Electric Heat
Heating Capacity (BTU)
10,700 BTU
Remote Control Included
Yes
PTAC
No
Maximum Heating Watts
3,500 Watts
Maximum Heating Amps
16 Amps
Maximum Cooling Watts
1,055 Watts
Maximum Cooling Amps
4.8 Amps
Specifications
Cooling Watts
1,062/1,062 Watts
Cooling Capacity
12,000/12,000 BTU
Cooling Amps
4.9/5.2 Amps
COP
N/A
Energy Efficiency Ratio (ERR)
11.3/11.3
Heating Amps
16.0/14.7 Amps
Volts Rated
230/208 Volts
Sleeve Type
S
Shipping Weight
128.0 Lbs.
Room Side Air Circulation
325 CFM
Net Weight
113.0 Lbs.
Moisture Removal
3.4 Pints/Hr.
Heating Watts
3,500/2,900 Watts
Heating Capacity
10,700/8,900 BTU
Circuit Rating/Breaker
Power Cord Length
6 Ft.
Plug Face (NEMA#)
6-20P
Circuit Rating Breaker or T-D Fuse
250V - 20A
Dimensions
Window Width
27 3/8" Min. - 42" Max.
Shell Depth To Louvers
8 3/4"
Overall Width
25 15/16"
Overall Height
15 15/16"
Overall Depth with Front
29"
Min. Extension Outside
16 15/16"
Min. Extension Into Room
5 3/4"
In-Wall Finished Hole Width
26 3/16"
In-Wall Finished Hole Height
16 3/16"
In-Wall Finished Hole Depth
7 3/8" Max.
Dimensions
Width
25 15/16 Inch
Depth
29 Inch
Height
15 15/16 Inch
Technical Details
Voltage
230/208 Volts
Energy Star Rated
No
ADA Compliant
No
Plug Type
6-20P
Product Information
Brand
Friedrich
Series
Kuhl Plus
Model
ES12N33
Specifications:
Fan Speeds
3 Speeds
General
Manufacturer
Friedrich
