discontinued
There is a newer model of this item:
Need help finding a replacement?
-
Call us at
888-714-4938
Accessories
3 Item(s)

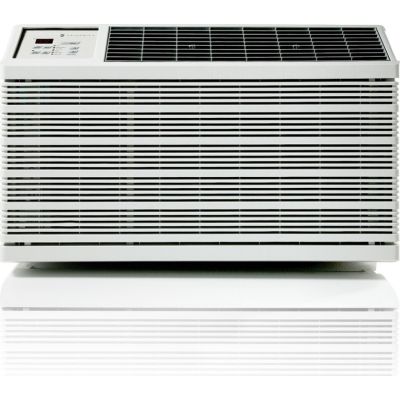

About the Friedrich WE13C33
- 12,600 BTU Through the Wall Air Conditioner with 11,000 Electric Heat Capacity
- R-410A Refrigerant
- 290 CFM Room Circulation
- Top Mounted Digital Controls and 9.4 Energy Efficiency Ratio
Brand:
Installation:
Wall
BTU:
12600
Fan Speeds:
3 Speeds
Max CFM:
290
Remote Included?:
Yes
Heat:
Electric Heat
Series:
WallMaster
Height:
15 3/4"
Width:
26 1/2"
Depth:
21"
Volts:
230/208 Volts
Amps:
6.3
Plug Type:
6-20P
Energy Star Rated:
No
EER:
9.4
Today, the fundamental direction of Friedrich is to be the top manufacturer of specialty air treatment products for the worldwide market. Moving the company forward are dedicated employees who are committed to excellence and have a passion to succeed. Friedrich is a company that is respected for a high degree of integrity and professionalism, as well as being recognized as the best in the business. The Friedrich name is synonymous with quality... shaped by the spirit that launched this company over a century ago. Available at Designer Appliances.
Friedrich is known for manufacturing some of the world's most durable air conditioners. You won't believe some of the places you'll find them. Friedrich air conditioners are made from higher grade materials and components that delivery dependable operation for years. But don't take their word for it. Some of their customers are business that operate in harsh environments where equipment just has to work. Period. Oil companies rely on them to cool offshort oil rigs, and they can be found on military bases and in government offices all over the world. Friedrich air conditioners are in use at Northrop Grumman, Eastman Chemical and the Kennedy Space Center, just to name a few. If they can handle their jobs, just think how well they will perform in your home.
Key Features
IMPORTANT NOTE: Sleeves are sold and shipped separately to accommodate new construction and replacement requirements. Available at Designer Appliances.
Features
- Environmentally friendly R-410A refrigerant used in all models
- Commercial Grade Thru-the-wall Electric Heat models mount flush with exterior walls to create a sleek appearance and unobstructed window views.
- May be installed almost anywhere on a wall for optimal placement.
- Solid side chassis allows for installation into thicker walls than standard room air conditioners.
- Exact fit for Fedders A sleeves. Fits Fedders B sleeves with kit.
- The most Energy Efficient Solid-side Air Conditioner available
- MoneySaver setting saves energy by turning the fan on and off with the compressor
- The Smart Fan feature adjusts the fan speed to maintain the desired temperature
- Easy-to-clean filter
- 3 Speed Fan
- Auto memory backup
- Easy-to-reach top-mounted controls
- Sleeves sold and shipped separately
- Visit www.designerappliances.com
Specifications
Dimensions
Width
26 1/2"
Depth
21"
Height
15 3/4"
Specifications
Energy Star Qualified
No
EER
9.4/9.4
Cooling Watts
1,340/1,309
Cooling Capacity
12,600/12,300 BTU
Cooling Amps
6.3/6.7
Circuit Breaker Rating
250V-20A
Heating Amps
16.0/14.7
Heating Capacity
11,000/9,100 BTU
Volts Rated
230/208
Sleeve
WSD
Room Side Air Circulation
290 CFM
Power Cord Length
4 ft.
Plug Face
6-20P
Net Weight
107 lbs.
Moisture Removal
3.6 Pints/Hour
Heating Watts
3,550/2,950
Sleeve/Chassis Dimensions
WSD Sleeve Width
27"
WSD Sleeve Height
16 3/4"
WSD Sleeve Depth with Front
23"
WSD Sleeve Depth
16 3/4"
Min. Extension Outside
9/16"
Min. Extension Into Room
7 1/2"
Finished Hole Width
27 1/4"
Finished Hole Max. Depth
15 5/16"
Finished Hole Height
17 1/4"
Chassis Width
26 1/2"
Chassis Height
15 3/4"
Chassis Depth
21"
Features
Wall Sleeve Included
No
Type
Wall
Heating Capacity (BTU)
11000
Heat
Electric Heat
Fan Speeds
3 Speeds
Energy Efficiency Rating
9.4
Cooling Capacity (BTU)
12600
Control Type
Digital
Chassis Type
Thru the Wall
CFM Room Circulation
290
Maximum Cooling Amps
6.3
Remote Control Included
Yes
PTAC
No
Maximum Heating Watts
3550
Maximum Heating Amps
16.0
Maximum Cooling Watts
1340
Technical Details
Voltage
230/208 Volts
Energy Star Rated
No
Plug Type
6-20P
ADA Compliant
No
Specifications:
