Model#: WE15C33

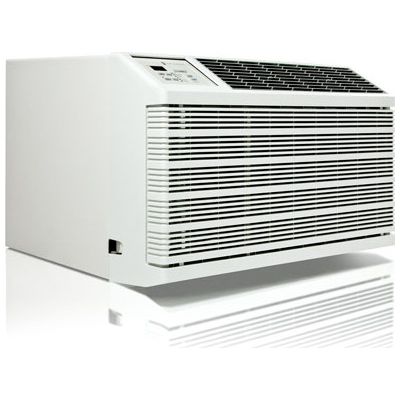

WE15C33 | Friedrich Wallmaster® 15,000 BTU Thru-the-Wall Air Conditioner with 11,000 BTU Electric Heat

  • 15,000 BTU Thru-the-Wall Air Conditioner with Electric Heat
  • 290 CFM Room Air Circulation
  • 3-Speed Fan
  • Auto Restart and Remote Control
Authorized Friedrich Dealer
Why don't we show the price?

Retailers like Designer Appliances have the legal right to set their own prices independently, but some manufacturers place restrictions on how those prices may be communicated. Because our price on this item is lower than the manufacturer's "minimum advertised price," the manufacturer does not allow us to show you our price until you take further action, such as placing the item in your shopping cart, or in some cases, proceeding to the final checkout stage. The steps required depend on the details of the manufacturer's minimum advertised price policy. Taking these steps allows Designer Appliances to show you our price consistent with our goal of always offering you the lowest possible prices on the widest selection of products.

This won't require you to purchase the product. You can easily remove it from your cart if you decide not to buy it.

We realize that this is an inconvenience and are regularly working to educate manufacturers on how their policies impact our customers. We welcome your comments and suggestions.

Why don't we show the price?

Retailers like Designer Appliances have the legal right to set their own prices independently, but some manufacturers place restrictions on how those prices may be communicated.

To request a quote on this product please call us at 888-714-4938 or submit a quote request. This won't require you to purchase the product.

We realize that this is an inconvenience and are regularly working to educate manufacturers on how their policies impact our customers. We welcome your comments and suggestions.


Product Specifications
BTU15,000 BTU
Fan Speeds3 Speeds
Max CFM290 CFM
Remote Included?
HeatElectric Heat
Height15 3/4"
Width26 1/5"
Power Requirements
Volts230/208 Volts
Amps8.3 Amps
Plug Type6-20P
Energy Star Rated

Friedrich AG
Architectural Grille

Friedrich BAK
Baffle Adapter Kit

Friedrich DK
Drain Kit

Friedrich IDK
Internal Drain Kit

Friedrich SB
Sub Base

Friedrich WSE
Wall sleeve for WallMaster commercial grade through the wall air conditioners


Availability: Call (888) 714-4938

Since its founding in 1883, Friedrich Air Conditioning Co. has had one manufacturing standard - quality without compromise. Over the years, the company's products have changed, but the commitment to quality has endured.

Today, the fundamental direction of Friedrich is to be the top manufacturer of specialty air treatment products for the worldwide market. Moving the company forward are dedicated employees who are committed to excellence and have a passion to succeed. Friedrich is a company that is respected for a high degree of integrity and professionalism, as well as being recognized as the best in the business. The Friedrich name is synonymous with quality... shaped by the spirit that launched this company over a century ago.

Friedrich is known for manufacturing some of the world's most durable air conditioners. You won't believe some of the places you'll find them. Friedrich air conditioners are made from higher grade materials and components that delivery dependable operation for years. But don't take their word for it. Some of their customers are business that operate in harsh environments where equipment just has to work. Period. Oil companies rely on them to cool offshort oil rigs, and they can be found on military bases and in government offices all over the world. Friedrich air conditioners are in use at Northrop Grumman, Eastman Chemical and the Kennedy Space Center, just to name a few. If they can handle their jobs, just think how well they will perform in your home. Available at Designer Appliances.

Built Tough
The WallMaster series is built to be extra durable. Made with heavy gauge steel, it will stand the test of time. Solid sleeve top keeps out falling debris which can obstruct the fan and prevent it from turning. And, Friedrich room air conditioners feature aluminum endplates which won't rust like their competitors'. Larger, commercial grade fan motor runs at lower temperatures than smaller motors which protects against overheating and contributes to a longer life span for the product.


  • WallMaster Electric Heat Features
    • Environmentally friendly R-410A refrigerant used in all models.
    • Commercial Grade Thru-the-wall Electric Heat models mount flush with exterior walls to create a sleek appearance and unobstructed window views.
    • May be installed almost anywhere on a wall for optimal placement.
    • Solid side chassis allows for installation into thicker walls than standard room air conditioners.
    • Exact fit for Fedders A sleeves. Fits Fedders B sleeves with kit.
    • The most Energy Efficient Solid-side Air Conditioner available.
    • MoneySaver setting saves energy by turning the fan on and off with the compressor.
    • The Smart Fan feature adjusts the fan speed to maintain the desired temperature.
    • Easy-to-clean filter.
    • 3 Speed Fan.
    • Auto memory backup.
    • Easy-to-reach top-mounted controls.
    • Sleeves sold and shipped separately.
  • Digital Control Features
    • Remote control.
    • 24 hour programmable timer.
    • Money Saver setting saves energy by cycling the fan with the compressor.
    • Smart Fan auto-adjusts fan speed to maintain desired temperature.
    • Auto-memory backup saves setting should power be interrupted.
    • Available at Designer Appliances.
    • www.designerappliances.com


Cooling Capacity 15,000/14,600 BTU
Cooling Amps 8.3/8.2A
Circuit Breaker Rating 250V - 20A
Cooling Watts 1756/1718 Watts
EER 8.5/8.5
Volts 230/208V
Room Air Circulation 290 CFM
Plug Face NEMA # 6-20P
Moisture Removal 4.2 Pints/Hour
Heating Watts 3550/2950 Watts
Heating Capacity 11,000/9,100 BTU
Heating Amps 16.0/14.7A
Dimensions and Weights
Width 26 1/2"
Thru-the-Wall Max. Depth 15 5/16"
Thru-the-Wall Finished Hole Width 27 1/4"
Thru-the-Wall Finished Hole Height 17 1/4"
Sleeve Width 27"
Sleeve Height 16 3/4"
Net Weight 116 Lbs.
Min. Extension Outside 9/16"
Min. Extension Into Room 7 1/2"
Height 16 3/4"
Depth with Front 23"
Depth 15 3/4"
