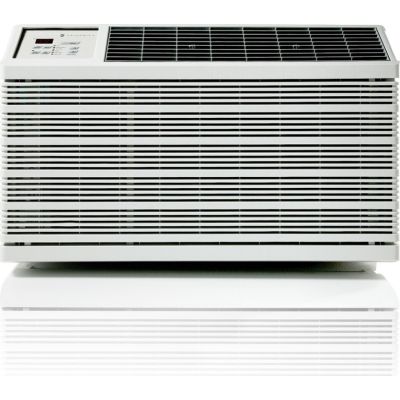

Friedrich WS08C10 WallMaster 7,800 BTU Thru-The-Wall Air Conditioner

discontinued
There is a newer model of this item:

Need help finding a replacement?

John Carey
About the Friedrich WS08C10
  • 9.9 Energy Efficiency Ratio
  • R-410A Refrigerant
  • Auto Memory Backup
  • Remote Control
Brand:
Installation:
Wall
BTU:
7,800 BTU
Fan Speeds:
3 Speeds
Max CFM:
250 CFM
Remote Included?:
Yes
Heat:
No
Series:
WallMaster
Height:
15 3/4"
Width:
26 1/2"
Depth:
21"
Volts:
115 Volts
Amps:
7.1 Amps
Plug Type:
5-15P
Energy Star Rated:
Yes
EER:
9.9
Since its founding in 1883, Friedrich Air Conditioning Co. has had one manufacturing standard - quality without compromise. Over the years, the company's products have changed, but the commitment to quality has endured.

Today, the fundamental direction of Friedrich is to be the top manufacturer of specialty air treatment products for the worldwide market. Moving the company forward are dedicated employees who are committed to excellence and have a passion to succeed. Friedrich is a company that is respected for a high degree of integrity and professionalism, as well as being recognized as the best in the business. The Friedrich name is synonymous with quality... shaped by the spirit that launched this company over a century ago. Available at Designer Appliances.

Friedrich is known for manufacturing some of the world's most durable air conditioners. You won't believe some of the places you'll find them. Friedrich air conditioners are made from higher grade materials and components that delivery dependable operation for years. But don't take their word for it. Some of their customers are business that operate in harsh environments where equipment just has to work. Period. Oil companies rely on them to cool offshort oil rigs, and they can be found on military bases and in government offices all over the world. Friedrich air conditioners are in use at Northrop Grumman, Eastman Chemical and the Kennedy Space Center, just to name a few. If they can handle their jobs, just think how well they will perform in your home.
Key Features
IMPORTANT NOTE: Sleeves are sold and shipped separately to accommodate new construction and replacement requirements.
  • Available at Designer Appliances.
  • www.designerappliances.com
Environmentally Friendly R-410A Refrigerant Used In All Models
Programmable 24-Hour Timer with Remote
  • Lets you program on/off times and memory back-up saves settings if power is interrupted.
Exact Fit For Fedders A Sleeves. Fits Fedders B Sleeves with Kit.
Solid Side Chassis
  • Allows for installation into thicker walls than standard room air conditioners.
The Most Energy Efficient Solid-Side Air Conditioner Available
MoneySaver Setting
  • Saves energy by turning the fan on and off with the compressor.
The Smart Fan Feature
  • Adjusts the fan speed to maintain the desired temperature.
Easy-to-Clean Filter
3 Speed Fan
Auto Memory Backup
Easy-to-Reach Top-Mounted Controls
  • Available at Designer Appliances.
  • www.designerappliances.com
Specifications
Dimensions
Width
26 1/2 Inch
Depth
21 Inch
Height
15 3/4 Inch
Circuit Rating/Breaker
Power Cord Length
6 Ft.
Plug Face (NEMA#)
5-15P
Circuit Rating Breaker or T-D Fuse
125V - 15A
Dimensions
WSE Sleeve Width
27"
WSE Sleeve Min. Extension Outside
9/16"
WSE Sleeve Height
16 3/4"
WSE Sleeve Depth with Front
24 1/4"
WSE Sleeve Depth
16 3/4"
Thru-the-Wall Finished Hole Width
27 1/4"
Thru-the-Wall Finished Hole Height
17 1/4"
Thru-the-Wall Finished Hole Depth
15 5/16" Max.
Shipping Weight
97.0 Lbs.
Net Weight
93.0 Lbs.
Chassis Width with Front
27 1/2"
Chassis Width
26 1/2"
Chassis Min. Extension Into Room with Front
7 1/2"
Chassis Height with Front
17 1/4"
Chassis Height
15 3/4"
Chassis Depth with Front
23 1/4"
Chassis Depth
21"
Specifications
CEER
10.2
Cooling Amps
6.4 Amps
Cooling Capacity
8,000 BTU
Volts Rated
115 Volts
Sleeve Type
WSE
Room Side Air Circulation
250 CFM
Moisture Removal
1.8 Pints/Hr.
Heating Watts
N/A
Heating Capacity
N/A
Heating Amps
N/A
Energy Efficiency Ratio (ERR)
10.4
Cooling Watts
769 Watts
Features
Wall Sleeve Included
No
Type
Wall
Energy Efficiency Rating
9.9
Cooling Capacity (BTU)
7,800 BTU
Control Type
Digital
Chassis Type
Thru the Wall
CFM Room Circulation
250 CFM
Fan Speeds
3 Speeds
Heat
No
Remote Control Included
Yes
PTAC
No
Maximum Cooling Watts
788 Watts
Maximum Cooling Amps
7.1 Amps
Technical Details
Voltage
115 Volts
Energy Star Rated
Yes
ADA Compliant
No
Plug Type
5-15P
Product Information
Brand
Friedrich
Series
WallMaster
Model
WS08C10
General
Manufacturer
Friedrich
