main feature
Friedrich
Model#: WS10C10

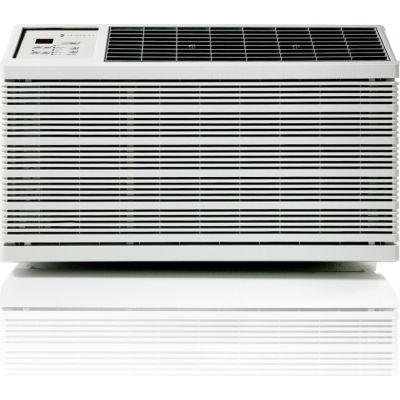

WS10C10 | Friedrich WallMaster 9,700 BTU Thru-The-Wall Air Conditioner

  • 9,700 BTU Through-the-Wall Air Conditioner with 9.4 Energy Efficiency Ratio
  • R-410A Refrigerant
  • Money Saver Setting and Remote Control
Authorized Friedrich Dealer
Why don't we show the price?

Retailers like Designer Appliances have the legal right to set their own prices independently, but some manufacturers place restrictions on how those prices may be communicated. Because our price on this item is lower than the manufacturer's "minimum advertised price," the manufacturer does not allow us to show you our price until you take further action, such as placing the item in your shopping cart, or in some cases, proceeding to the final checkout stage. The steps required depend on the details of the manufacturer's minimum advertised price policy. Taking these steps allows Designer Appliances to show you our price consistent with our goal of always offering you the lowest possible prices on the widest selection of products.

This won't require you to purchase the product. You can easily remove it from your cart if you decide not to buy it.

We realize that this is an inconvenience and are regularly working to educate manufacturers on how their policies impact our customers. We welcome your comments and suggestions.

Why don't we show the price?

Retailers like Designer Appliances have the legal right to set their own prices independently, but some manufacturers place restrictions on how those prices may be communicated.

To request a quote on this product please call us at 888-714-4938 or submit a quote request. This won't require you to purchase the product.

We realize that this is an inconvenience and are regularly working to educate manufacturers on how their policies impact our customers. We welcome your comments and suggestions.

Discontinued
Replaced by Friedrich WS10C10D

Manuals & Downloads
Product Specifications
InstallationWall
BTU9,700 BTU
Fan Speeds3 Speeds
Max CFM260 CFM
Remote Included?
Heat
Dimensions
Height15 3/4"
Width26 1/2"
Depth22"
Power Requirements
Volts115 Volts
Amps8.2 Amps
Plug Type5-15P
Energy Star Rated
EER9.8
Accessories

Add
Friedrich AG
Architectural Grille
$76.99

Add
Friedrich BAK
Baffle Adapter Kit
$64.99

Add
Friedrich DK
Drain Kit
$27.99

Add
Friedrich IDK
Internal Drain Kit
$34.49

Add
Friedrich WSE
Wall sleeve for WallMaster commercial grade through the wall air conditioners
$95.49

PRODUCT DETAILS

Availability: Call (888) 714-4938

Since its founding in 1883, Friedrich Air Conditioning Co. has had one manufacturing standard - quality without compromise. Over the years, the company's products have changed, but the commitment to quality has endured.

Today, the fundamental direction of Friedrich is to be the top manufacturer of specialty air treatment products for the worldwide market. Moving the company forward are dedicated employees who are committed to excellence and have a passion to succeed. Friedrich is a company that is respected for a high degree of integrity and professionalism, as well as being recognized as the best in the business. The Friedrich name is synonymous with quality... shaped by the spirit that launched this company over a century ago. Available at Designer Appliances.

Friedrich is known for manufacturing some of the world's most durable air conditioners. You won't believe some of the places you'll find them. Friedrich air conditioners are made from higher grade materials and components that delivery dependable operation for years. But don't take their word for it. Some of their customers are business that operate in harsh environments where equipment just has to work. Period. Oil companies rely on them to cool offshort oil rigs, and they can be found on military bases and in government offices all over the world. Friedrich air conditioners are in use at Northrop Grumman, Eastman Chemical and the Kennedy Space Center, just to name a few. If they can handle their jobs, just think how well they will perform in your home.

FEATURES

  • Comfort and Durability
    • Easy-to-reach top-mount controls.
    • Remote control.
    • 24-hour programmable timer.
    • Smart Fan auto-adjusts fan speed to maintain desired temperature.
    • 3-speed fan.
    • Auto restart.
    • Electronic defrost control.
    • Rotary compressors provide quiet, dependable performance.
    • Premium stamped exterior grille.
    • Rifled copper tubing.
    • Impact-resistant front cover.
  • Sound Reduction Technology
    • Vibration-isolating design and components.
    • Dense blower insulation.
  • Energy Management and Compliance
    • MoneySaver setting saves money by operating the fan only when needed.
    • High-tech fins with sine wave lanced louvers increase energy efficiency by increasing the surface area for heat exchange.
  • Safety and Security
    • Insect barrier.
    • Premium, stamped galvanized steel grille screws securely to the powder-coated galvanized steel sleeve for kick-in entry prevention (WSD sleeve sold and shipped separately).
  • Health and IAQ
    • Washable, antimicrobial filter.
  • Maintenance and Installation
    • Mounts flush with the exterior wall for a neat appearance.
    • Perfect fit for 27"W x 16-3/4"H x 16-3/4"D sleeves, including Friedrich WSD sleeve and Fedders A sleeve.
    • Baffle Adapter Kit available to allow installations in Fedders 19-3/4" B sleeves.
    • Angled air discharge with reversible louver for an additional air-flow option.
    • Mounts flush with exterior wall or closer to the interior wall for a slimmer indoor appearance.
    • Optional architectural grille enhances building exterior.
    • No side vents allows installations in (exterior) walls as thick as 15-15/16".
    • Optional architectural grille, drain kit, interior drain kit, sub base and Baffle Adapter Kit.
    • Available at Designer Appliances.
    • www.designerappliances.com

SPECIFICATIONS

Specifications
Cooling Watts 990 Watts
Cooling Capacity 9,700 BTU
Cooling Amps 8.2 Amps
Energy Efficiency Ratio (ERR) 9.8
Heating Amps N/A
Heating Capacity N/A
Volts Rated 115 Volts
Sleeve Type WSE
Shipping Weight 107.0 Lbs.
Room Side Air Circulation 260 CFM
Net Weight 103.0 Lbs.
Moisture Removal 2.4 Pints/Hr.
Heating Watts N/A
Circuit Rating/Breaker
Power Cord Length 6 Ft.
Plug Face (NEMA#) 5-15P
Circuit Rating Breaker or T-D Fuse 125V - 15A
Dimensions
WSE Sleeve Width 27"
WSE Sleeve Min. Extension Outside 9/16"
WSE Sleeve Min. Extension Into Room 7 1/2"
WSE Sleeve Height 16 3/4"
WSE Sleeve Depth with Front 23"
WSE Sleeve Depth 16 3/4"
Thru-the-Wall Finished Hole Width 27 1/4"
Thru-the-Wall Finished Hole Height 17 1/4"
Thru-the-Wall Finished Hole Depth 15 5/16" Max.
Chassis Width 26 1/2"
Chassis Height 15 3/4"
Chassis Depth with Front 22"
Chassis Depth 21"
