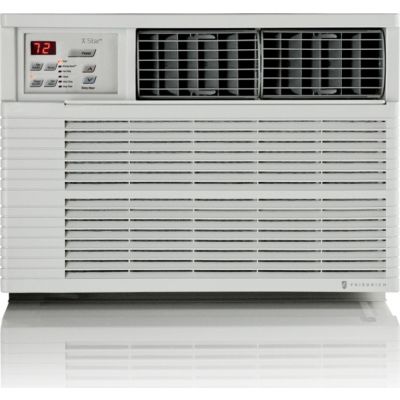

About the Friedrich XQ06M10A
- R-410A Refrigerant
- 11.0 Energy Efficiency Ratio
- 3 Cooling/Fan-Only Speeds
- Remote Comfortwatch Technology
Brand:
Installation:
Window / Wall
BTU:
5,800 BTU
Fan Speeds:
3 Speeds
Max CFM:
175 CFM
Remote Included?:
Yes
Heat:
No
Series:
X-Star
Height:
14"
Width:
19 3/4"
Depth:
21 3/8"
Volts:
115 Volts
Amps:
4.9 Amps
Plug Type:
5-15P
Energy Star Rated:
Yes
EER:
11
Today, the fundamental direction of Friedrich is to be the top manufacturer of specialty air treatment products for the worldwide market. Moving the company forward are dedicated employees who are committed to excellence and have a passion to succeed. Friedrich is a company that is respected for a high degree of integrity and professionalism, as well as being recognized as the best in the business. The Friedrich name is synonymous with quality... shaped by the spirit that launched this company over a century ago. Available at Designer Appliances.
XQ. Programmable, commercial grade quality models with exceptional energy efficiency.
EQ. Their compact heat/cool model with mechanical controls.
The X Star line is their compact, premium line of commercial grade room air conditioners. XQ is programmable with remote. Features include a 24 hour timer, auto-adjusting Smart Fan and a Money Saver setting that reduces energy usage and saves money. (Features not available on all models).
EQ is ideal for supplemental heating and cooling.
Key Features
Comfort and Convenience
- 24 hr. timer lets you program on/off times.
- 3 cooling speeds, plus fan only setting.
- Smart Fan adjusts fan speed to maintain desired temperature.
- Comfortwatch technology samples the air to more accurately maintain the set temperature.
- Money Saver setting saves money by conserving energy.
- Ultraquiet operation.
- 8-way air flow control.
- Auto restart saves settings if power is interrupted.
- Available at Designer Appliances.
- www.designerappliances.com
Health
- Washable antimicrobial filter for protection against fungal and bacterial growth.
Safety Features
- EntryGard anti-intrusion protection.
- Insect barrier.
Installation
- Slide-out chassis.
- Install in window or thru-the-wall.
- Heavy duty installation hardware.
- Heavy duty side curtains reduce exterior noise/light.
- Power cord can run either left or right out of the side of the unit front.
Specifications
Specifications
Net Weight
72.0 Lbs.
Shipping Weight
85.0 Lbs.
Volts Rated
115 Volts
Cooling Amps
4.7 Amps
Cooling Watts
509 Watts
Heating Amps
N/A
Heating Watts
N/A
COP
N/A
Energy Efficiency Ratio (ERR)
11.2
Moisture Removal
0.5 Pints/Hr.
Room Side Air Circulation
190 CFM
Sleeve Type
Q
Heating Capacity
N/A
Cooling Capacity
5,700 BTU
Features
Fan Speeds
3 Speeds
Window Type
Standard
PTAC
No
Remote Control Included
Yes
Control Type
Digital
Energy Efficiency Rating
11
CFM Room Circulation
175 CFM
Heat
No
Maximum Cooling Watts
500 Watts
Maximum Cooling Amps
4.9 Amps
Cooling Capacity (BTU)
5,800 BTU
Wall Sleeve Included
No
Chassis Type
Slide Out
Type
Window / Wall
Technical Details
Voltage
115 Volts
Plug Type
5-15P
ADA Compliant
No
CEE Rating
Not Available
Energy Star Rated
Yes
Dimensions
Overall Width
19 3/4"
In-Wall Finished Hole Height
14 3/4"
In-Wall Finished Hole Depth
8 1/2" Max.
In-Wall Finished Hole Width
20"
Window Width
22" Min. - 42" Max.
Min. Extension Outside
10 3/4"
Min. Extension Into Room
5 1/2"
Shell Depth To Louvers
8 1/2"
Overall Height
14 1/2"
Overall Depth with Front
21 3/8"
Product Information
Model
XQ06M10A
Brand
Friedrich
Series
X-Star
Circuit Rating/Breaker
Circuit Rating Breaker or T-D Fuse
125V - 15A
Plug Face (NEMA#)
5-15P
Power Cord Length
6 Ft.
Dimensions
Height
14 Inch
Depth
21 3/8 Inch
Width
19 3/4 Inch
General
Manufacturer
Friedrich
