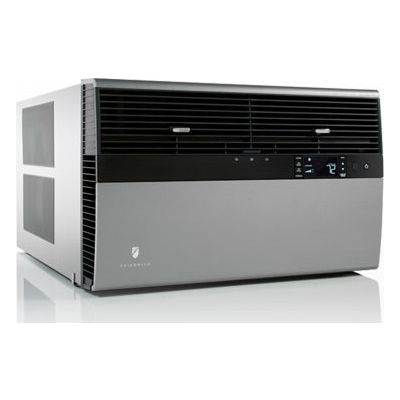

About the Friedrich YL24M35
- 2,610 Watt Heat Pump
- R-410A Refrigerant
- 9.7 Energy Efficiency Ratio
- LCD Panel/Remote Control
Brand:
Installation:
Window / Wall
BTU:
24,000 BTU
Fan Speeds:
3 Speeds
Max CFM:
600 CFM
Remote Included?:
Yes
Heat:
Heat Pump
Series:
Kuhl Plus
Height:
20 3/16"
Width:
28"
Depth:
35 1/2"
Volts:
230/208 Volts
Amps:
12 Amps
Plug Type:
6-30P
Energy Star Rated:
Yes
EER:
9.7
Today, the fundamental direction of Friedrich is to be the top manufacturer of specialty air treatment products for the worldwide market. Moving the company forward are dedicated employees who are committed to excellence and have a passion to succeed. Friedrich is a company that is respected for a high degree of integrity and professionalism, as well as being recognized as the best in the business. The Friedrich name is synonymous with quality... shaped by the spirit that launched this company over a century ago. Available at Designer Appliances.
Comfort has a bold new look.
An entirely new, satin silver front with illuminated touch controls places Kühl and Kühl + Heat/Cool at the forefront of room air design. And now you can personalize your space with optional designer color fronts. New, advanced digital controls intuitively provide comfort, convenience and ease of use and allow for a range of programmability previously only associated with high-end central air systems.
At the heart of each unit, you'll find the durable components and heavy duty construction that you expect from Friedrich. Engineering details like heavy gauge steel, rifled copper tubing, high tech aluminum fins with sine wave technology, aluminum end plates that reduce corrosion, totally-enclosed commercial grade motors, high efficiency compressors, vibration absorbing technology and insulated air plenums. All details that ensure years of reliable performance and quiet operation.
Key Features
Comfort and Convenience
- Commercial grade durability.
- Optional wired wall thermostat.
- Built-in programmable 7 day thermostat.
- 24 hr. timer.
- 3 cooling, heating and fan-only speeds.
- Automatic temperature and fan speed adjustment.
- Comfortwatch technology samples the air to more accurately maintain the set temperature.
- 8-way air flow control.
- Auto-changeover from cool to heat, or heat to cool, to maintain desired temperature.
- Temperature readout can alternately display set temperature, room temperature and outdoor temperature, or digital clock as selected.
- Optional control panel lockout.
- Scratch resistant cabinet.
- LCD panel auto dims if not in use.
- Nightlight mode.
- 7 yr. battery provides back up system that saves settings if power is interrupted.
- Available at Designer Appliances.
- www.designerappliances.com
Superior Sound Reduction Technology
- Steel inner wall and extra dense insulation materials block outdoor noise.
- Vibration isolating design and components diminish traditional operating noise.
- Precision engineering maximizes air flow while delivering ultraquiet operation.
Superior Filtration
- Superior fresh air intake and stale air exhaust vent.
- Washable, antimicrobial air filter.
- Optional premium filter when used in conjuction with standard filter provides superior air filtration with ratings as high as MERV 6, while also adsorbing odors and reducing ozone and VOCs.
- Hinged door for easy filter access for easier maintenance.
- Electronic maintenance indicators include check filter reminder and error code storage.
Earth Friendly
- Auto Fan mode saves money by conserving energy.
- Energy Star qualified.
- Environmentally-friendly R-410A refrigerant.
- Recyclable packaging.
- RoHS compliant.
Safety and Security Features
- EntryGard anti-intrusion protection-steel retaining wire secures the chassis to the sleeve to deter 'kick-in' intrusion.
- Electrical current protected powercord.
- Insect barrier.
- Protective rear grille.
Installation Features
- Install in a window or thru the-wall.
- Slide-out chassis for more permanent installation and easier access for maintenance.
- Optional heavy duty window installation hardware.
- Rugged hardboard side panels for a more permanent installation.
- Power cord can run either left or right.
- Firm grip handles for easier chassis installation and removal.
- Front cover attaches easily and securely. Nut driver included.
Specifications
Features
Window Type
Standard
Wall Sleeve Included
No
Type
Window / Wall
Energy Efficiency Rating
9.7
Cooling Capacity (BTU)
24,000 BTU
Control Type
Digital
Chassis Type
Slide Out
CFM Room Circulation
600 CFM
Fan Speeds
3 Speeds
Heat
Heat Pump
Remote Control Included
Yes
PTAC
No
Maximum Heating Watts
2,610 Watts
Maximum Heating Amps
12.6 Amps
Maximum Cooling Watts
2,474 Watts
Maximum Cooling Amps
12 Amps
Heating Capacity (BTU)
23,500 BTU
Specifications
Cooling Amps
11.1/12.0 Amps
Cooling Capacity
24,000/23,600 BTU
Cooling Watts
2,474/2,433 Watts
COP
2.6
Volts Rated
230/208 Volts
Sleeve Type
L
Room Side Air Circulation
600 CFM
Moisture Removal
7.0 Pints/Hr.
Heating Watts
2,610/2,575 Watts
Heating Capacity
23,500/23,200 BTU
Heating Amps
12.2/12.6 Amps
Energy Efficiency Ratio (ERR)
9.7/9.7
Circuit Rating/Breaker
Power Cord Length
4 Ft.
Plug Face (NEMA#)
6-30P
Circuit Rating Breaker or T-D Fuse
250V - 30A
Dimensions and Weights
Window Width - Min.
29 7/8"
Window Width - Max.
42"
Width
28"
Shell Depth to Louvers
16 1/2"
Net Weight
198 Lbs.
Min. Extension Outside
18 15/16"
Min. Extension Into Room
5 3/8"
Height
20 3/16"
Depth with Front
35 1/2"
Dimensions
Width
28 Inch
Depth
35 1/2 Inch
Height
20 3/16 Inch
Technical Details
Voltage
230/208 Volts
CEE Rating
Not Available
ADA Compliant
No
Energy Star Rated
Yes
Plug Type
6-30P
Thru-the-Wall Installation Finished Hole
Width
28 1/4"
Max. Depth
15 1/8"
Height
20 3/8"
Product Information
Brand
Friedrich
Series
Kuhl Plus
Model
YL24M35
General
Manufacturer
Friedrich
