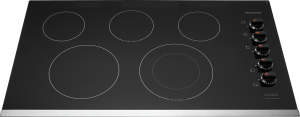

About the Frigidaire FFEC3625LW
- 5 Cooking Zones
- Ready-Select Controls
- Extra Large 12" Element
- Spill Saver Cooktop
Brand:
Cooktop Type:
Cooktop
Finish:
White
Fuel Type:
Electric
Style:
Smoothtop
Width:
36 3/4"
Height:
2 3/4"
Depth:
21 1/2"
Cutout Width:
36 1/8"
Cutout Height:
5"
Cutout Depth:
20 1/2"
Volts:
240/208 Volts
Amps:
40
Through meaningful innovations, Frigidaire has humanized their technology to create appliance designs that are uncluttered, controls that are intuitive, and features that are as useful as they are smart. This 36" electric cooktop is approved for installation above any Frigidaire Single Electric Wall Oven. Get yours today at Designer Appliances.
Key Features
Features
Ready-Select Controls
- Easily select options with the touch of a button
Extra-Large Element
- Our extra-large 12" element gives you space for larger pots and pans
Approved Over Frigidaire Electric Wall Ovens
- Cooktops are approved for installation above any of our Single Electric Wall Ovens
Ceramic Glass Cooktop
- For a more beautiful cooktop that's easy to clean
Spill Saver Cooktop
- Cooktop contains your spillovers for easier clean up
FFEC3625LW Installation Instructions
Specifications
Product Information
Warranty Terms
1 year ?Frigidaire Appliances are backed with a one year warranty. For additional information visit https://www.frigidaire.com/en/warranty/warranty-information
UPC
057112990279
Brand
Frigidaire
Model
FFEC3625LW
Specifications
Minimum Circuit Required
40 Amps
Connected Load (kW Rating) @ 240/208 Volts
7.1/5.6 kW
Approved For Electric Single Wall Oven Combination Installatio
Yes
Amps @ 240/208 Volts
31.3/27.0 Amps
Power Supply Connection Location
Right Rear
Voltage Rating
240/208V / 60Hz
Dimensions and Weights
Shipping Weight (Approx.)
65.0 Lbs.
Overall Width
36 3/4"
Overall Height
3"
Overall Depth
21 3/8"
Cutout Width
35 7/8" Min. - 36 1/8" Max.
Cutout Height
5"
Cutout Depth
20 1/4" Min. - 20 1/2" Max.
Burner Output
Set 5 QTY
1
Set 5 Output
100
Set 4 QTY
1
Set 4 Output
1200
Set 3 QTY
1
Set 3 Output
1500
Set 2 QTY
1
Set 2 Output
2500
Burner 5 Output
100
Burner 4 Output
1200
Burner 3 Output
1500
Burner 2 Output
2500
Burner 1 Output
2700
Set 1 QTY
1
Set 1 Output
2700
Grill
No
Griddle
No
Features
Control Location
Right Side
Surface Type
Black Ceramic Glass
Right Rear Element
6" - 1,200 Watts
Right Front Element
9" - 2,500 Watts
Left Rear Element
9" - 2,500 Watts
Left Front Element
6" - 1,200 Watts
Knob Type
Plastic
Keep Warm Zone
6" - 100 Watts
Hot Surface Indicator
Yes
Controls
Ready-Select
Technical Details
Voltage
240/208 Volts
Star-K Certified
No
Amps
40
ADA Compliant
No
Modules Required
No
LP Conversion
No
Ignition Type
Electronic
Appearance
Type
Drop-In
Trim Color
White
Surface Color
White
Style
Smoothtop
Color
White
Cooktop
Cooktop
Number of Burners
5
Fuel Type
Electric
Function
Burners / Elements
5
Burners
5
Control Type
Knobs
Sabbath Mode
No
Induction
No
Hot Surface Indicator Light
Yes
Downdraft Venting
No
Dimensions
Actual Width
36 3/4 Inch
Actual Height
2 3/4 Inch
Cutout Depth
20 1/2 Inch
Cutout Width
36 1/8 Inch
Cutout Height
5"
Actual Depth
21 1/2 Inch
General
Manufacturer
Frigidaire
