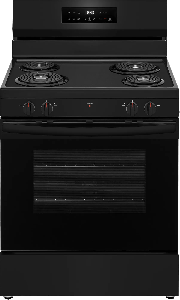

About the Frigidaire FFEF3013LB
- 4.8 cu. ft. Capacity
- 4 Radiant Elements
- SpaceWise Expandable Element
- Ready-Select Controls
- Store-More Storage Drawer
Brand:
Style:
Freestanding
Width:
29 7/8"
Height:
47"
Depth:
28 1/2"
Capacity:
4.8 Cu. Ft.
Burners:
4
Convection:
No
Self Clean:
No
Griddle:
No
Grill:
No
Fuel Type:
Electric
Volts:
240/208 Volts
Amps:
40
Through meaningful innovations, Frigidaire has humanized their technology to create appliance designs that are uncluttered, controls that are intuitive, and features that are as useful as they are smart. This 30" freestanding electric range features a manual clean function and the Store-More storage drawer. Let's not forget about the Ready-Select controls that allow you to easily select options with the touch of a button. Get yours today at Designer Appliances.
Key Features
Ready-Select Controls
- Easily select options with the touch of a button
SpaceWise Expandable Elements
- Flexible elements expand to your cooking needs
Store-More Storage Drawer
- The convenient drawer gives you extra storage space in your kitchen
Timed Cook Option
Electronic Kitchen Timer
Manual Clean Oven
Extra-Large Window
- The extra-large oven window lets you easily see what's inside
FFEF3013LB Installation Instructions
Specifications
Features
Main Oven Cleaning System
Manual Clean
Convection System
No
Exterior Finish (Side Panels)
Color-Coordinated (W/B)
Handle Design
Color-Coordinated (W/B)
Exterior Door Finish
Color-Coordinated (W/B)
Window
Extra-Large
Surface Type
Black Ceramic Glass
Oven Control/Timing System
Ready-Select
Colors
Silver Mist (M)/White (W)/Black (B)
Nominal Width
30"
Series
Frigidaire
Drawer Functionality
Storage
Dimensions & Weights
Approximate Shipping Weight
138 lbs.
Oven Interior Height
21"
Oven Interior Depth
19 1/8"
Oven Interior Width
24 3/8"
Cutout Height
36" standard
Cutout Depth
24" min.
Cutout Width
30" min.
Product Height
47"
Product Depth
28 1/2"
Product Width
29 7/8"
Product Depth with Door Open 90
48 3/8"
Appearance
Fuel Type
Electric
Style
Freestanding
Color
Black
Cooktop
Smoothtop
Stainless Steel Handle
No
Viewing Window
Yes
Drawer
Storage
Clock
Yes
Dimensions
Width
29 7/8 Inch
Depth
28 1/2 Inch
Height
47 Inch
Interior Width
24 3/8 Inch
Interior Depth
19 1/8 Inch
Interior Height
21 Inch
Burner Output
Set 1 QTY
2
Set 1 Output
2500
Set 2 QTY
2
Set 2 Output
1200
Burner 1 Output
2500
Burner 2 Output
1200
Cooktop Features
Burners / Elements
4
Cooktop Control Type
Knobs
Downdraft Ventilation
No
Modules Required
No
Hot Surface Indicator Light
No
Induction
No
Grill
No
Griddle
No
Oven Features
Primary Oven Capacity
4.8 Cu. Ft.
Oven Control Type
Touchpad
Digital Temperature Display
Yes
Timer
Yes
Convection
No
Self-Cleaning
No
Delay Bake
No
Proofing
No
Sabbath Mode
No
Broiler Element Location
Top
Temperature Probe
No
Interior Oven Light
Yes
Racks
2
Removable Door
No
Broiler Pan Included
No
Proof Mode
No
Technical Details
Star-K Certified
No
ADA Compliant
No
Oven Wattage
3,000
Amps
40
Voltage
240/208 Volts
Oven Controls
Bake/Broil
Yes/Low and High
Delay Bake
No
Rapid/Quick Clean Option
No
Delay Clean
No
Kitchen Timer/Timed Cook Option
Yes/Yes
Auto Oven Shutoff
No
Cooktop Features
Right Front Element
SpaceWise Expandable 6"/9" - 2,500 Watts
Right Rear Element
6" - 1,200 Watts
Left Front Element
9" - 2,500 Watts
Left Rear Element
6" - 1,200 Watts
Bridge Element
N/A
Center Element
N/A
Coil Cooktop/Drip Bowls
N/A
Oven Features
Capacity
4.8 cu. ft.
Oven Light
1
Hidden Bake Element
No
Rack Configuration
2 Standard
Baking System
N/A
Broiling System
Vari-Broil Hi/Lo
Bake/Broil Elements
2,600/3,000 Watts
Certifications
A.D.A. Compliant
No
Specifications
Power Supply Connection Location
Middle Bottom Rear
Voltage Rating
240V / 208V / 60 Hz
Connected Load (kW Rating) @ 240/208 Volts
11.5/8.5
Minimum Circuit Required
40 Amps
Product Information
Brand
Frigidaire
Model
FFEF3013LB
UPC
012505502286
Warranty Terms
1 year ?Frigidaire Appliances are backed with a one year warranty. For additional information visit https://www.frigidaire.com/en/warranty/warranty-information
