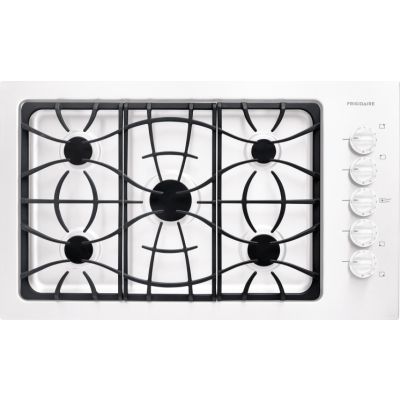

About the Frigidaire FFGC3625LW
- 5 Sealed Burners
- Cast Iron Continuous Grates
- Low Simmer Burner
- Ready-Select Controls
Brand:
Cooktop Type:
Cooktop
Finish:
White
Fuel Type:
Gas
Style:
Sealed Burner
Width:
36"
Height:
5"
Depth:
21 3/4"
Cutout Width:
34 1/4"
Cutout Height:
8"
Cutout Depth:
19 3/4"
Volts:
120 Volts
Amps:
20
Through meaningful innovations, Frigidaire has humanized their technology to create appliance designs that are uncluttered, controls that are intuitive, and features that are as useful as they are smart. This 36" gas cooktop features cast iron, continuous grating and Ready-Select controls that allow you to easily select options with the touch of a button. Get yours today at Designer Appliances.
Key Features
36" Gas Cooktop
Ready-Select Controls
- Easily select options with the touch of a button
Low Simmer Burner
- Perfect for delicate foods and sauces
FFGC3625LW Installation Instructions
Specifications
Technical Details
Voltage
120 Volts
Star-K Certified
No
Amps
20
ADA Compliant
No
Modules Required
No
LP Conversion
No
Ignition Type
Electronic
Specifications:
Controls
Express-Select
Control Location
Right Side
Color
White
Model
FFGC3625LW
Power Type
Gas
Product Type
Gas cooktop
Size
36"
Shipping Weight (approx.)
60 lbs
Product Weight
50 lbs
Cooktop Configuration
Surface Type
Stainless deep drawn
Rear Right Burner (BTU)
5,000
Rear Left Burner (BTU)
9,500
Grates
Cast Iron
Front Right Burner (BTU)
9,500
Front Left Burner (BTU)
9,500
Center Burner (BTU)
15000
Dimensions
Width
36"
Height
5"
Exterior Depth (to Front Corner)
21 3/4"
Depth
21 3/4"
Burner Output
Set 3 QTY
1
Set 3 Output
5000
Set 2 QTY
3
Set 2 Output
9500
Burner 3 Output
5000
Burner 2 Output
9500
Burner 1 Output
15000
Set 1 QTY
1
Set 1 Output
15000
Grill
No
Griddle
No
Product Information
UPC
057112104300
Brand
Frigidaire
Model
FFGC3625LW
Appearance
Type
Drop-In
Trim Color
White
Surface Color
White
Style
Sealed Burner
Continuous Grates
Yes
Color
White
Cooktop
Cooktop
Number of Burners
5
Fuel Type
Gas
Cut-Out Dimensions
Voltage Rating
120V/60Hz
Power Supply Location
Rear Right
Cut-out Width
33 7/8" - 34 1/4"
Cut-out Height
8"
Cut-out Depth
19 1/4" - 19 3/4"
Amps (240/208 Volts)
1
Function
Burners / Elements
5
Burners
5
Control Type
Knobs
Sabbath Mode
No
Hot Surface Indicator Light
No
Downdraft Venting
No
Dimensions
Actual Width
36 Inch
Actual Height
5 Inch
Cutout Depth
19 3/4 Inch
Cutout Width
34 1/4 Inch
Cutout Height
8"
Actual Depth
21 3/4 Inch
General
Manufacturer
Frigidaire
