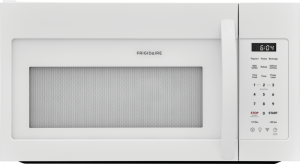

Frigidaire FFMV162LW

Download Product Manuals

Owner's GuideWiring DiagramInstallation InstructionsSpecifications Sheet

Product Details

Manufacturer	Frigidaire
Item #	FFMV162LW
Condition	Brand New Item - We are an Authorized Online Frigidaire Dealer
In Stock?	Yes

Features

• One-Touch Options
  • The microwave feature easy-to-use one touch buttons so you can cook baked potatoes, popcorn or even add 30 seconds with the touch of a button.
• Fits-More Capacity
  • Extra large microwave provides 1.6 cu. ft. of cooking space and will hold almost any dish - even a 13x9 baking dish.
• Ready-Select Controls
  • Easily select options with the touch of a button.
• Two Speed Ventilation
  • Over-the-range microwave doubles as a hood with two fan speeds.
• Extra-Large 13-1/2" Diameter Glass Turntable
• Auto-Reheat Options
• Control Lock
• Multiple Stage Cooking Option
• Electronic Clock/Timer
• Charcoal Vent Filters (Dishwasher Safe)
• Auto-start Heat Sensor Vent Fan
• Ductless Vent Installation Option Included

Product Description

When you select a home appliance from Frigidaire, you've chosen a product of exceptional performance, convenience and style; an appliance that has been designed to work in harmony with the way you live. Available at Designer Appliances.

Frigidaire, one of the leaders in home appliances; offers superior products and service to rival many other companies. Through meaningful innovations, they've humanized their technology to create appliance design that's uncluttered, controls that are intuitive, and features that are as sensitive as they are smart.

Specifications & Dimensions

Jump to Section:

• Dimensions & Weights
• Microwave Features
• Specifications
• Features
• Optional Accessories
• Ventilation System
• Microwave Control Options
• Power Ratings
•

Microwave Control Options
Popcorn Button	Yes
Chicken Nugget Button	No
Baked Potato Button	Yes
Sensor Reheat Button	No
Snack Button	No
Beverage	Yes
Auto Melt/Soften Options	No
Auto Reheat Options	3
Snack Menu Options	No
Auto Cook Options	No
Auto Defrost Options	Weight/Time
Keep Warm	No
Add-30-Seconds	Yes
Sensor Cooking Options	No
Vegetable Cook Sensor	No
Delay Start	No
User Preference	No
Microwave Features
Accessory Metal Rack	No
Power Levels	High (1-9)
Touch Pad Buttons	23
Clock	Yes
Control Lock	Yes
Turntable On/Off	No
Turntable Diameter	13 1/2"
Interior Color	White
Interior Light	Yes
Watts (IEC-705 Test Procedure)	1,000
Convection	No
Microwave Capacity	1.6 cu. ft.
Features
Handle Design	Color-Coordinated (W/B/Q)
Exterior Door Finish	Color-Coordinated (M/W/B/Q)
Control/Timing System	Ready-Select
Colors	Stainless Steel (S)/Silver Mist (M)/White (W)/Black (B)/Bisque (Q)
Type	Over-the-Range
Series	Frigidaire
Dimensions & Weights
Approximate Shipping Weight	69 lbs.
Cutout Height	16 3/4" min./17" max.
Cutout Depth	12" min./13" max.
Cutout Width	30" min.
Oven Interior Height	9 1/4"
Oven Interior Depth	14 13/32"
Oven Interior Width	20 1/4"
Product Height	16 13/32"
Product Depth	15 1/32"
Product Width	29 7/8"
Ventilation System
Dishwasher-Safe Vent Filter (Ductless Install	Yes
Ducted/Ductless Installation Option	Yes
Exhaust Fan	2-Speed 170/300 CFM
Cooktop Light	Yes
Auto-Start Heat Sensor	Yes
Dishwasher-Safe Vent Filter (Ductless Installation)	Yes
Power Ratings
Frequency	2,450 Mhz
Watts @ 120 Volts	1,550
Amps @ 120 Volts	13
Optional Accessories
36\" Stainless Steel Trim Kit	PN# MWFILKTSS
36\" White Trim Kit	PN# MWFILKTWH
36\" Black Trim Kit	PN# MWFILKTBK
30\" Stainless Steel Trim Kit	N/A
30\" White Trim Kit	N/A
30\" Black Trim Kit	N/A
27\" Stainless Steel Trim Kit	N/A
27\" White Trim Kit	N/A
27\" Black Trim Kit	N/A
Specifications
Power Supply Connection Location	Right Top Rear
Voltage Rating	120V / 60 Hz / 15 A
Connected Load (kW Rating) @ 120 Volts	1.55
Minimum Circuit Required	15 Amps
