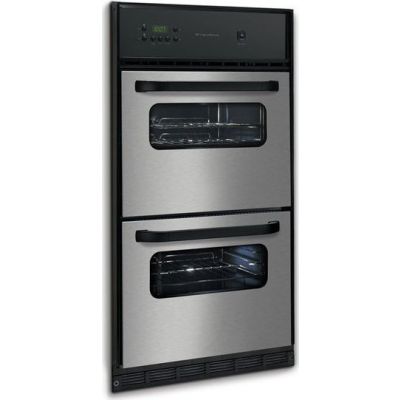

About the Frigidaire FGB24T3EC
- 2.7 cu. ft. Oven Capacity
- Manual Clean
- Ready-Select Controls
- Bright Oven Lighting
- 2.7 cu. ft. Lower Broiler
Brand:
Oven Style:
Single
Capacity:
2.7 Cu. Ft.
Convection:
No
Self Clean:
No
Color:
Stainless Steel
Width:
24"
Height:
42 3/8"
Cutout Width:
22 1/2"
Cutout Height:
42 1/8"
Fuel Type:
Gas
Volts:
120 Volts
Amps:
15
Bottom oven is a broiler only.
Key Features
Ready-Select Controls
- Easily select options or control cooking temperature with their easy-to-use controls
Large Capacity
- Large capacity oven and broiler give you room to cook more at once
Vari-Broil Option
- Allows you to choose between two heat levels
Large Windows
- The large oven windows let you easily see what's inside
Bright Oven Lighting
- The bright lighting makes it easy to see what's inside.
Timer Function
Manual-Clean Oven
FGB24T3EC Installation Instructions
Specifications
Oven Controls
Quick Bake Convection
No
Convection Bake/Broil/Roast
No
Convection Conversion
No
Bake/Broil
Yes/Variable (Hi - Lo)
PowerPlus/Quick Preheat
No
My Favorite
No
Chicken Nugget Button
No
Pizza Button
No
Keep Warm
No
Add-a-Minute
No
Delay Bake
No
Self-Clean
No
Rapid/Quick Clean Option
No
Delay Clean
No
Kitchen Timer
Yes
Timed Cook Option
No
Control Lock
No
Auto Oven Shutoff
No
Oven Lock-Out
No
Features
Oven Cleaning System
Manual Clean
Handle Design
Black (C)
Exterior Door Finish
Real Stainless Steel (C)
Window
Large
Oven Control/Timing System
Ready-Select
Dimensions & Weights
Approximate Shipping Weights
165 lbs.
Product Weight
140 lbs.
Oven Interior Height
14"
Oven Interior Depth
17 5/8"
Oven Interior Width
19"
Cutout Height
42 1/8" min.
Cutout Depth
24" min.
Cutout Width
22 1/2" min.
Wrapper Height
41 13/16"
Overall Height
42 3/8"
Overall Depth
21"
Wrapper Width
22 5/16"
Overall Width
23 17/32"
Depth with Doors Open 90°
40 3/8"
Appearance
Fuel Type
Gas
Style
Single
Microwave
No
Speed Oven
No
Steam Oven
No
Color
Stainless Steel
Stainless Steel Handle
No
Viewing Window
Yes
Drawer
Broiler
Clock
Digital
Dimensions
Cutout Width
22 1/2 Inch
Cutout Depth
24 Inch
Cutout Height
42 1/8 Inch
Exterior Width
24 Inch
Exterior Depth
21 Inch
Exterior Height
42 3/8 Inch
Oven Features
Capacity
2.7 Cu. Ft.
Convection
No
Self-Cleaning
No
Control Type
Touchpad
Broiler Element Location
Bottom
Delay Bake
No
Digital Temperature Display
No
Interior Oven Light
Yes
Oven Racks
2
Proofing
No
Removable Door
No
Sabbath Mode
No
Temperature Probe
No
Timer
Yes
Broiler Pan Included
No
Proof Mode
No
Technical Details
Star-K Certified
No
ADA Compliant
No
BTU
18,000
Undercounter Installable
No
LP Conversion
Yes
Amps
15
Voltage
120 Volts
Upper Oven Features
Capacity
2.7 cu. ft.
Convection System
No
Oven Light
1
Hidden Bake Element
No
Rack Configuration
2 Racks
Baking System
Regular
Broiling System
No
Bake Element
18,000 BTUs
Lower Broil Features
Capacity
2.7 cu. ft.
Convection System
No
Oven Light
1
Hidden Bake Element
No
Rack Configuration
2 Racks
Baking System
N/A
Broiling System
Vari-Broil
Bake Element
18,000 BTUs
Certifications
A.D.A. Compliant
No
Sabbath Mode (Star-K Certified)
No
Specifications
Power Supply Connection Location
Right Bottom Rear
Gas Supply Connection Location
Right Bottom Rear
Voltage Rating
120V/60Hz
Connected Load (kW Rating) @ 120 volts
.001
Amps @ 120 volts
5.0
Minimum Circuit Required
15 Amps
Approved for Under-Counter Installation
No
Product Information
Brand
Frigidaire
Model
FGB24T3EC
UPC
057112090177
Warranty Terms
1 year ? Frigidaire Appliances are backed with a one year warranty. For additional information visit https://www.frigidaire.com/en/warranty/warranty-information
