discontinued

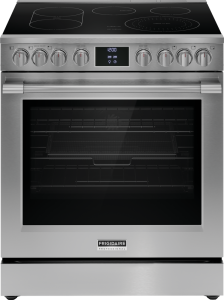

There is a newer model of this item:
Need help finding a replacement?
-
Call us at
888-714-4938

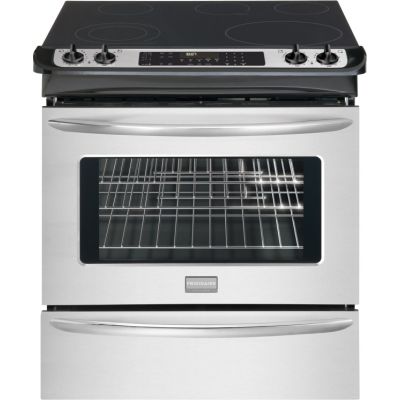

About the Frigidaire FGES3045KF
- 5 Radiant Elements Including Warming Zone
- 4.2 cu. ft. True European Convection Oven
- Self-Clean
- Hidden Bake Element
- Storage Drawer
- Star-K Certified
- ADA Compliant
Brand:
Series:
Gallery
Style:
Slide-In
Width:
31 1/2"
Height:
35 7/8"
Depth:
28 5/16"
Capacity:
4.2 Cu. Ft.
Burners:
5
Convection:
Yes
Self Clean:
Yes
Fuel Type:
Electric
Volts:
240/208 Volts
Amps:
50
Frigidaire, one of the leaders in home appliances; offers superior products and service to rival many other companies. Through meaningful innovations, they've humanized their technology to create appliance design that's uncluttered, controls that are intuitive, and features that are as sensitive as they are smart.
Key Features
Power Cord Not Included
Capacities
- 4.2 Cu. Ft. Oven Capacity
- Available at Designer Appliances
Effortless Performance
- True Convection
- Multi-rack baking is faster and more even with True Convection.
- Effortless Convection Conversion
- Power and Quick Clean Options
- Broil ( 3,400W )
Performance-Driven Style
- Even Baking Technology
- Smoothtop Ceramic Glass Cooking Surface
SpaceWise Design
- Keep Warm Zone ( 100W )
- SpaceWise Expandable Element -
- 6" to 9" ( 1,600W / 3,000W )
- Storage Drawer
One-Touch Options
- Chicken Nuggets
- Keep Warm
More Easy-To-Use Features
- Quick Preheat
- Preheat in less than six minutes.
- Express-Select Controls
- Easily go from warm to boil.
- Hidden Bake
- Extra-Large Window
- A.D.A. Compliant
- Sabbath Mode (Star-K Certified)
Manuals & Downloads
FGES3045KF Installation Instructions
FGES3045KF Owner's Guide
FGES3045KF Wiring Diagram
Specifications
Oven Features
Delay Bake
Yes
Proofing
No
Sabbath Mode
Yes
Broiler Element Location
Top
Temperature Probe
No
Interior Oven Light
Yes
Racks
3
Removable Door
Yes
Proof Mode
No
Broiler Pan Included
No
Self-Cleaning
Yes
Primary Oven Capacity
4.2 Cu. Ft.
Oven Control Type
Digital
Digital Temperature Display
Yes
Timer
Yes
Convection
Yes
Technical Details
Voltage
240/208 Volts
Amps
50
Oven Wattage
3,400
ADA Compliant
Yes
Star-K Certified
Yes
Product Information
Series
Gallery
Model
FGES3045KF
UPC
057112103112
Warranty Terms
1 year ? Frigidaire Appliances are backed with a one year warranty. For additional information visit https://www.frigidaire.com/en/warranty/warranty-information
Brand
Frigidaire
Features
Sabbath Mode (Star-K Certified)
Yes
A.D.A. Compliant
Yes
Power and Quick Clean Options
Yes
Convection Conversion
Yes
Broil
3,400 Watts
Even Baking Technology
Yes
Smoothtop Ceramic Glass Cooking Surface
Yes
Extra-Large Window
Yes
Hidden Bake
Yes
Keep Warm
Yes
Chicken Nuggets
Yes
One-Touch Options
Yes
Storage Drawer
Yes
SpaceWise Expandable Element
6" to 9" ( 1,600W / 3,000W )
Keep Warm Zone
100 Watts
Others
Power Cord
Not Included
Electrical Requirements
Single Phase 3- Or 4-Wire Cable
Voltage
120/240 Or 120/208 Volt, 60 Hertz, Fused On Both Sides Of Line With Ground
Amps @ 240/208 Volts
52/44 Amps
Recommended Circuit Breaker
50 Amps (40 Amps Minimum)
Connected Load (kW Rating) @ 240/208 Volts
12.4/9.4 kW
Capacity
Number of Burners
5
Burner Output
Burner 1 Output
3000
Burner 2 Output
2700
Burner 3 Output
1200
Set 3 Output
1200
Set 1 QTY
1
Set 1 Output
3000
Set 2 QTY
1
Set 2 Output
2700
Set 3 QTY
2
Shabbos Compliance
Certification
STAR-K
Dimensions and Weights
Overall Width
31 1/2"
Overall Depth
28 5/16"
Overall Height
35 7/8" to 36 5/8"
Cutout Width
30 +/- 1/16"
Cutout Depth
21 3/4" Min. to 22 1/8" Max.
Cutout Height
35 7/8" Min. to 36 5/8" Max.
Approx. Shipping Weight
240 Lbs.
GTIN
Capacities
Oven Capacity
4.2 Cu. Ft.
Appearance
Fuel Type
Electric
Style
Slide-In
Color
Stainless Steel
Cooktop
Smoothtop
Stainless Steel Handle
Yes
Viewing Window
Yes
Drawer
Storage
Clock
Yes
Cooktop Features
Downdraft Ventilation
No
Modules Required
No
Hot Surface Indicator Light
Yes
Induction
No
Cooktop Control Type
Knobs
Burners / Elements
5
Dimensions
Width
31 1/2 Inch
Depth
28 5/16 Inch
Height
35 7/8 Inch
General
Manufacturer
Frigidaire
