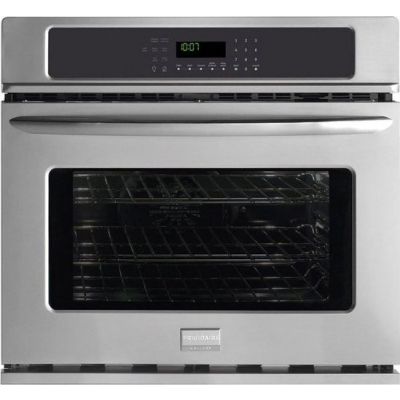

About the Frigidaire FGEW2745KF
- 3.5 cu. ft. True Convection Oven
- Convection Conversion
- One-Touch Self Clean
- Express-Select Controls
- Star-K Certified
Brand:
Oven Style:
Single
Capacity:
3.5 Cu. Ft.
Convection:
Yes
Self Clean:
Yes
Color:
Stainless Steel
Width:
27"
Height:
29"
Cutout Width:
24 7/8"
Cutout Height:
27 1/4"
Fuel Type:
Electric
Volts:
240/208 Volts
Amps:
20
Frigidaire, one of the leaders in home appliances; offers superior products and service to rival many other companies. Through meaningful innovations, they've humanized their technology to create appliance design that's uncluttered, controls that are intuitive, and features that are as sensitive as they are smart.
Key Features
Capacities
- 3.5 Cu. Ft. Upper Oven Capacity
- Available at Designer Appliances
- www.designerappliances.com
Powerful Performance
- True Convection
- With True Convection, you can easily and evenly bake 200 chicken nuggets in 10 minutes.
- Effortless Convection Conversion
- Takes the guesswork out of convection cooking - their oven does the converting for you.
- Quick Preheat
- Preheat in less than 6 minutes.
- Quick Clean
- Power Broil ( 3,400W )
Performance-Driven Style
- Even Baking Technology
- Their latest technology ensures even baking every time.
- One-Touch Self-Clean
- Start the self-cleaning cycle with just the touch of a button.
- Quick Clean
- For a quick, light oven cleaning.
One-Touch Options
- Chicken Nuggets
- Easily bake perfect chicken nuggets with the touch of a button.
- Express-Select Controls
- Easily set cooking temperature or choose one-touch cooking options.
More Easy-To-Use Features
- Delay Start
- Set your oven to begin cooking on your schedule. It can be programmed from 1 to 24 hours.
- Keep Warm Setting
- Keep food warm until everything - and everyone - is ready.
- Hidden Bake
- Extra-Large Windows
- Sabbath Mode (Star-K Certified)
- A.D.A. Compliant
FGEW2745KF Installation Instructions
Specifications
Technical Details
Wattage
3,400 Watts
Undercounter Installable
Yes
Voltage
240/208 Volts
Star-K Certified
Yes
ADA Compliant
Yes
Amps
20
Specifications
Power Connect Location
Rear Bottom Left
Power Type
Electric
Sabbath Mode Certified
Yes
Under Counter Approved
Yes
Oven Pre-Heat
Yes
Minimum Circuit Required
20 Amps
A.D.A. Compliant
Yes
Amps
17/15 Amps
Connected Load (kW Rating) @ 240/208 Volts
4.1/3.0 kW
Oven Features
Bake Element
6-Pass 2,700 Watts / Convection Element 350 Watts
Baking System
Dual Radiant
Broil Element
6-Pass 3,400 Watts
Broiling System
Vari-Broil
Convection Conversion
Effortless Convection
Convection System
3rd Element
Hidden Bake Element
Hidden Bake Cover
Oven Capacity
3.5 Cu. Ft.
Oven Clean System
Quick Clean Variable 2-3-4 Hours
Oven Light
1
Oven Rack Configuration
3 with 2 Heavy Duty Handle Rack, 1 Offset Rack
Oven Window
Extra Large Visualite
Dimensions and Weights
Interior Oven Width
20 1/2"
Overall Depth
24 1/2"
Overall Depth Door Open 90°
44 1/2"
Overall Height
29"
Overall Width
27"
Interior Oven Height
16 1/2"
Interior Oven Depth
18 1/32"
Approx. Shipping Weight
155 Lbs.
Cut-Out Depth
23 1/2" Min.
Cut-Out Height
27 1/4" Min. - 28 5/8" Max.
Cut-Out Width
24 7/8" Min. - 25 1/4" Max.
Appearance
Style
Single
Viewing Window
Yes
Steam Oven
No
Speed Oven
No
Stainless Steel Handle
Yes
Clock
Digital
Color
Stainless Steel
Drawer
None
Fuel Type
Electric
Microwave
No
Oven Features
Temperature Probe
No
Timer
Yes
Control Type
Digital
Convection
Yes
Delay Bake
Yes
Broiler Element Location
Top
Broiler Pan Included
No
Capacity
3.5 Cu. Ft.
Digital Temperature Display
Yes
Removable Door
Yes
Sabbath Mode
Yes
Self-Cleaning
Yes
Proofing
No
Proof Mode
No
Interior Oven Light
Yes
Oven Racks
3
Product Information
UPC
057112102078
Warranty Terms
1 year ? Frigidaire Appliances are backed with a one year warranty. For additional information visit https://www.frigidaire.com/en/warranty/warranty-information
Brand
Frigidaire
Series
Gallery
Model
FGEW2745KF
Dimensions
Cutout Depth
23 1/2 Inch
Cutout Height
27 1/4 Inch
Cutout Width
24 7/8 Inch
Exterior Depth
24 1/2 Inch
Exterior Height
29 Inch
Exterior Width
27 Inch
Shabbos Compliance
Certification
STAR-K
GTIN
General
Manufacturer
Frigidaire
