discontinued
There is a newer model of this item:
Need help finding a replacement?
-
Call us at
888-714-4938
Accessories
1 Item(s)

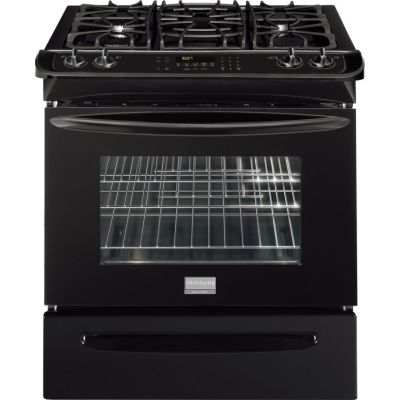

About the Frigidaire FGGS3045KB
- 4 Sealed Burners
- 4.2 cu. ft. True European Convection Oven
- Self-Clean
- Storage Drawer
- ADA Compliant
- Star-K Certified
Brand:
Series:
Gallery
Style:
Slide-In
Width:
31 1/2"
Height:
35 7/8"
Depth:
28 5/16"
Capacity:
4.2 Cu. Ft.
Burners:
4
Convection:
Yes
Self Clean:
Yes
Fuel Type:
Gas
Volts:
120 Volts
Amps:
15
Frigidaire, one of the leaders in home appliances; offers superior products and service to rival many other companies. Through meaningful innovations, they've humanized their technology to create appliance design that's uncluttered, controls that are intuitive, and features that are as sensitive as they are smart.
Key Features
Capacities
- 4.2 Cu. Ft. Oven Capacity
- Available at Designer Appliances
Effortless Performance
- True Convection
- Multi-rack baking is faster and more even with True Convection.
- Effortless Convection Conversion
- Power and Quick Clean Options
- Broil ( 11,500 BTU )
- Quick Boil
- Boil water faster with their 17,000-BTU burner.
Performance-Driven Style
- Even Baking Technology
- Continuous Cast Iron Grates with Black Matte Finish
- Low-Simmer Burner
- Quick Preheat
- Preheat in less than six minutes.
SpaceWise Design
- Storage Drawer
One-Touch Options
- Keep Warm
- Chicken Nuggets
More Easy-To-Use Features
- Express-Select Controls
- Easily go from warm to boil.
- Extra-Large Window
- A.D.A. Compliant
- Sabbath Mode (Star-K Certified)
Manuals & Downloads
FGGS3045KB Installation Instructions
FGGS3045KB Owner's Guide
FGGS3045KB Wiring Diagram
Specifications
Burner Output
Set 2 Output
12000
Set 2 QTY
1
Set 3 Output
9500
Set 3 QTY
1
Set 4 Output
5000
Set 4 QTY
1
Burner 1 Output
17000
Burner 2 Output
12000
Burner 3 Output
9500
Burner 4 Output
5000
Set 1 Output
17000
Set 1 QTY
1
Dimensions and Weights
Overall Height
35 7/8" to 36 5/8"
Overall Width
31 1/2"
Overall Depth
28 5/16"
Cutout Width
30 +/- 1/16"
Approx. Shipping Weight
250 Lbs.
Cutout Depth
21 3/4" Min. to 22 1/8" Max.
Cutout Height
35 7/8" Min. to 36 5/8" Max.
Features
A.D.A. Compliant
Yes
Broil
11,500 BTU
Chicken Nuggets
Yes
Continuous Cast Iron Grates
Yes with Black Matte Finish
Convection Conversion
Yes
Even Baking Technology
Yes
Express-Select Controls
Yes
Extra-Large Window
Yes
Keep Warm
Yes
Low-Simmer Burner
Yes
LP Gas Conversion Kit
Included
One-Touch Options
Yes
Power and Quick Clean Options
Yes
Quick Boil
Yes
Quick Preheat
Yes
Sabbath Mode (Star-K Certified)
Yes
Storage Drawer
Yes
True Convection
Yes
Capacities
Oven Capacity
4.2 Cu. Ft.
Appearance
Stainless Steel Handle
No
Style
Slide-In
Viewing Window
Yes
Clock
Yes
Color
Black
Continuous Grates
Yes
Cooktop
Sealed Burner
Drawer
Storage
Fuel Type
Gas
Technical Details
Star-K Certified
Yes
Voltage
120 Volts
ADA Compliant
Yes
Amps
15
Oven BTUs
11,500
Ignition Type
Electronic
LP Conversion
Yes
Oven Features
Temperature Probe
No
Timer
Yes
Convection
Yes
Delay Bake
Yes
Broiler Element Location
Top
Broiler Pan Included
No
Digital Temperature Display
Yes
Oven Control Type
Digital
Primary Oven Capacity
4.2 Cu. Ft.
Proof Mode
No
Proofing
No
Removable Door
Yes
Sabbath Mode
Yes
Self-Cleaning
Yes
Interior Oven Light
Yes
Product Information
UPC
057112103068
Warranty Terms
1 year ?Frigidaire Appliances are backed with a one year warranty. For additional information visit https://www.frigidaire.com/en/warranty/warranty-information
Brand
Frigidaire
Series
Gallery
Model
FGGS3045KB
Electrical Requirements
Voltage Rating
120V / 60 Hz / 15 Amps
Connected Load (kW Rating) @ 120 Volts
0.7 kW
Amps @ 120V
6 Amps
Dimensions
Width
31 1/2 Inch
Depth
28 5/16 Inch
Height
35 7/8 Inch
Cooktop Features
Cooktop Control Type
Knobs
Burners / Elements
4
Downdraft Ventilation
No
Hot Surface Indicator Light
No
Modules Required
No
Shabbos Compliance
Certification
STAR-K
Capacity
Number of Burners
4
General
Manufacturer
Frigidaire
