discontinued
There is a newer model of this item:
Need help finding a replacement?
-
Call us at
888-714-4938
Accessories
1 Item(s)

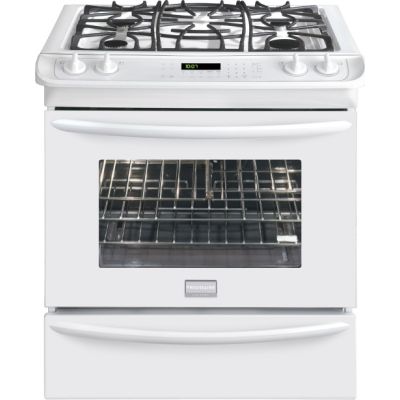

About the Frigidaire FGGS3065KW
- 4 Sealed Burners
- 4.2 cu. ft. True European Convection Oven
- Self-Clean
- Warming Drawer
- ADA Compliant
- Star-K Certified
Brand:
Series:
Gallery
Style:
Slide-In
Width:
31 1/2"
Height:
35 7/8"
Depth:
28 5/16"
Capacity:
4.2 Cu. Ft.
Burners:
4
Convection:
Yes
Self Clean:
Yes
Griddle:
No
Grill:
No
Fuel Type:
Gas
Volts:
120 Volts
Amps:
15
Frigidaire, one of the leaders in home appliances; offers superior products and service to rival many other companies. Through meaningful innovations, they've humanized their technology to create appliance design that's uncluttered, controls that are intuitive, and features that are as sensitive as they are smart.
Key Features
Capacities
- 4.2 Cu. Ft. Oven Capacity
- 1.4 Cu. Ft. Drawer Capacity
- Available at Designer Appliances
Effortless Performance
- Auto Shut-Off
- Quick Clean Options
- Effortless Convection Conversion
- Even Broil ( 11,500 BTU )
Performance-Driven Style
- Effortless Oven Rack
- Low-Simmer Burner
- Continuous Cast Iron Grates with Black Matte Finish
- Even Baking Technology
SpaceWise Design
- Keep Warm Drawer with SpaceWise Half Rack
- SpaceWise Half Rack
One-Touch Options
- Chicken Nuggets
- Pizza
- Keep Warm
- Add-a-Minute
- One-Touch Self-Clean
More Easy-To-Use Features
- Delay Start
- Extra-Large Window
- A.D.A. Compliant
- Sabbath Mode (Star-K Certified)
Manuals & Downloads
FGGS3065KW Installation Instructions
FGGS3065KW Owner's Guide
FGGS3065KW Wiring Diagram
Specifications
Appearance
Fuel Type
Gas
Style
Slide-In
Color
White
Cooktop
Sealed Burner
Continuous Grates
Yes
Stainless Steel Handle
No
Viewing Window
Yes
Drawer
Warming
Clock
Yes
Fuel Subtype
Natural Gas
Dimensions
Width
31 1/2 Inch
Depth
28 5/16 Inch
Height
35 7/8 Inch
Interior Width
24 1/8"
Interior Depth
18 3/4"
Interior Height
17 1/2"
Burner Output
Set 1 QTY
1
Set 1 Output
17000
Set 2 QTY
1
Set 2 Output
12000
Set 3 QTY
1
Set 3 Output
9500
Set 4 QTY
1
Set 4 Output
5000
Burner 1 Output
17000
Burner 2 Output
12000
Burner 3 Output
9500
Burner 4 Output
5000
Cooktop Features
Burners / Elements
4
Cooktop Control Type
Knobs
Downdraft Ventilation
No
Modules Required
No
Hot Surface Indicator Light
No
Grill
No
Griddle
No
Oven Features
Primary Oven Capacity
4.2 Cu. Ft.
Oven Control Type
Digital
Digital Temperature Display
Yes
Timer
Yes
Convection
Yes
Self-Cleaning
Yes
Delay Bake
Yes
Proofing
No
Sabbath Mode
Yes
Broiler Element Location
Top
Temperature Probe
No
Interior Oven Light
Yes
Removable Door
Yes
Racks
3
Broiler Pan Included
No
Proof Mode
No
Technical Details
Star-K Certified
Yes
ADA Compliant
Yes
Ignition Type
Electronic
Oven BTUs
11,500
LP Conversion
Yes
Amps
15
Voltage
120 Volts
Product Information
Series
Gallery
Brand
Frigidaire
Model
FGGS3065KW
UPC
057112102870
Dimensions and Weights
Overall Width
30"
Overall Depth
28 5/16"
Overall Height
35 7/8" - 36 5/8"
Cutout Width
29 15/16" - 30 1/16"
Cutout Depth
21 3/4" - 22 1/8"
Cutout Height
35 7/8" - 36 5/8"
Overall Depth with Door Open 90°
47 9/16"
Oven Interior Width
24 1/8"
Oven Interior Depth
18 3/4"
Oven Interior Height
17 1/2"
Shipping Weight (Approx.)
225.0 Lbs.
Features
Oven Capacity
4.5 Cu. Ft.
Oven Control / Timing System
Express-Select
Surface Type
Porcelain
Sealed Gas Burners
Yes
Grates
Continuous Cast-Iron with Black Matte Finish
Window
Extra-Large
Convection System
True Convection
Oven Cleaning System
Self-Clean
Drawer Functionality
Storage
Oven Features
Oven Light
2
Heavy Duty Racks
1
Offset Racks
1
Effortless Racks
1
Baking System
Even Baking Technology
Broiling System
Vari-Broil
Bake Burner
18,000 BTU
Broil Burner
11,500 BTU
Drawer Rack
No
Oven Controls
Bake
Yes
Broil
Variable (400° - 550°F)
Effortless Convection Conversion
Yes
Convection Bake
Yes
Convection Broil
No
Convection Roast
Yes
Quick Preheat
Yes
My Favorite
No
Chicken Nugget Button
No
Pizza Button
No
Slow Cook
No
Effortless Temperature Probe
Yes
Keep Warm
Yes
Add-a-Minute
No
Delay Start
Yes (2, 3, 4 Hours)
Self-Clean / Clean Options
Yes
Steam Clean
No
Delay Clean
2, 3, 4 Hours
Kitchen Timer
Yes
Timed Cook Option
Yes
Auto Oven Shut-Off
6 Hours
Lower Drawer Control
No
Cooktop Features
Right Front Burner
17,000 BTU
Right Rear Burner
5,000 BTU
Left Front Burner
9,500 BTU
Left Rear Burner
15,000 BTU
Certifications
A.D.A. Compliant
Yes
Sabbath Mode
Yes
Star-K Certified
Yes
Specifications
Power Supply Connection Location
Left Bottom Rear
Gas Supply Connection Location
Right Bottom Rear
LP Gas Conversion Kit
Included
Voltage Rating
120V / 60Hz / 15A
Connected Load (kW Rating) @ 120 Volts
.84 kW
Amps @ 120 Volts
15 Amps
Minimum Circuit Required
15 Amps
Capacity
Number of Burners
4
Shabbos Compliance
Certification
STAR-K
General
Manufacturer
Frigidaire
