discontinued
There is a newer model of this item:
Need help finding a replacement?
-
Call us at
888-714-4938

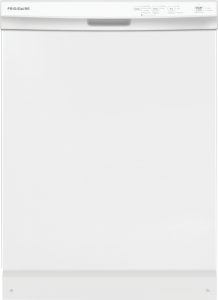

About the Frigidaire FGHD2433KW
- 7 Wash Cycles Including Quick Clean
- 5 Wash Levels
- DishSense/AquaSurge Technology
- Hard Food Disposer
- Express-Select Controls
Brand:
Width:
24"
Height:
33 1/2"
Color:
White
Accepts Panels:
No
Control Style:
Fully Integrated
Stainless Steel Interior:
No
Water Softener:
No
Series:
Gallery
Type:
Built In
ADA Compliant:
No
Frigidaire, one of the leaders in home appliances; offers superior products and service to rival many other companies. Through meaningful innovations, they've humanized their technology to create appliance design that's uncluttered, controls that are intuitive, and features that are as sensitive as they are smart.
Key Features
Effortless Performance
- DishSense Technology
- 7 Wash Cycles Including -
- Energy Saver
- Quick Clean
- Top Rack Only
- 5 Wash Levels
- AquaSurge Technology
- Low-Rinse Aid Indicator
Performance-Driven Style
- Express-Select Controls
- Fully-Integrated Control Panel with Digital Display
- Stay-Put Door
- Tall Tub Design
- GraniteGrey Interior
SpaceWise Design
- Largest Silverware Basket
- 3 Separate Compartments with 2 Small Item Covers
- Adjustable Upper Rack -
- Fold-Down Tines
- 2 Cup Shelves
- Stemware Holders
- Utensil Trays
- Lower Rack -
- 2 Full Rows Fold-Down Tines
More Easy-To-Use Features
- Delay Start (1-24 Hours)
- Hi-Temp Wash Option
- Heat / No Heat Dry
- China Crystal Cycle
- Removable Stainless Steel Filter
- Stainless Steel Food Disposer
- Controls Lock
FGHD2433KW Installation Instructions
Specifications
Features
AquaSurge Technology
Yes
Wash Levels
5
DishSense Technology
Yes
Control Design
Fully-Integrated; Express-Select
Digital Display
Yes
Door Latch
Yes
Stay-Put Door Hinge Design
Yes
Low Rinse-Aid Indicator Light
No
Interior Design
Tall Tub
Interior Color
GraniteGrey
Wash System
OrbitClean Wash Arm
Wash Speeds
5
Sound Package
UltraQuiet Plus
Filter
Stainless Steel
Filter Trap
Removable
Soft Food Disposer
Yes
dB Level
53 dB
Drying System
Sahara Dry
Appearance
Type
Built In
Color
White
Accepts Panels
No
Dimensions
Width
24 Inch
Depth
25 Inch
Height
33 1/2 Inch
Features
Control Type
Digital
Electronic Display
Yes
Control Style
Fully Integrated
Adjustable Upper Rack
Yes
Fold-Down Tines
Yes
Rack Material
Nylon
Cutlery Tray
No
Tall Tub
Yes
Stainless Interior
No
Number of Spray Arms
2
Rinse Aid Dispenser
Yes
Water Filtration
Yes
Water Heating
Yes
Capacity
14 Place Settings
Stainless Steel Interior
No
Wash Features
Cycles
7
Delay Start
Yes
Dry Type
Heated & Vented
Hard Food Disposer
Yes
High Temperature Wash
Yes
NSF Certified Rinse
Yes
Quick Wash Setting
Yes
China/Crystal Setting
Yes
Sensor Clean
Yes
Heavy Duty Wash
Yes
Technical Details
Star-K Certified
No
Energy Star Rated
Yes
CEE Rating
Tier II
ADA Compliant
No
Amps
15
Voltage
120 Volts
Approved for Outdoor Use
No
Product Information
Series
Gallery
Brand
Frigidaire
Model
FGHD2433KW
UPC
012505111495
Warranty Terms
1 year ?Frigidaire Appliances are backed with a one year warranty. For additional information visit https://www.frigidaire.com/en/warranty/warranty-information
Cycles
Number Of Cycles
7
PowerPlus (Heavy)
Yes
Normal
Yes
Light
No
Quick
Yes
Favorite
Yes
China Crystal
No
Rinse Only
Yes
Energy Saver Plus
Yes
Upper Rack Wash Only
Yes
Cycle Indicator Light
No
Control Lock
Yes
Options
Heat / No Heat Dry
Yes
Hi-Temp Wash
Yes
NSF Certified Sanitize Rinse
Yes
Delay Start
1 - 24 Hour
Rack System
Rack Design
Premium
Rack Coating
Nylon TufRacks
Upper Rack - Rack Handles
Yes
Upper Rack - Stemware / Champagne Glass Holders
Yes
Upper Rack - Fold-Down Tines
Yes
Upper Rack - Cup Shelves
2
Upper Rack - Clips
2
Upper Rack - Versa-Tray
Yes
Upper Rack - Adjustable Rack
Yes
Lower Rack - SpaceWise Silverware Basket
3-Piece Split
Lower Rack - Fold-Down Tines
2 Full Rows
Lower Rack - Small Items Cover
2
Certifications
ENERGY STAR
Yes
NSF International Certification
Yes
Specifications
Water Inlet Location
Left Bottom Front
Water Usage
4.9 - 8.5 Gallons
Water Pressure
20 - 120 PSI
Integral Air Gap On Supply
Yes
Leveling Legs
4
Power Supply Connection Location
Right Bottom Front
Voltage Rating
120V / 60Hz / 15A
Connected Load (kW Rating) @ 120 Volts
1.44 kW
Amps @ 120 Volts
10 Amps
Shipping Weight (Approx.)
83 Lbs.
Dimensions
Overall Width
24"
Overall Depth (Including Door)
25"
Overall Depth (To Tub Flange)
22 1/2"
Overall Depth with Door Open 90°
49 1/4"
Overall Height
33 1/2" - 35"
Cutout Width
24" Min.
Cutout Depth
24" Min.
Cutout Height
34 1/4" Min. - 35 1/4" Max.
Specifications:
Water Softener
No
General
Manufacturer
Frigidaire
