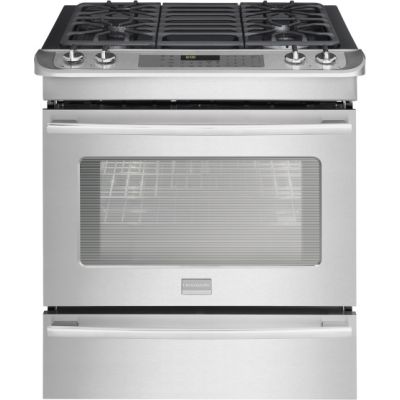

About the Frigidaire FPDS3085KF
- 30" Slide-in Dual-Fuel Range with 4 Sealed Burners
- 4.2 cu. ft. True European Convection Oven
- Self-Clean
- Warming Drawer
- ADA Compliant and Star-K Certified
Brand:
Series:
Professional
Style:
Slide-In
Width:
30"
Height:
36 5/8"
Depth:
28 5/16"
Capacity:
4.6 Cu. Ft.
Burners:
4
Convection:
Yes
Self Clean:
Yes
Griddle:
No
Grill:
No
Fuel Type:
Dual Fuel
Volts:
240 Volts
Amps:
30
Frigidaire, one of the leaders in home appliances; offers superior products and service to rival many other companies. Through meaningful innovations, they've humanized their technology to create appliance design that's uncluttered, controls that are intuitive, and features that are as sensitive as they are smart.
Key Features
Power Cord Not Included
Capacities
- 4.2 Cu. Ft. Oven Capacity
- 1.6 Cu. Ft. Drawer Capacity
- Available at Designer Appliances
Powerful Performance
- Auto Shut-Off
- PowerPlus and Rapid Clean Options
- Effortless Convection Conversion
- PowerPlus Broil ( 4,000W )
Performance-Driven Style
- Pro-Select Controls
- Real Stainless Steel
- Continuous Cast Iron Grates with Black Matte Finish
- Effortless Oven Rack
- Even Baking Technology
- Low-Simmer Burner
SpaceWise Design
- Keep Warm Drawer with SpaceWise Half Rack
- SpaceWise Half Rack
One-Touch Options
- Keep Warm
- My Favorite
- Chicken Nuggets
- Pizza
- Add-a-Minute
- One-Touch Self-Clean
More Easy-To-Use Features
- Delay Start
- Hidden Bake
- Extra-Large Window with Pro-Tint Finish
- A.D.A. Compliant
- Sabbath Mode (Star-K Certified)
FPDS3085KF Installation Instructions
Specifications
Technical Details
ADA Compliant
Yes
Amps
30
Ignition Type
Electronic
LP Conversion
Yes
Oven Wattage
4000
Star-K Certified
Yes
Voltage
240 Volts
Oven Features
Broiler Element Location
Top
Convection
Yes
Delay Bake
Yes
Digital Temperature Display
Yes
Interior Oven Light
Yes
Oven Control Type
Digital
Primary Oven Capacity
4.6 Cu. Ft.
Proofing
No
Racks
3
Removable Door
Yes
Sabbath Mode
Yes
Self-Cleaning
Yes
Temperature Probe
Yes
Timer
Yes
Cooktop Features
Burners / Elements
4
Cooktop Control Type
Knobs
Downdraft Ventilation
No
Griddle
No
Grill
No
Hot Surface Indicator Light
No
Induction
No
Modules Required
No
Appearance
Clock
Yes
Color
Stainless Steel
Continuous Grates
Yes
Cooktop
Sealed Burner
Drawer
Warming
Fuel Subtype
Natural Gas
Fuel Type
Dual Fuel
Stainless Steel Handle
Yes
Style
Slide-In
Viewing Window
Yes
Dimensions
Depth
28 5/16"
Height
36 5/8"
Interior Depth
18 3/4"
Interior Height
17 1/2"
Interior Width
24 1/8"
Width
30"
General
Series
Professional
Manufacturer
Frigidaire
Burner Output
Set 1 Output
17000
Set 1 QTY
1
Set 2 Output
1500
Set 2 QTY
1
Set 3 Output
9500
Set 3 QTY
1
Set 4 Output
5000
Set 4 QTY
1
Certifications
A.D.A. Compliant
Yes
Sabbath Mode Star-K Certified
Yes
Product Dimensions and Weight
Depth
28 5/16"
Depth with Door Open 90˚
45 1/2"
Height Maximum
36 5/8"
Shipping Weight
250 Lbs.
Width
30"
Power
Amps at 240 / 208 Volts
17.9 /15.4
Connected Load kW Rating at 240/208 Volts
4.3 / 3.2
Gas Supply Connection Location
Right Bottom Rear
LP Gas Conversion Kit
Included
Minimum Circuit Required
30 Amps
Power Supply Connection Location
Left Bottom Rear
Voltage Rating
240V / 208V / 60 Hz
Cooktop Features
Left Front Burner
9,500 BTU
Left Rear Burner
15,000 BTU
Right Front Burner
750 to 17,000 BTU
Right Rear Burner
5,000 BTU
Features
Convection System
PowerPlus Dual Convection
Drawer Functionality
Warmer
Exterior Door Finish
Smudge-Proof Stainless Steel
Exterior Finish Side Panels
Black
Grates
Continuous Cast Iron with Black Matte Finish
Handle Design
Stainless Steel
Oven Cleaning System
Self-Clean
Oven Control / Timing System
Pro-Select
Sealed Gas Burners
Yes
Surface Type
Black Porcelain
Window
Extra-Large with Pro-Tint Finish
Oven Features
Bake Element / Broil Element
2,500 / 4,000 Watts
Baking System
Even Baking Technology
Broiling System
Variable
Capacity
4.6 Cu. Ft.
Drawer Rack
1 SpaceWise Half Rack
Hidden Bake Element
Yes
Oven Light
2
Rack Configuration
1 Heavy Duty, 1 SpaceWise Half-Rack, 1 Effortless
Oven Controls
Auto Oven Shut-Off
6 Hours
Bake / Broil
Yes / Variable (400 - 550 °F)
Convection Bake / Broil / Roast
Yes / Yes / Yes
Delay Clean
Yes
Delay Start
Yes
Effortless Convection Conversion
Yes
Keep Warm
Yes
Kitchen Timer / Timed Cook Option
Yes / Yes
Lower Drawer Control
Warmer, Low-Med-High
My Favorite
Yes
PowerPlus Preheat
Yes
Quick Clean Option
Yes
Self Clean / Clean Options
Yes / 2, 3, 4 Hours
Steam Clean
Yes
Cutout Dimensions
Depth Min. - Max.
21 3/4" - 22 1/8"
Height Min. - Max.
35 7/8" - 36 5/8"
Width Min. - Max.
29 15/16" - 30 1/16"
Oven Interior Dimensions
Depth
18 3/4"
Height
17 1/2"
Width
24 1/8"
