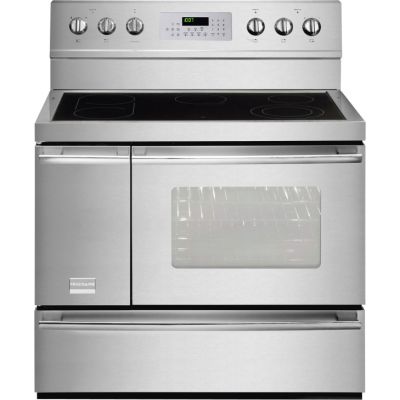

About the Frigidaire FPEF4085KF
- 40" Freestanding Electric Range with 6 Radiant Elements
- SpaceWise Bridge Element
- SpaceWise Expandable Element
- Keep Warm Zone
- 3.7 cu. ft. Main Oven Capacity
- True Convection
- Auxiliary Side Oven and Storage Drawer
Brand:
Series:
Professional
Style:
Freestanding
Width:
40 1/8"
Height:
48 1/8"
Depth:
28 1/2"
Capacity:
3.7 Cu. Ft.
Burners:
6
Convection:
Yes
Self Clean:
Yes
Griddle:
No
Grill:
No
Fuel Type:
Electric
Volts:
240/208 Volts
Amps:
40
Frigidaire's sleek, easy-to-install freestanding ranges feature the control panel on the back and are available in gas, electric or dual-fuel - which includes a gas cooktop and an electric oven. Choose the one that fits your cooking needs. All offer an array of PowerPlus features that deliver excellent results.
Key Features
SpaceWise Side Oven
- This range features an extra 1.7 cu. ft. SpaceWise Side Oven that gives you more space to cook multiple dishes at the same time
True Convection
- Multi-rack baking is faster and more even with True Convection
Pro-Select Controls
- Precise control at your fingertips
Keep Warm Zone/Keep Warm Setting
- Cooktop and oven can keep dinner warm until everything - and everyone - is ready
Real Stainless Steel
- Real stainless steel with a protective coating that reduces fingerprints and smudges so it's easy to clean
Delay Start
- Set your oven to begin cooking on your schedule
- It can be programmed from 1 to 24 hours
Effortless Convection
- Takes the guesswork out of convection cooking - oven does the converting for you
My Favorite Setting
- Easily program your most used setting to the touch of a button
SpaceWise Expandable Elements
- Flexible elements expand to your cooking needs
SpaceWise Bridge Element
- A flexible Element lets you combine two burners into one to fit larger cookware
Even Baking Technology
- Frigidaire's latest technology ensures even baking every time
Auto Shut-Off
- As an extra safety measure, the oven will automatically shut off after 6 hours
PowerPlus Clean
- For a heavy-duty clean with 25% more cleaning power
Rapid Clean
- For a quick, light oven cleaning
- One-touch Self Clean
- Start the self-cleaning cycle with just the touch of a button
Fits-More Cooktop
- The Fits-More cooktop features five elements so you can cook more at once
Manuals & Downloads
FPEF4085KF Owner's Guide
FPEF4085KF Wiring Diagram
FPEF4085KF Installation Instructions
Specifications
Technical Details
ADA Compliant
No
Amps
40
Ignition Type
Electronic
Oven Wattage
3000
Star-K Certified
Yes
Voltage
240/208 Volts
Oven Features
Broiler Element Location
Top
Convection
Yes
Delay Bake
Yes
Digital Temperature Display
Yes
Interior Oven Light
Yes
Oven Control Type
Touchpad
Primary Oven Capacity
3.7 Cu. Ft.
Proofing
No
Racks
4
Removable Door
Yes
Sabbath Mode
Yes
Secondary Oven Capacity
1.7 Cu. Ft.
Self-Cleaning
Yes
Temperature Probe
No
Timer
Yes
Cooktop Features
Burners / Elements
6
Cooktop Control Type
Knobs
Downdraft Ventilation
No
Griddle
No
Grill
No
Hot Surface Indicator Light
Yes
Induction
No
Modules Required
No
Appearance
Clock
Yes
Color
Stainless Steel
Cooktop
Smoothtop
Drawer
Storage
Fuel Type
Electric
Stainless Steel Handle
Yes
Style
Freestanding
Viewing Window
Yes
Dimensions
Depth
28 1/2"
Height
48 1/8"
Interior Depth
17 3/4"
Interior Height
15 3/4"
Interior Width
22 5/8"
Width
40 1/8"
Specifications:
Series
Professional
Burner Output
Set 1 Output
2000
Set 1 QTY
1
Set 2 Output
1800
Set 2 QTY
2
Set 3 Output
1200
Set 3 QTY
1
Set 4 Output
700
Set 4 QTY
1
Set 5 Output
100
Set 5 QTY
1
Certifications
Sabbath Mode (Star-K Certified)
Yes
Dimensions & Weights
Approximate Shipping Weight
235 lbs.
Auxiliary Oven Interior Depth
19 1/2"
Auxiliary Oven Interior Height
16"
Auxiliary Oven Interior Width
9 9/16"
Cutout Depth
24" min.
Cutout Height
36" (stand.)
Cutout Width
40 1/4" min.
Main Oven Interior Depth
17 3/4"
Main Oven Interior Height
15 3/4"
Main Oven Interior Width
22 5/8"
Product Depth
28 1/2"
Product Depth with Door Open 90°
44 5/8"
Product Height
48 1/8"
Product Width
40 1/8"
Auxiliary Oven Features
Bake Element/Broil Element
1,500/1,500 Watts
Capacity
1.7 cu. ft.
Oven Cleaning System
Manual Clean
Oven Control
Mechanical
Oven Light
Yes
Rack Configuration
1 Standard
Cooktop Features
Bridge Element
SpaceWise - (1) 700 Watts
Center Element
Keep Warm Zone - 100 Watts
Coil Cooktop
N/A
Drip Bowls
N/A
Left Front Element
7" - 1,800 Watts
Left Rear Element
7" - 1,800 Watts
Right Front Element
SpaceWise Expandable 6"/8" - 1,000/2,000 Watts
Right Rear Element
6" - 1,200 Watts
Specifications
Amps @ 240/208 Volts
53.0/46.0
Connected Load (kW Rating) @ 240/208 Volts
12.8/9.6
Gas Supply Connection Location
N/A
Minimum Circuit Required
40 Amps
Power Supply Connection Location
Middle Bottom Rear
Voltage Rating
240V / 208V / 60 Hz.
Main Oven Controls
Auto Oven Shutoff
6 Hours
Bake/Broil
Yes/Low and High
Convection Bake/Broil/Roast
Yes/No/Yes
Convection Conversion
Effortless
Delay Bake
Yes
Delay Clean
Yes
Keep Warm
Yes
Kitchen Timer/Timed Cook Option
Yes/Yes
My Favorite
Yes
Oven Lock-Out
Yes
Rapid/Quick Clean Option
Rapid
Features
Colors
Real Stainless Steel
Convection System
True Convection
Exterior Design (Side Panels)
Black
Exterior Door Finish
Real Stainless Steel
Grates
N/A
Handle Design
Stainless Steel
Main Oven Cleaning System
Self Clean
Main Oven Control/Timing System
Pro-Select
Nominal Width
40"
Sealed Gas Burners
N/A
Series
Frigidaire Professional
Side Compartment/Drawer Functionality
Oven/Storage
Surface Type
Black Ceramic Glass
Window
Extra-Large with Pro-Tint Finish
Main Oven Features
Bake Element
3,000 Watts
Broil Element
2,750 Watts
Broiling System
Vari-Broil Hi/Lo
Capacity
3.7 cu. ft.
Even Baking System
Yes
Hidden Bake Element
No
Oven Light
2
Rack Configuration
3 Heavy Duty
General
Manufacturer
Frigidaire Professional
