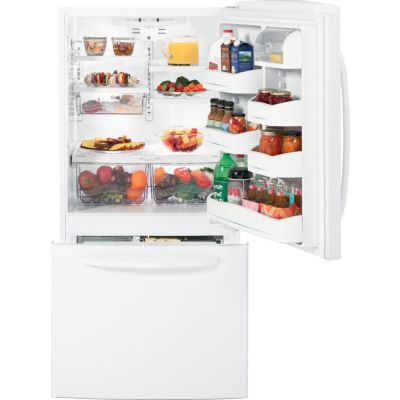

About the GE GDSC3KCYWW
- 22.7 cu. ft. Bottom Freezer Refrigerator with 4 Adjustable Spillproof Glass Shelves
- Two-Level Slide 'n Store System
- Adjustable-Humidity Crisper Drawers and Factory-installed Icemaker: White
GE's 22.9 Cu. Ft. bottom freezer refrigerator has premium storage for fresh and frozen foods. Glass spillproof shelves and humidity crisper drawers both adjust to create more space for larger items, as well as gallon door bins for beverages. The freezer automatically comes with an icemaker.
Now available at Designer Appliances.
Key Features
CleanSteel crown doors with hidden hinges
- Modern door design resists fingerprints, smudges and smears
Upfront temperature controls
- Easy-to-use controls are located in an easy-to-reach position
Factory-installed icemaker
- Refrigerator comes ready to automatically create ice
BrightSpace interior with GE Reveal lighting
- It's easy to find tasty treats under bright, clear interior lighting
Two-level Slide 'n Store system
- Keep all your frozen favorites within easy reach
Adjustable-humidity crispers
- Set the controls to keep foods just the way you like them
Snack drawer
- Conveniently stores favorite foods and allows for quick, easy access
GDSC3KCYWW Energy Guide
Specifications
Dimensions & Weights
Case Depth less Door Handle
33"
Width with Door Open 90? with Door Handle
36"
Case Depth without Door
28 3/4"
Air Clearances - Top
1"
Height to Top of Hinge
68 1/2"
Height to Top of Case
67 3/4"
Case Depth with Door Handle
35 1/8"
Air Clearances - Back
3/4"
Approximate Shipping Weight
308 lbs.
Width
32 3/4"
Air Clearances - Each Side
1/8"
Width with Door Open 90° with Door Handle
36"
Fresh Food Features
Upfront Temperature Controls
Electronic
Cabinet Shelves
4 Glass
Cabinet Shelves - Adjustable
4 Split
GE Water Filtration (Icemaker Only)
N/A
Cabinet Shelves - Spillproof
4
Crisper Drawers
2 Adjustable Humidity
Snack Drawer
Clear
Gallon Door Bins
5 (4 Adjustable, 1 Full-Width Fixed)
Snugger Clip
1
Dairy Compartment
Yes
BrightSpace Interior Lighting
GE Reveal
Quiet Design
Deluxe
NeverClean Condenser
Yes
Features
French-Door Model
N/A
Energy Star Qualified
Yes
Stainless Steel Model
N/A
Fresh Food Door Bins
5 Total; 4 Adjustable with Gallon Storage; 1 Fixed
Fresh Food Cabinet Drawers
1 Clear Snack Drawer; 2 Adjustable Humidity Drawers
Fresh Food Cabinet Shelves
3 Total; Glass; 2 Split; 1 Full Width
Freezer Storage Baskets
2 Wire; 1 Split; 1 Full Width
Temperature Management System
3 Electronic Sensors; Multiflow Air Tower
Control Type
Upfront Electronic Temperature Controls; Digital Temperature Display (1-9)
Defrost Type
Frost Guard
Icemaker
Factory Installed
Performance Features
Easily Removable Door Gasket; Never Clean Condenser
Dairy Compartment
Yes
Interior Lighting
Yes
Ice Bucket
Yes
Leveling System
2 Point Front Adjustable
Capacity
Total
22.7 cu. ft.
Fresh Food
16.3 cu. ft.
Freezer
6.5 cu. ft.
Appearance
Type
Freestanding
Style
Bottom Freezer
Size
Full Size
Door Style
One Door
Counter-Depth
No
Glass Door
No
Undercounter
No
Hinge Side
Right
Field Reversible Doors
No
Door Finish
Textured
Accepts Custom Panels
No
Door Color
White
Cabinet Color
White
Reversible Doors
Yes
French Door
No
Double Freezer Drawers
No
Freezer
Yes
Microfridge
No
Wine Racks (Category)
No
Dimensions
Width
32 3/4"
Depth
34 3/8"
Depth without Door and Handles
28 3/4"
Depth without Handles
32 1/2"
Depth with Door at 90?
62 3/4"
Height
69 3/8"
Height without Hinges
67 3/4"
Depth with Door at 90°
62 3/4"
Capacity
Refrigerator Capacity
16.4 cu. ft.
Freezer Capacity
6.7 cu. ft.
Total Capacity
23.1 cu. ft.
Freezer Features
Type of Shelves
Wire
No. of Shelves
1
Defrost
Frost-Free
Ice Maker
Yes
Ice Dispenser
No
Quick Freeze
Yes
No. of Baskets
2
Glass Shelves
No
Wire Shelves
Yes
Refrigerator Features
Slide-out Shelves
Yes
Spill Safe Shelves
Yes
Cantilever Shelves
Yes
Split Shelves
Yes
No. of Door Bins
5
Adjustable Door Bins
Yes
Gallon Door Storage
Yes
Humidity Controlled Crispers
2
Water Dispenser
No
Dairy Center
Yes
Clear Deli Drawer
Yes
Door Lock
No
Wine Bottle Holder
No
Can Dispenser
No
Digital Temperature Control
Yes
Sabbath Mode
No
Plastic Shelves
No
Stainless Steel Shelves
No
Technical Details
Energy Star Rated
Yes
CEE Rating
Tier II
Star-K Certified
No
ADA Compliant
No
Approved for Commercial Use
No
Approved for Medical Use
No
Approved for Outdoor Use
No
Amps
15
Voltage
120 Volts
Freezer Features
Factory-Installed Icemaker & Bin
Integrated
FrostGuard Technology
Yes
Ice 'N Easy Trays
No
Slide-Out Wire Basket(s)
1 Full-Width, 1 Split
Wire Compartment Shelves
No
Door Shelves
No
Interior Lighting
Yes
Exterior
Color(s) Available
Cleansteel, White, Black
Door Handles
Stainless
Exterior Design
Contoured with Crown Doors
Textured Steel Door and Case
Case Only (Gray)
Door Stops
Yes
Reversible Doors
Yes
Adjustable Rollers
Front
Power Ratings
Electrical
120V, 60Hz, 15Amps
Performance
Total Capacity
23.1 cu. ft.
Refrigerator Capacity
16.4 cu. ft.
Freezer Capacity
6.7 cu. ft.
Energy Star Qualified
Yes
Electrical Requirements
120v; 60Hz; 15A
Appearance
Configuration
Full Door with Pull-Out Drawer
Handle
Color Matched; Designer Style
Exterior Style
Free-Standing
Door Stops
Yes
Door Swing
Hinges on Right; Reversible
Exterior Design
Contoured; Crown Textured Door; Hidden Door Hinges
Warranty
Parts Warranty
Limited 1 Year Entire Appliance
Labor Warranty
Limited 1 Year Entire Appliance
Warranty Notes
See Written Warranty for Full Details
Dimensions and Weights
Product Width
32 3/4"
Product Depth
34 3/8"
Product Height
69 3/8"
Depth with Door Open 90°
62 3/4"
Depth without Handle
32 1/2"
Height to Top of Case
67 3/4"
Net Weight
286 Lbs.
Approximate Shipping Weight
315 Lbs.
Specifications:
Additional Style
One-Door Bottom Freezer
General
Manufacturer
GE
