discontinued
There is a newer model of this item:
Need help finding a replacement?
-
Call us at
888-714-4938

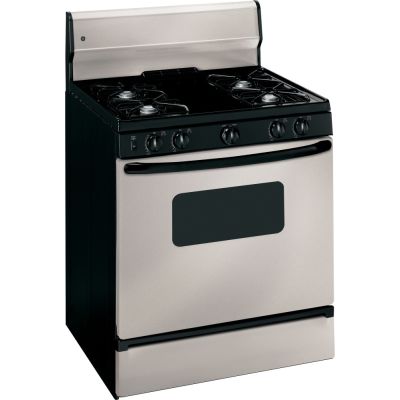

About the GE JGBS07SETSA
- 30" Freestanding Gas Range with 4 Open Burners
- 4.8 cu. ft. Manual Clean Oven
- Interior Light and Slide-Out Broiler Drawer: Silver
Brand:
Style:
Freestanding
Width:
30"
Height:
46 1/4"
Depth:
28 1/2"
Capacity:
4.8 cu. ft.
Burners:
4
Convection:
No
Self Clean:
No
Griddle:
No
Grill:
No
Fuel Type:
Gas
Volts:
120 Volts
Amps:
5
Looking For a New GE Range?
A new gas range or electric range should meet all your cooking needs for years to come: from warming a simple pan of soup for one person, to handling a large dinner party or holiday meal for the whole family. Plus, your stove should look great in your kitchen, and clean up with ease.
Key Features
Extra-Large Oven Capacity
- Provides a large oven interior ideal for cooking more items at once.
Standard Clean Oven
- Offers a traditional oven design that requires hand cleaning.
All Purpose Burners
- Deliver a wide range of heat output ideal for most cooking requirements.
Standard Grates
- Provide a sturdy and convenient cookware surface for everyday cooking.
ClearView Window
- Features a convenient viewing area to check the progress of food.
Two Oven Racks
- Feature a durable construction to help accommodate any size or type of cookware.
Six Rack Positions
- Provides flexibility and allows consumers to make the most of available oven capacity.
Interior Oven Light
- Supplies light to make viewing the progress of cooking easy and convenient.
Electronic Ignition
- Ensures a continuous flame and reignites automatically if accidentally extinguished.
Easy Clean Subtop
- Porcelain enameled subtop collects spills and messes for easy cleaning.
- Available at Designer Appliances.
- www.designerappliances.com
Manuals & Downloads
JGBS07SETSA Installation Instructions
JGBS07SETSA Quick Specs
JGBS07SETSA Use & Care Guide
Specifications
Features
Slide-Out Broiler Drawer
Yes
Porcelain-Enameled Subtop
Yes
Porcelain-Enameled Backguard
Yes
Embossed Rack Positions
6
Oven Racks
2
Leveling System
4 Leveling Legs
Interior Oven Light
Incandescent
Fuel Type
Natural Gas
Broiler Pan and Grid
Yes
Valves (Degree of Turn)
140°
Cooktop Burner Grate Material
Porcelain on Steel
All-Purpose Burners
(4) 9,100/850 BTU
Cooktop Surface
Porcelain-Enamel; Lift-Up
Cooktop Burner Type
Standard
Oven Cleaning Type
Standard Clean
Ignition System
Electronic
Oven Door Features
ClearView Oven Window
ADA Compliant
Yes
LP Conversion Kit
Included
Oven Rack Features
2 Oven Racks; 6 Embossed Rack Positions
Cooking System
Traditional
Slide Out Broiler Drawer
Drop Down Door
Ignition Type
Electronic
Porcelain Enameled Subtop
Yes
Capacity
Unit Capacity
Extra Large Oven
Total Capacity
4.8 Cu. Ft.
Appearance
Fuel Type
Gas
Style
Freestanding
Color
Silver
Cooktop
Sealed Burner
Continuous Grates
No
Stainless Steel Handle
No
Viewing Window
Yes
Drawer
Broiler
Clock
No
Dimensions
Width
30"
Depth
28 1/2"
Height
46 1/4"
Interior Width
24"
Interior Depth
19"
Interior Height
18 1/2"
Burner Output
Set 1 QTY
4
Set 1 Output
9100
Cooktop Features
Burners / Elements
4
Cooktop Control Type
Knobs
Downdraft Ventilation
No
Modules Required
No
Hot Surface Indicator Light
No
Induction
No
Grill
No
Griddle
No
Oven Features
Primary Oven Capacity
4.8 cu. ft.
Oven Control Type
Knobs
Digital Temperature Display
No
Timer
No
Convection
No
Self-Cleaning
No
Delay Bake
No
Proofing
No
Sabbath Mode
No
Broiler Element Location
Bottom
Temperature Probe
No
Interior Oven Light
Yes
Racks
2
Removable Door
Yes
Technical Details
Star-K Certified
No
ADA Compliant
Yes
Ignition Type
Electronic
Oven BTUs
18000
LP Conversion
Yes
Amps
5
Voltage
120 Volts
Power / Ratings
Oven/Broiler BTU Rating - LP
16,500 BTU
Oven/Broiler BTU Rating - Nat. Gas
18,000 BTU
Top Burner BTU Rating - LP
(4) 8,000 BTU
Top Burner BTU Rating - Nat. Gas
(4) 9,100 BTU
Volts/Hertz/Amps
120V; 60Hz; 5A
Warranty
Parts Warranty
Limited 1 Year Entire Appliance
Labor Warranty
Limited 1 Year Entire Appliance
Warranty Notes
See Written Warranty for Full Details
Dimensions and Weights
Oven Interior Width
24"
Oven Interior Depth
19"
Oven Interior Height
18 1/2"
Overall Width
30"
Overall Depth
26 1/4"
Overall Height
45 1/2"
Net Weight
145 Lbs.
Approx. Shipping Weight
165 Lbs.
Product Width
30"
Product Depth
28 1/2"
Product Height
46 1/4"
Depth with Door Open
46 1/4"
Depth without Handle
26"
Approximate Shipping Weight
165 Lbs.
Performance
Total Capacity
4.8 cu. ft.
Burner - Right Front
9,100 BTU
Burner - Left Front
9,100 BTU
Burner - Right Rear
9,100 BTU
Burner - Left Rear
9,100 BTU
Appearance
Cooktop Surface
Lift Up; Porcelain-Enamel
Handle
Color Matched; Designer Style
Oven Door Feature
Oven Window
Power Rating
Top Burner BTU Rating - LP (000's BTU's)
(4) 8.0
Top Burner BTU Rating - Nat. Gas (000's BTU's)
(4) 9.1
Volts/Hertz/Amps
120V; 60Hz; 5A
Bake/Broiler BTU Rating - LP (000's BTU's)
16.5
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's)
18.0
General
Manufacturer
GE
