discontinued
There is a newer model of this item:
Need help finding a replacement?
-
Call us at
888-714-4938

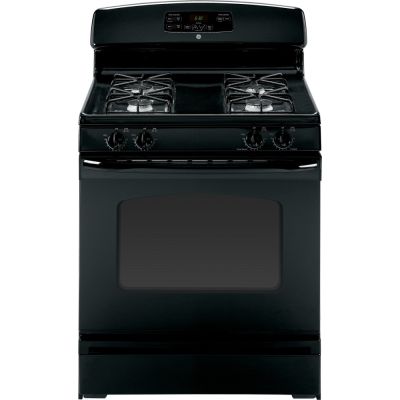

About the GE JGBS23DETBB
- 30" Freestanding Gas Range with 4 Sealed Burners
- 12,500 BTU Burner
- 4.8 cu. ft. Steam Clean Oven
- Delay Start and Storage Drawer: Black
Brand:
Style:
Freestanding
Width:
30"
Height:
46 1/4"
Depth:
28 3/4"
Capacity:
4.8 cu. ft.
Burners:
4
Convection:
No
Self Clean:
No
Griddle:
No
Grill:
No
Fuel Type:
Gas
Volts:
120 Volts
Amps:
5
Looking For A New GE Range?
A new gas range or electric range should meet all your cooking needs for years to come: from warming a simple pan of soup for one person, to handling a large dinner party or holiday meal for the whole family. Plus, your stove should look great in your kitchen, and clean up with ease.
Key Features
4.8 Cu. Ft. Capacity
- More room for cooking more dishes at once.
Steam Clean Cycle
- The power of steam loosens baked-on foods and assists in oven cleaning.
High Output Burner
- This 12,500 BTU burner element provides the high heat ideal for frying or sauteing and fast heat-up.
Precise Simmer Burner
- Delivers a low setting of 140 degrees, ideal for delicate foods and sauces.
Big Hearth Window
- Elegant shaped window makes it easy to monitor the progress of food.
- Available at Designer Appliances.
- www.designerappliances.com
Manuals & Downloads
JGBS23DETBB Installation Instructions
JGBS23DETBB Quick Specs
JGBS23DETBB Use & Care Guide
Specifications
Appearance
Fuel Type
Gas
Style
Freestanding
Color
Black
Cooktop
Sealed Burner
Continuous Grates
No
Stainless Steel Handle
No
Viewing Window
Yes
Drawer
Broiler
Clock
Yes
Dimensions
Width
30"
Depth
28 3/4"
Height
46 1/4"
Interior Width
24"
Interior Depth
19"
Interior Height
18 1/2"
Burner Output
Set 1 QTY
1
Set 1 Output
12500
Set 2 QTY
2
Set 2 Output
9500
Set 3 QTY
1
Set 3 Output
5000
Cooktop Features
Burners / Elements
4
Cooktop Control Type
Knobs
Downdraft Ventilation
No
Modules Required
No
Hot Surface Indicator Light
No
Induction
No
Grill
No
Griddle
No
Oven Features
Primary Oven Capacity
4.8 cu. ft.
Oven Control Type
Digital
Digital Temperature Display
Yes
Timer
Yes
Convection
No
Self-Cleaning
No
Delay Bake
Yes
Proofing
No
Sabbath Mode
Yes
Broiler Element Location
Bottom
Temperature Probe
No
Interior Oven Light
Yes
Racks
2
Removable Door
Yes
Technical Details
Star-K Certified
Yes
ADA Compliant
No
Ignition Type
Electronic
Oven BTUs
18000
LP Conversion
Yes
Amps
5
Voltage
120 Volts
Oven Control Features
Certified Sabbath Mode
Yes
Auto Oven Shut-Off
Yes
Audible Preheat Signal
Yes
Control Lock Capability
Yes
Delay Start
Yes
Electronic Clock and Timer
Yes
Hi / Low Broil
Yes
Sabbath Mode
Certified
Delay Bake Option
Yes
Hi/Low Broil
Yes
Oven Control Lock Capability
Yes
Features
Oven Interior Light
Yes
Scratch-Resistant Backguard
Porcelain-Enameled
Porcelain-Enameled Backguard
Yes
Embossed Rack Positions
6
Oven Racks
2
Leveling System
4 Leveling Legs
Fuel Type
Natural Gas
Broiler Pan and Grid
Yes
Cooking Technology
Traditional
Control Type
Electronic Touch
Valves (Degree Of Turn)
270°
Precise Simmer Burner
(1) 5,000 BTU
High Output Burner
(1) 12,500 BTU
All-Purpose Burners
(2) 9,500 BTU
Cooktop Burner Grate Material
Heavy Steel
Cooktop Surface
One-Piece Unswept; Porcelain Enamel
Cooktop Burner Type
Sealed
Temperature Management System
TrueTemp System
Oven Cleaning Type
Standard Clean
Ignition System
Electronic
Configuration
Range with Storage Drawer
Total Capacity
4.8 Cu. Ft.
Interior Oven Light
Incandescent
Slide Out Broiler Drawer
Yes
Oven Rack Features
2 Oven Racks; 6 Embossed Rack Positions
Ignition Type
Electronic
Appearance
Control Knobs
Color Matched
Frameless Oven Door(s)
Yes
Big Hearth Oven Window
Yes
Configuration
Range with Broiler Drawer
Handle
Color Matched; Designer Style
Oven Door Features
Big View Oven Window
Power / Ratings
Oven/Broiler BTU Rating - LP
16,500 BTU's
Oven/Broiler BTU Rating - Natural Gas
18,000 BTU's
Top Burner BTU Rating - LP
(1) 11,000; (2) 9,500; (1) 5,000 BTU's
Top Burner BTU Rating - Natural Gas
(1) 12,500; (2) 9,500, (1) 5,000 BTU's
Volts/Hertz/Amps
120V; 60Hz; 5A
LP Conversion Kit
Included
Warranty
Parts Warranty
Limited 1 Year Entire Appliance
Labor Warranty
Limited 1 Year Entire Appliance
Warranty Notes
See Written Warranty for Full Details
Dimensions and Weights
Oven Interior Width
24"
Oven Interior Depth
19"
Oven Interior Height
18 1/2"
Overall Width
30"
Overall Depth
26 1/4"
Overall Depth with Oven Door Open 90?
46 1/4"
Overall Height
46 1/2"
Overall Height To Cooking Surface
36 1/4" +/- 1/4"
Net Weight
150 Lbs.
Approx. Shipping Weight
180 Lbs.
Overall Depth with Oven Door Open 90°
46 1/4"
Product Width
30"
Product Depth
28 3/4"
Product Height
46 1/4"
Depth with Door Open
46 1/4"
Depth without Handle
26"
Height to Cooking Surface
36"
Approximate Shipping Weight
172 Lbs.
Performance
Total Capacity
4.8 cu. ft.
Burner - Right Front
12,500 BTU
Burner - Left Front
9,500 BTU
Burner - Right Rear
5,000 BTU Precise Simmer
Burner - Left Rear
9,500 BTU
Power Rating
Top Burner BTU Rating - LP (000's BTU's)
(4) 8.0
Top Burner BTU Rating - Nat. Gas (000's BTU's)
(4) 9.5
Volts/Hertz/Amps
120V; 60Hz; 5A
Bake/Broiler BTU Rating - LP (000's BTU's)
16.5
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's)
18.0
General
Manufacturer
GE
