discontinued
There is a newer model of this item:
Need help finding a replacement?
-
Call us at
888-714-4938

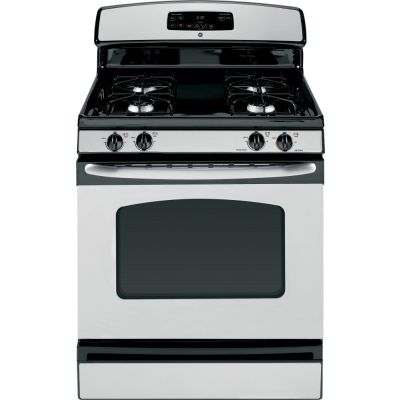

About the GE JGBS23SETSS
- 4 Sealed Burners
- 12,500 BTU Burner
- 4.8 cu. ft. Steam Clean Oven
- Delay Start
- Storage Drawer
Brand:
Style:
Freestanding
Width:
30"
Height:
46 1/2"
Depth:
26 1/4"
Capacity:
4.8 Cu. Ft.
Burners:
4
Convection:
No
Self Clean:
No
Griddle:
No
Grill:
No
Fuel Type:
Gas
Volts:
120 Volts
Amps:
5
Looking For A New GE Range?
A new gas range or electric range should meet all your cooking needs for years to come: from warming a simple pan of soup for one person, to handling a large dinner party or holiday meal for the whole family. Plus, your stove should look great in your kitchen, and clean up with ease.
Key Features
4.8 Cu. Ft. Capacity
- More room for cooking more dishes at once.
Steam Clean Cycle
- The power of steam loosens baked-on foods and assists in oven cleaning.
High Output Burner
- This 12,500 BTU burner element provides the high heat ideal for frying or sauteing and fast heat-up.
Precise Simmer Burner
- Delivers a low setting of 140 degrees, ideal for delicate foods and sauces.
Big Hearth Window
- Elegant shaped window makes it easy to monitor the progress of food.
- Available at Designer Appliances.
- www.designerappliances.com
Manuals & Downloads
JGBS23SETSS Installation Instructions
JGBS23SETSS Quick Specs
JGBS23SETSS Use & Care Guide
Specifications
WEIGHTS & DIMENSIONS
Depth with Door Open 90°
46 1/4 in
Approximate Shipping Weight
185 lb
Cabinet Width
30 in
Net Weight
165 lb
Oven Interior Dimensions (W x H x D) (in.)
24 x 18-1/2 x 19
Overall Depth
26 1/4 in
Overall Height
46 1/2 in
Height to Cooking Surface (in.)
36 1/4 +/- 1/4
Overall Width
30 in
POWER / RATINGS
Bake/Broiler BTU Rating - LP (000's BTU's)
16.5
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's)
18.0
Top Burner BTU Rating - LP (000's BTU's)
(1) 11.0; (2) 9.5; (1) 5.0
Top Burner BTU Rating - Nat. Gas (000's BTU's)
(1) 12.5; (2) 9.5, (1) 5.0
Volts/Hertz/Amps
120V; 60Hz; 5A
FEATURES
Oven Rack Features
2 Oven Racks6 Embossed Rack Positions
Porcelain-Enameled Backguard
Yes
Scratch-Resistant Backguard
Porcelain-Enameled
Slide - Out Broiler Drawer
Yes
Oven Interior
Interior Oven Light
Cooking Technology
Traditional
Broiler Pan and Grid
Yes
Fuel Type
Natural Gas (factory set)
Leveling System
4 Leveling Legs
One-Piece Drip Pans
Optional Accessory
Oven Control Features
Audible Preheat SignalAuto Oven Shut-OffCertified Sabbath ModeControl Lock CapabilityElectronic Clock and TimerHi / Low Broil
Control Type
Electronic Oven Controls
Valves (Degree of Turn)
270
Cooktop Burner Grate Material
Deluxe Porcelain SteelSquare
Burner - Right Rear
5,000 BTU Precise Simmer
Burner - Right Front
12,500 BTU
Burner - Left Rear
9,500 BTU
Burner - Left Front
9,500 BTU
Cooktop Surface
One-Piece UpsweptPorcelain-Enamel
Cooktop Burner Type
Sealed
Temperature Management System
True Temp System
Oven Cleaning Type
Standard Clean with Steam Option
Ignition System
Electronic
Configuration
Range with Broiler Drawer
CAPACITY
Total Capacity (cubic feet)
4.8 cu ft
APPEARANCE
Color Appearance
Stainless Steel/Black
Control Knobs
Designer-Style
Cooktop Burner Grate Color
Black
Frameless Oven Door(s)
Stainless Steel
Handle Design
D-shaped
Handle Color
Stainless Steel
Oven Door Features
Big Hearth Oven Window
Appearance
Fuel Type
Gas
Style
Freestanding
Color
Stainless Steel
Cooktop
Sealed Burner
Continuous Grates
No
Stainless Steel Handle
Yes
Viewing Window
Yes
Drawer
Broiler
Clock
Yes
Fuel Subtype
Natural Gas
Dimensions
Width
30 Inch
Depth
26 1/4 Inch
Height
46 1/2 Inch
Interior Width
24 Inch
Interior Depth
19 Inch
Interior Height
18 1/2 Inch
Burner Output
Set 1 QTY
1
Set 1 Output
12500
Set 2 QTY
2
Set 2 Output
9500
Set 3 QTY
1
Set 3 Output
5000
Burner 1 Output
12500
Burner 2 Output
9500
Burner 3 Output
5000
Cooktop Features
Burners / Elements
4
Cooktop Control Type
Knobs
Downdraft Ventilation
No
Modules Required
No
Hot Surface Indicator Light
No
Induction
No
Grill
No
Griddle
No
Oven Features
Primary Oven Capacity
4.8 Cu. Ft.
Oven Control Type
Touchpad
Digital Temperature Display
Yes
Timer
Yes
Convection
No
Self-Cleaning
No
Delay Bake
No
Proofing
No
Sabbath Mode
Yes
Broiler Element Location
Bottom
Temperature Probe
No
Interior Oven Light
Yes
Racks
2
Removable Door
Yes
Broiler Pan Included
No
Proof Mode
No
Technical Details
Star-K Certified
Yes
ADA Compliant
No
Ignition Type
Electronic
Oven BTUs
18,000
LP Conversion
Yes
Amps
5
Voltage
120 Volts
ACCESSORIES
LP Conversion Kit
Included
WARRANTY
Parts Warranty
Limited 1-year entire appliance
Labor Warranty
Limited 1-year entire appliance
Warranty Notes
See written warranty for full details
Product Information
Brand
GE
Model
JGBS23SETSS
UPC
084691235637
Capacity
Number of Burners
4
Shabbos Compliance
Certification
STAR-K
General
Manufacturer
GE
