discontinued
There is a newer model of this item:
Need help finding a replacement?
-
Call us at
888-714-4938
Frequently Bought Together
3 Item(s)

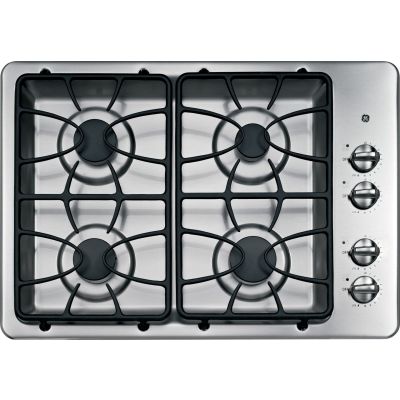

About the GE JGP329SETSS
- 4 Sealed Burners
- 11,000 BTU Burner
- Precise Simmer Burner
- Matte Grates
- Dishwasher-Safe Knobs
Brand:
Cooktop Type:
Cooktop
Finish:
Stainless Steel
Fuel Type:
Gas
Style:
Sealed Burner
Width:
30"
Height:
3 3/16"
Depth:
21"
Cutout Width:
28 1/2"
Cutout Depth:
19 5/8"
Volts:
120 Volts
Amps:
15
Looking For A New Cooktop?
Available in both gas and electric, kitchen cooktops are independent from the oven cavity. They are designed to have an integrated look with kitchen countertops. A cooktop can be installed over a built-in wall oven or warming drawer, or simply on its own in a countertop or kitchen island. The design possibilities in your kitchen are almost endless!
Key Features
Deep-Recessed Cooktop
- Deep-recessed cooktop contains spills in one area that's easy to wipe clean.
Sealed Cooktop Burners
- Burner elements are sealed to the cooktop to keep foods and liquid contained on the cooktop, making cleaning painless.
High Output Burner
- This 11,000 BTU burner element provides the high heat ideal for frying or sauteing and fast heat-up.
Precise Simmer Burner
- Allows for low, even heat distribution that is ideal for delicate foods and sauces.
Matte Grates
- Matte grate's robust appearance and sturdy design are long lasting and great looking.
All Purpose Burners
- All-purpose burner delivers two levels of BTU output to accommodate virtually all your cooking needs.
Dishwasher-Safe Grates and Knobs
- Feature durable construction for worry-free, effortless cleaning and maintenance.
- Available at Designer Appliances.
- www.designerappliances.com
JGP329SETSS Installation Instructions
Key Features
Fit Guarantee
Replacing a similar cooktop from GE or another brand? GE cooktops are guaranteed for an exact fit to make replacement easy. See offer criteria and details
Specifications
Features
Cooktop Burner Grate Material
Medium Cast
Ignition System
Electronic
Control Location
Right Side
Control Type
Manual; Lo (1-9) Hi
Continuous Grates
Yes
Dishwasher Safe Grates
Yes
Cooktop Burner Type
4 Sealed
ADA Compliant
Yes
Valves (Degree Of Turn)
270°
Precise Simmer Burner
(1) 5,000 BTU
High Output Burner
(1) 11,000 BTU
All-Purpose Burners
(2) 9,500 BTU
Fuel Type
Natural Gas (Factory Set)
Warranty
Labor Warranty
Limited 1-Year Entire Appliance
Parts Warranty
Limited 1-Year Entire Appliance
Warranty Notes
See Written Warranty For Full Details
Power / Ratings
LP Conversion Kit
Included
Volts/Hertz/Amps
120V; 60Hz; 5A
Burner BTU Ratings - Natural Gas
(1) 11,000; (2) 9,500; (1) 5,000 BTU's
Burner BTU Ratings - LP Gas
(1) 10,000; (2) 9,100; (1)5,000 BTU's
Dimensions and Weights
Overall Width
30"
Overall Depth
21"
Approx. Shipping Weight
44 Lbs.
Net Weight
39 Lbs.
Cutout Depth
19 5/8"
Cutout Width
28 1/2"
Overall Height
3 3/16"
Burner
Burner 3 Output
5000
Burner 2 Output
9500
Burner 1 Output
11000
Appearance
Number of Burners
4
Type
Drop-In
Trim Color
Stainless Steel
Surface Color
Stainless Steel
Color
Stainless Steel
Continuous Grates
Yes
Cooktop
Cooktop
Style
Sealed Burner
Fuel Type
Gas
Product Information
Warranty Terms
1 year ?GE Appliances are backed by a one year warranty. For additional details, visit https://www.geappliances.com/ge/service-and-support/
UPC
084691233084
Model
JGP329SETSS
Brand
GE
Function
Burners / Elements
4
Sabbath Mode
No
Hot Surface Indicator Light
No
Induction
No
Downdraft Venting
No
Control Type
Knobs
Burners
4
Burner Output
Set 3 QTY
1
Set 2 Output
9500
Set 2 QTY
2
Set 1 Output
11000
Set 1 QTY
1
Set 3 Output
5000
Grill
No
Griddle
No
Dimensions
Cutout Depth
19 5/8 Inch
Cutout Width
28 1/2 Inch
Actual Height
3 3/16 Inch
Actual Depth
21 Inch
Actual Width
30 Inch
Technical Details
Voltage
120 Volts
Amps
15
LP Conversion
Yes
Modules Required
No
Ignition Type
Electronic
Star-K Certified
No
ADA Compliant
Yes
General
Manufacturer
GE
