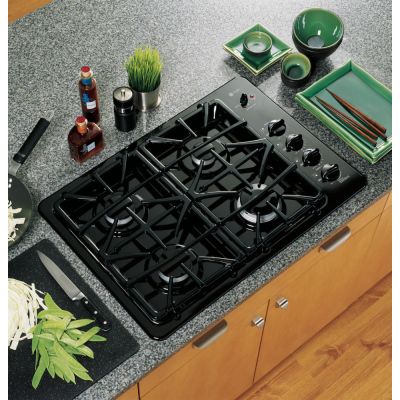

GE JGP945BEKBB 30" Gas Cooktop with 4 Sealed Burners, Dual-Flame Stacked 18,000 BTU Burner, Precise Simmer Burners, Control Lock Capability and ADA Compliant: Black

  • Brand: GE
  • Item: JGP945BEKBB
discontinued

Need help finding a replacement?

John Carey
About the GE JGP945BEKBB
  • 30" Gas Cooktop with 4 Sealed Burners
  • Dual-Flame Stacked 18,000 BTU Burner
  • Precise Simmer Burners
  • Control Lock Capability and ADA Compliant: Black
Brand:
Cooktop Type:
Cooktop
Finish:
Black
Fuel Type:
Gas
Style:
Sealed Burner
Width:
30"
Height:
3 3/16"
Depth:
21"
Cutout Width:
28 1/2"
Cutout Height:
3 3/16"
Cutout Depth:
19 5/8"
Volts:
120 Volts
Amps:
10
GE Consumer and Industrial spans the globe as an industry leader in major appliance, lighting and integrated industrial equipment systems and services. They provide solutions for commercial, industrial and residential use in more than 100 countries which uses innovative technologies and "ecomagination." It's a GE initiative to aggressively bring to market new technologies that help customers and consumers meet pressing environmental challenges to deliver comfort, convenience and electrical protection and control. GE brings imagination to work.

With its deep recessed cooktop, the JGP945 was designed to help contain spills and make cleaning easier. The sealed cooktop burners eliminate the space between the burners and the cooktop to help contain spills and boil over liquids. The JGP945 features a dual-flame stacked burner, which is a unique two-in-one burner design for 18,000 BTU boiling or gentle 140&#176 simmering.
Key Features
Key Features
  • Deep Recessed Cooktop
  • Designed with a recessed surface to help contain spills and make cleaning easy.
  • Sealed Cooktop Burners
  • Eliminate the space between the burners and the cooktop to help contain spills and boil over liquids, ensuring easy cleanup.
  • Dual-Flame Stacked 18,000 BTU Burner
  • Features a unique two-in-one burner design for 18,000 BTU boiling or gentle 140 degree simmering.
  • Precise Simmer Burners
  • Delivers a low setting of 140 degrees, ideal for delicate foods and sauces.
  • Continuous Grates
  • Provide a flat, sturdy surface allowing easy movement of pans between burners.
  • Control Lock Capability
  • Shuts off gas to prevent unintended activation.
  • Dishwasher-Safe Grates and Knobs
  • Heavy-Duty Knobs (on Stainless Steel Model Only)
Specifications
Technical Details
Voltage
120 Volts
Amps
10
ADA Compliant
Yes
Modules Required
No
LP Conversion
Yes
Ignition Type
Electronic
Features
ADA Compliant
No
All-Purpose Burners 000's BTU
1 @ 11.0/150 Degree Simmer, 1 @ 9.5/150 Degree Simmer
Continuous Grates
Yes
Control Lock Capability
Yes
Precise Simmer Burners 000's BTU
1 @ 5.0/140 Degree Simmer
PowerBoil Burner 000's BTU
N/A
Electronic Pilotless Ignition
Yes
Dual-Flame Stacked Burner 000's BTU
1 @ 18.0/140 Degree Simmer
Dishwasher-Safe Grates and Knobs
Yes
Cooktop Surface
Deep Porcelain
Cooktop Grates
Black Deluxe-Cast
Cooktop Burners
4 Sealed
Controls
Right Side
Control Panel
Black
Power/Ratings
Gas Cooktop Electrical Ratings
120V, 60Hz, 5A
Burners 000's BTU (Natural Gas/LP Gas)
1 @ 18.0/15.0, 1 @ 11.0/10.0, 1 @ 9.5/9.1, 1 @ 5.0/5.0
Dimensions
Overall Width
30"
Overall Height
3 3/16"
Overall Depth
21"
Minimum Spacing to Right Wall
6"
Minimum Spacing to Left Wall
3 1/4"
Minimum Spacing to Back Wall
2 1/4"
Minimum Front Countertop Clearance
2 1/2"
Cutout Width
28 1/2"
Cutout Depth
19 5/8"
Burner Output
Set 4 QTY
1
Set 4 Output
5000
Set 3 QTY
1
Set 3 Output
9500
Set 2 QTY
1
Set 2 Output
11000
Set 1 QTY
1
Set 1 Output
18000
Grill
No
Griddle
No
Appearance
Surface Color
Black
Style
Sealed Burner
Cooktop
Cooktop
Continuous Grates
Yes
Color
Black
Fuel Type
Gas
Appearance
Heavy-Duty Knobs
Stainless Model Only
Dimensions
Cutout Depth
19 5/8"
Actual Width
30"
Actual Height
3 3/16"
Cutout Height
3 3/16"
Cutout Width
28 1/2"
Actual Depth
21"
Function
Control Type
Knobs
Burners
4
Downdraft Venting
No
Sabbath Mode
No
General
Series
Profile
Manufacturer
GE
