GE JGP975WEKWW 36" Gas Cooktop with 5 Sealed Burners, Precise Simmer Burners, Dual-Flame Stacked 18,000 BTU Burner, Control Lock Capability and ADA Compliant: White

Brand: GE
Item: JGP975WEKWW

discontinued

There is a newer model of this item:

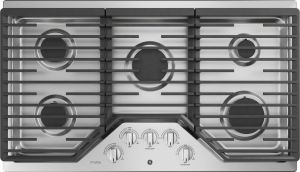

GE PGP7036SLSS

Need help finding a replacement?

Call us at 888-714-4938

Save to Project

About the GE JGP975WEKWW

36" Gas Cooktop with 5 Sealed Burners
Precise Simmer Burners
Dual-Flame Stacked 18,000 BTU Burner
Control Lock Capability and ADA Compliant: White

Brand:

Cooktop Type:

Cooktop

Finish:

White

Fuel Type:

Style:

Sealed Burner

Width:

Height:

3 1/4"

Depth:

20 3/4"

Cutout Width:

33 7/8"

Cutout Height:

3 3/16"

Cutout Depth:

19 1/8"

Volts:

120 Volts

Amps:

GE Consumer and Industrial spans the globe as an industry leader in major appliance, lighting and integrated industrial equipment systems and services. They provide solutions for commercial, industrial and residential use in more than 100 countries which uses innovative technologies and "ecomagination." It's a GE initiative to aggressively bring to market new technologies that help customers and consumers meet pressing environmental challenges to deliver comfort, convenience and electrical protection and control. GE brings imagination to work.

One of GE's most ingenious invention, featured on the JGP975 is its control lock capability that shuts off the gas to prevent unintended activation. Only GE has it!! The JGP975 also features a unique dual-flame stacked burner with the ideal high and low heat output for accelerated boiling and gentle simmering.

Key Features

Deep-Recessed Cooktop
Designed with a recessed surface to help contain spills and make cleaning easy.
Sealed Cooktop Burners
Eliminate the space between the burners and the cooktop to help contain spills and boil over liquids, ensuring easy cleanup.
Control Lock Capability
Shuts off gas to prevent unintended activation.
Dual-Flame Stacked 18,000 BTU Burner
Features a unique two-in-one burner design for 18,000 BTU boiling or gentle 140 degree simmering.
Precise Simmer Burners
Delivers a low setting of 140 degrees, ideal for delicate foods and sauces.
Continuous Grates
Provide a flat, sturdy surface allowing easy movement of pans between burners.
Dishwasher-Safe Grates and Knobs
Heavy Duty Knobs (on stainless model only)

Manuals & Downloads

JGP975WEKWW Quick Specs

JGP975WEKWW Use & Care Guide

Specifications

Dimensions and Weights

Overall Depth

20 3/4"

Overall Height

3 1/4"

Overall Width

Net Weight

49 Lbs.

Approx. Shipping Weight

54 Lbs.

Cutout Depth

19 1/8"

Cutout Width

33 7/8"

Features

All-Purpose Burners

(2) 9,100 BTU

All-Purpose Burners 000's BTU

1 @ 11.0/150 Degree Simmer, 1 @ 9.5/150 Degree Simmer

Continuous Grates

Control Location

Front Center

Control Lock Capability

Control Panel

White

Control Type

Manual; Simmer (1-9) Hi

Controls

Upfront

ADA Compliant

Cooktop Burner Grate Material

Heavy Cast

Cooktop Burner Type

5 Sealed

Cooktop Burners

5 Sealed

PowerBoil Burner 000's BTU

Precise Simmer Burners 000's BTU

2 @ 5.0/140 Degree Simmer

Self-Clean Grates

Valves (Degree Of Turn)

PowerBoil Burner

(1) 17,000 BTU

Ignition System

Electronic

High Output Burner

(1) 11,000 BTU

Cooktop Grates

Grey Deluxe-Cast

Cooktop Surface

Deep Porcelain

Dishwasher Safe Grates

Dishwasher-Safe Grates and Knobs

Dual Flame Stacked Burners

(1) 17,000 BTU

Dual-Flame Stacked Burner 000's BTU

1 @ 18.0/140 Degree Simmer

Electronic Pilotless Ignition

Fuel Type

Natural Gas (Factory Set)

Grates Color

Matte Black

Warranty

Warranty Notes

See Written Warranty For Full Details

Parts Warranty

Limited 1-Year Entire Appliance

Labor Warranty

Limited 1-Year Entire Appliance

Power / Ratings

Burner BTU Ratings - LP Gas

(1) 14,000; (1) 10,000; (2) 9,100; (1) 5,000 BTU's

Burner BTU Ratings - Natural Gas

(1) 17,000; (1) 11,000; (2) 9,100; (1) 5,000 BTU's

LP Conversion Kit

Included

Volts/Hertz/Amps

120V; 60Hz; 5A

Power/Ratings

Burners 000's BTU (Natural Gas/LP Gas)

1 @ 18.0/15.0, 1 @ 11.0/10.0, 1 @ 9.5/9.1, 2 @ 5.0/5.0

Gas Cooktop Electrical Ratings

120V, 60Hz, 5A

Appearance

Heavy-Duty Knobs

Stainless Model Only

Technical Details

Star-K Certified

Voltage

120 Volts

Ignition Type

Electronic

ADA Compliant

LP Conversion

Modules Required

Appearance

Style

Sealed Burner

Surface Color

White

Trim Color

White

Fuel Type

Cooktop

Continuous Grates

Color

White

Dimensions

Actual Depth

20 3/4"

Cutout Depth

19 1/8"

Cutout Height

3 3/16"

Cutout Width

33 7/8"

Actual Height

3 1/4"

Actual Width

Function

Downdraft Venting

Hot Surface Indicator Light

Control Type

Knobs

Burners

Induction

Sabbath Mode

Burner Output

Griddle

Grill

Set 4 QTY

Set 1 Output

17000

Set 1 QTY

Set 2 Output

11000

Set 2 QTY

Set 3 Output

Set 3 QTY

Set 4 Output

Dimensions

Minimum Front Countertop Clearance

2 1/2"

Minimum Spacing to Back Wall

2 1/4"

Minimum Spacing to Left Wall

3 1/4"

Minimum Spacing to Right Wall

Overall Depth

Overall Height

3 3/16"

Overall Width

Cutout Width

33 7/8"

Cutout Depth

19 1/8"

General

Series

Profile

Manufacturer
