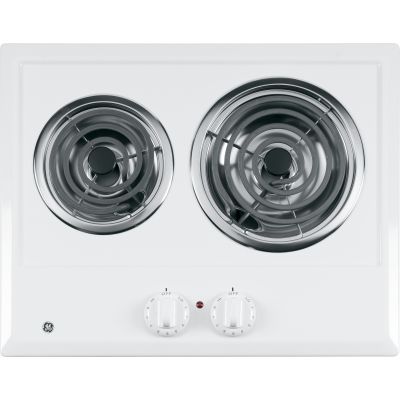

About the GE JP202DWW
- 2 Coil Elements
- Removable Drip Bowls
- Upfront Controls
- ADA Compliant
Brand:
Cooktop Type:
Cooktop
Finish:
White
Fuel Type:
Electric
Style:
Coil
Width:
21 1/4"
Height:
3 1/4"
Depth:
16 5/8"
Cutout Width:
20 1/8"
Cutout Height:
3 1/4"
Cutout Depth:
16 1/8"
Volts:
240/208 Volts
Amps:
20
For a low cost way to add some extra burners to your kitchen, upgrade a studio, office, or bar, or just where ever you need a little extra cooking power, this cooktop by GE provides a straightforward solution.
Key Features
Key Features
- Compact Cooktop
- Smaller cooktop is ideal for 21" cooktop installations.
- One 8" and One 6" Plug-In Calrod Heating Element
- Provides consistent and even heat on the cooktop with a plug-in element that is removable for easy cleaning.
- Chrome Removable One-Piece Drip Bowls
- Contain minor spills and are removable for easy cleaning.
- Heating Element "On" Indicator Light
- Illuminates when the cooking surface is activated.
Installation Notes
- Required free area between the bottom of the cooktop and any combustible material is 1 1/2" minimum.
- Free area not required when installing over wall oven.
- Approved for use over GE under sink dishwasher model GSM2100.
- Refer to cooktop installation instructions packed with product for current dimensional data.
Manuals & Downloads
JP202DWW Installation Instructions
JP202DWW Owner's Manual
JP202DWW Specification Sheet
Specifications
Product Information
Warranty Terms
1 year ? GE Appliances are backed by a one year warranty. For additional details, visit https://www.geappliances.com/ge/service-and-support/
UPC
084691054481
Brand
GE
Model
JP202DWW
Power/Ratings
KW Rating @ 208V
2.5KW
Amps @ 240V
20Amps
Amps @ 208V
20Amps
KW Rating @ 240V
3.4KW
Dimensions
Overall Width
21 1/4"
Overall Height
3 1/4"
Overall Depth
16 5/8"
Minimum Spacing to Right Wall
2"
Minimum Spacing to Left Wall
2"
Minimum Spacing to Back Wall
2"
Minimum Front Counter Clearance
2 3/4"
Cutout Width
20 1/8"
Cutout Depth
16 1/8"
Burner Output
Set 2 QTY
1
Set 2 Output
2100
Set 1 QTY
1
Set 1 Output
2150
Burner 2 Output
2100
Burner 1 Output
2150
Grill
No
Griddle
No
Features
6" Heating Elements
1 Plug-In @ @ 2150W
8" Heating Elements
1 Plug-In @ 2100W
Surface Element "On" Indicator Light
Yes
One-Piece Removable Chrome Drip Bowls
Yes
Lift-Up Cooktop with Support Rod
No
Infinite Heat Rotary Controls
Yes
Cooktop Surface
Porcelain-Enameled
Control Panel Location
Upfront
ADA Compliant
Yes
Technical Details
Voltage
240/208 Volts
Amps
20
ADA Compliant
No
Modules Required
No
Appearance
Type
Drop-In
Surface Color
White
Style
Coil
Color
White
Cooktop
Cooktop
Number of Burners
2
Fuel Type
Electric
Appearance
Available Colors
White (WW), Stainless (SS)
Function
Burners / Elements
2
Burners
2
Control Type
Knobs
Sabbath Mode
No
Induction
No
Hot Surface Indicator Light
No
Downdraft Venting
No
Dimensions
Actual Width
21 1/4 Inch
Actual Height
3 1/4 Inch
Actual Depth
16 5/8 Inch
Cutout Width
20 1/8 Inch
Cutout Height
3 1/4"
Cutout Depth
16 1/8 Inch
GTIN
General
Manufacturer
GE
