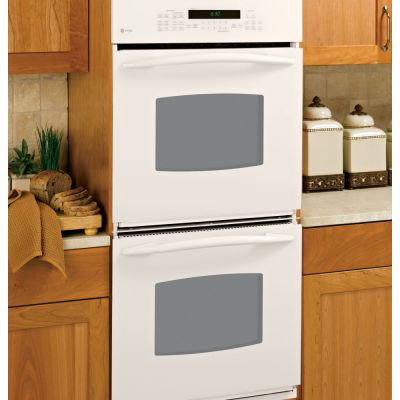

About the GE PK956DRCC
- 27" Double Electric Wall Oven with 3.8 cu. ft. PreciseAir Convection Oven
- 3.8 cu. ft. Lower Oven
- Self-Cleaning
- Hidden Bake Interior
- Heavy-Duty Roller Rack and Glass Touch Controls: Bisque
Brand:
Oven Style:
Double
Capacity:
7.6 cu. ft.
Convection:
Yes
Self Clean:
Yes
Color:
Bisque
Width:
27"
Height:
51"
Cutout Width:
25"
Cutout Height:
50 1/8"
Fuel Type:
Electric
Volts:
240/208 Volts
Amps:
30
It's all about great food. With more convenience, performance and style, GE built-in products are changing the way the modern family cooks. The amazing PreciseAir convection system uses an innovative fan that reverses direction for optimal air and heat circulation. And when it comes to style, they feature more choices to complement any taste or preference. With self-clean models, extra-large capacities and multi-dimensional features, GE offers innovative built-in products designed for today's lifestyle.
The PK956 uses PreciseAir Convection System, delivering even air and heat circulation for superior baking and roasting results. With the Convection Bake/Roast feature, it provides an ideal airflow throughout the oven cavity for even cooking and consistent results. Ensure better baking results while roasting meats faster than a traditional oven. Another great feature is their self-clean heavy duty oven racks which are double coated porcelain enameled racks that no longer require hand cleaning. The Glass Touch Controls features a smooth glass design that is easy to use and clean while adding even more to the sophisticated style to your kitchen.
Key Features
Glass Touch Controls
- Smooth controls are easy to use and add a sophisticated style to the kitchen.
Black Gloss Oven Interior
- Black oven interior adds a stylish touch to any kitchen.
PreciseAir Convection System
- A reversing fan circulates heat and air for evenly browned and baked foods.
Heavy-Duty Roller Rack
- Racks provide easy access to items inside the oven by simplifying loading and unloading.
Flat Back Convection
- Convection fan system is only 1" deep to provide additional room for cookware.
Convection Bake
- This setting is optimal for baking casseroles or lasagnas, yeast breads, pies and pizzas with no need to turn the pan.
Convection Roast
- Optimal for larger cuts of meat, this setting rotates the heat around all sides, sealing in the juices, producing rotisserie results at up to 25 percent faster than a conventional oven.
Hidden Bake Oven Interior
- Conceals the lower oven bake element to eliminate hard-to-reach areas that collect food and spills for easy cleaning.
Self-Clean Oven
- Self-clean allows you to spare yourself from the trouble and effort it takes to scrub the oven interior.
Upfront Halogen Lights
- Halogen lights makes checking on the progress of your cooking effortless.
Manuals & Downloads
PK956DRCC Installation Instructions
PK956DRCC Quick Specs
PK956DRCC Use & Care Guide
Specifications
Technical Details
ADA Compliant
No
Amps
30
Star-K Certified
Yes
Undercounter Installable
No
Voltage
240/208 Volts
Wattage
3600
Oven Features
Broiler Element Location
Top
Capacity
7.6 cu. ft.
Control Type
Touch Sensor
Convection
Yes
Delay Bake
Yes
Digital Temperature Display
Yes
Interior Oven Light
Yes
Lower Capacity
3.8 cu. ft.
Lower Racks
2
Oven Racks
5
Proofing
Yes
Removable Door
Yes
Sabbath Mode
Yes
Self-Cleaning
Yes
Temperature Probe
Yes
Timer
Yes
Upper Capacity
3.8 cu. ft.
Upper Racks
3
Appearance
Clock
Digital
Color
Bisque
Drawer
None
Fuel Type
Electric
Microwave
No
Speed Oven
No
Stainless Steel Handle
No
Steam Oven
No
Style
Double
Viewing Window
Yes
Dimensions
Cutout Depth
23 5/8"
Cutout Height
50 1/8"
Cutout Width
25"
Exterior Depth
23 5/8"
Exterior Height
51"
Exterior Width
27"
General
Series
Profile
Manufacturer
GE
Capacity
Capacity (cu. ft.)
3.8 Upper / 3.8 Lower
Dimensions and Weight
Approximate Shipping Weight
245 lbs.
Cabinet Depth Minimum
23 5/8"
Cabinet Width Required
27"
Cutout Dimensions (w x h x d)
25" x 50-1/8" x 23-5/8"
Net Weight
224 lbs.
Oven Interior Dimensions (lower)
21-1/2" x 17" x 18-1/4"
Oven Interior Dimensions (upper)
21-1/2" x 17" x 18-1/4"
Overall Depth
23 5/8"
Overall Height
51"
Overall Width
26 5/8"
Oven Cooking Modes
Convection Bake
Yes; Multi/Single Rack; Upper Oven
Convection Roast
Yes; Upper Oven
Thermal Bake / Thermal Roast
Yes (both ovens)
Power / Ratings
Amp Rating at 208V
30
Amp Rating at 240V
30
Bake Wattage
2100W
Broiler Wattage
3600W
Convection Wattage
2500W
KW Rating at 208V
5.4
KW Rating at 240V
7.2
Oven Rack Features
Embossed Rack Positions
7
Full Extension Rack
1
Racks
3 Heavy Duty Racks Upper / 2 Heavy Duty Racks Lower
Warranty
Labor Warranty
Limited 1-year entire appliance
Parts Warranty
Limited 1-year entire appliance
Warranty Notes
See written warranty for full details
Features
4-Pass Bake Element
Yes
4-Pass Broil Element
Yes
Automatic Self-Clean Oven Door Lock
Both
Cleaning Time
Variable with Delay Clean Option
Closed Door Broiling
Yes
Configuration
Double Oven
Control Type
Glass Touch Controls
Cooking System Upper
Precise Air Convection System; Flat Back Convection
Cooking Technology
Convection Upper; Traditional Lower
Interior Oven Light
Yes; Halogen
Oven Cleaning Type
Self-Clean (Both Ovens)
Oven Interior
Hidden Bake Element
Style
Built-In
Temperature Management System
TrueTemp System
Oven Control Features
Audible Preheat Signal
Yes
Auto Recipe Conversion Upper Oven
Yes
Automatic Meat Thermometer
Yes
Celsius or Fahrenheit Programmable
Yes
Certified Sabbath Mode
Yes
Control Lock Capability
Yes
Delay Bake Option With Warm Mode
Yes
Digipad Numeric Entry
Yes
Electronic Clock and Kitchen Timer
Yes
Hi / Low Broil
Yes
Optional Clock Display
Yes
Proof Mode
Yes
Warm Mode
Yes
Appearance
Color Appearance
Bisque
Frameless Oven Door(s)
Color-Matched
Handle
High-Gloss Color-Matched Sculptured
Oven Door Features
Big ClearView Oven Window; Frameless Oven Door
