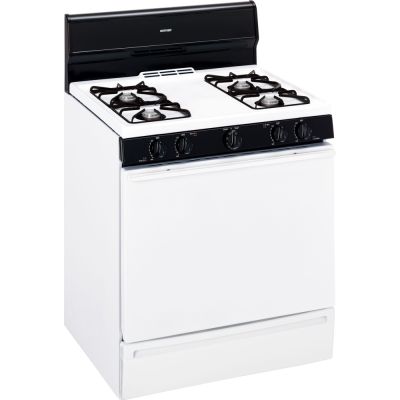

About the Hotpoint RGB524PPTWH
- 30" Freestanding Gas Range with 4 Open Burners
- Manual Clean Oven
- 2 Oven Racks
- Slide-Out Broiler Drawer and Pilot Ignition
Brand:
Style:
Freestanding
Width:
30"
Height:
39 7/8"
Depth:
26 1/2"
Burners:
4
Convection:
No
Self Clean:
No
Griddle:
No
Grill:
No
Fuel Type:
Gas
Volts:
120 Volts
Amps:
15
Home is the one place that truly reflects and expresses who you really are and want to be. At Hotpoint they pride themselves in understanding your needs and develop their products and features around you and your family. Available at Designer Appliances.
Heritage and Reputation
Hotpoint's illustrious history began in the early 1900's. Since then they have made it their aim to listen to you and provide you with intelligent product solutions to ensure you live in comfort and style in your home. Hotpoint is the number one white goods brand in the UK and has been voted the UK's most trusted domestic appliance brand every year for the past eight years in the annual Readers Digest survey.
Their Commitment to the Environment
Hotpoint cares for the environment. Every year they make choices that not only ensure strict compliance with environmental legislation but also aim to develop advanced technological solutions that make their products even more eco-compatible. Features such as A+ in energy efficiency and their Eco Cycles and settings ensure they are helping you to help the environment when using their products.
Key Features
Extra-Large Oven Capacity
- Spacious oven interior makes it possible to cooking more dishes at one time.
All Purpose Burners
- All-purpose burner delivers two levels of BTU output to accommodate virtually all your cooking needs.
Standard Grates
- Quality grates over the burner elements hold pots and pans securely for everyday cooking.
Porcelain Upswept Cooktop
- The one-piece cooktop has a raised edge all around the cooktop to help contain spills for easy cleanup.
- There are no cracks or crevices to trap dirt or food particles, and smooth porcelain-enameled surface wipes clean easily.
Lift-Up Cooktop
- The cooktop is designed to lift up and allow the user to easily access to the porcelain-enameled subtop.
- This makes accessing traditionally hard-to-reach crumbs and spills easier than ever.
Easy Clean Subtop
- The subtop, located under the cooktop and typically collects spills and messes, is porcelain enameled to provide an easy to clean and durable surface.
Porcelain Oven Door
- The oven door is constructed with a scratch-resistant porcelain coating to add durability and help make cleaning uncomplicated.
- Available at Designer Appliances.
- www.designerappliances.com
Manuals & Downloads
RGB524PPTWH Quick Specs
RGB524PPTWH Use & Care Guide
RGB524PPTWH Installation Instructions
Specifications
SUPPORT
REGISTER YOUR PRODUCT
Our online tools are here 24 hours a day to help you arrange the service you need.
SCHEDULE SERVICE
Our online tools are here 24 hours a day to help you arrange the service you need.
CALL US ON THE PHONE
We'd be happy to answer your question over the phone
SEND US AN EMAIL
Do you have questions, concerns or feedback?
POWER / RATINGS
Bake/Broiler BTU Rating - LP (000's BTU's)
16.5
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's)
18.5
Top Burner BTU Rating - LP (000's BTU's)
(4) 8.0
Volts/Hertz/Amps
120V; 60Hz; 5A
Top Burner BTU Rating - Nat. Gas (000's BTU's)
(4) 9.1
WEIGHTS & DIMENSIONS
Overall Width
30 in
Overall Height
44 in
Overall Depth
26 1/2 in
Oven Interior Dimensions (W x H x D) (in.)
24 x 18-1/2 x 19
Net Weight
145 lb
Cabinet Width
30 in
Approximate Shipping Weight
165 lb
Technical Details
Amps
15
Voltage
120 Volts
LP Conversion
Yes
Oven BTUs
18000
Ignition Type
Pilot
Star-K Certified
No
ADA Compliant
No
WARRANTY
Warranty Notes
For models produced on or after January 1, 2006See written warranty for full details
Labor Warranty
Limited 1-year entire appliance
Parts Warranty
Limited 1-year entire appliance
ACCESSORIES
LP Conversion Kit
Included
APPEARANCE
Handle
Visor
Frameless Oven Door(s)
White Porcelain-Enameled
Cooktop Burner Grate Color
Black
Color Appearance
White
FEATURES
All-Purpose Burners
(4) 9,100 BTU
Cooktop Surface
Lift-UpPorcelain-Enamel
Cooktop Burner Type
Standard
Oven Cleaning Type
Standard Clean
Ignition System
Electronic
Valves (Degree of Turn)
140
Fuel Type
Natural Gas (factory set)
Slide - Out Broiler Drawer
Yes
Porcelain-Enameled Subtop
Yes
Oven Rack Features
2 Oven Racks6 Embossed Rack Positions
One-Piece Drip Pans
Optional Accessory
Leveling System
4 Leveling Legs
CAPACITY
Total Capacity (cubic feet)
4.8 cu ft
Dimensions
Depth
26 1/2"
Height
39 7/8"
Interior Width
24"
Interior Depth
19"
Interior Height
18 1/2"
Width
30"
Burner Output
Set 1 QTY
4
Set 1 Output
9100
Cooktop Features
Burners / Elements
4
Cooktop Control Type
Knobs
Downdraft Ventilation
No
Modules Required
No
Induction
No
Grill
No
Griddle
No
Appearance
Clock
No
Fuel Type
Gas
Style
Freestanding
Color
White
Cooktop
Open Burner
Continuous Grates
No
Stainless Steel Handle
No
Viewing Window
No
Drawer
Broiler
Oven Features
Proofing
No
Sabbath Mode
No
Broiler Element Location
Bottom
Temperature Probe
No
Interior Oven Light
No
Racks
2
Delay Bake
No
Self-Cleaning
No
Oven Control Type
Knobs
Digital Temperature Display
No
Timer
No
Convection
No
General
Manufacturer
Hotpoint
