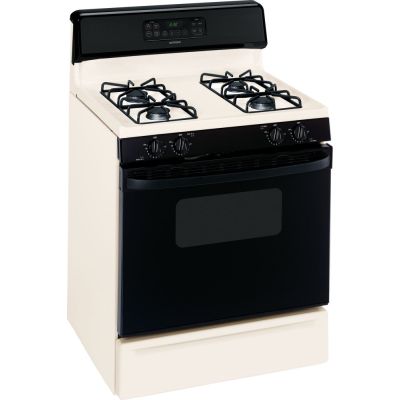

About the Hotpoint RGB745DEPCT
- 30" Freestanding Gas Range with 4 Sealed Burners
- 4.8 cu. ft. Self Clean Oven
- Performance Plus Burner and Simmer Setting: Bisque
Brand:
Style:
Freestanding
Width:
30"
Height:
46 1/8"
Depth:
26 1/4"
Capacity:
4.8 Cu. Ft.
Burners:
4
Convection:
No
Self Clean:
Yes
Fuel Type:
Gas
Volts:
120 Volts
Amps:
10
This model from their Hotpoint line features an extra-large oven capacity which ideal for cooking more items at once, performance plus burner which provides a maximum output of 12,000 BTUs for fast heat-up and boiling, and a simmer burner which provides low, even heat distribution for delicate foods and sauces.
Key Features
- Self-clean oven
- Self-clean allows you to spare yourself from the trouble and effort it takes to scrub the oven interior. The oven does all the work!
- Extra-large oven capacity
- Enough room to cook an entire meal at once
- Sealed cooktop burners
- Burner elements are sealed to the cooktop to keep foods and liquid contained on the cooktop, making cleaning painless
- Performance plus burner
- This 12,000 BTU burner element provides the high heat ideal for frying or sautéing and fast heat-up
- Simmer setting
- Simmer setting allows for low, even heat distribution for delicate foods and sauces
- EasySet III controls
- Glass one-touch control panel makes everyday operation and cleaning incredibly easy
Manuals & Downloads
RGB745DEPCT Installation Instructions
RGB745DEPCT Quick Specs
RGB745DEPCT Use & Care Guide
Specifications
Oven Features
Timer
Yes
Removable Door
No
Convection
No
Self-Cleaning
Yes
Delay Bake
No
Proofing
No
Sabbath Mode
Yes
Broiler Element Location
Top
Temperature Probe
No
Interior Oven Light
Yes
Racks
2
Digital Temperature Display
No
Primary Oven Capacity
4.8 Cu. Ft.
Oven Control Type
Digital
Technical Details
Ignition Type
Electronic
Oven BTUs
16000
LP Conversion
Yes
Amps
10
Voltage
120 Volts
ADA Compliant
No
Star-K Certified
No
WARRANTY
Labor Warranty
Limited 1-year entire appliance
Parts Warranty
Limited 1-year entire appliance
Warranty Notes
See written warranty for full details
WEIGHTS & DIMENSIONS
Overall Depth
26 1/4 in
Overall Height
46 1/2 in
Overall Width
30 in
Approximate Shipping Weight
210 lb
Cabinet Width
30 in
Net Weight
190 lb
Oven Interior Dimensions (W x H x D) (in.)
24 x 18-1/2 x 19
FEATURES
All-Purpose Burners
(2) 9,500 BTU
Simmer Burner
(1) 5,000 BTU
Performance Plus Burner
(1) 12,500 BTU
Cooktop Burner Grate Material
Heavy Steel
Cooktop Surface
One-Piece UpsweptPorcelain-Enamel
Cooktop Burner Type
Sealed
Oven Cleaning Type
Self-Clean
Ignition System
Electronic
Configuration
Range with Storage Drawer
Valves (Degree of Turn)
270
Control Type
EasySet III
Oven Control Features
Certified Sabbath ModeElectronic Automatic Oven Timer (Time Bake)In-Oven Broiling
Leveling System
4 Leveling Legs
Fuel Type
Natural Gas (factory set)
Oven Interior
Interior Oven Light
Scratch-Resistant Backguard
Porcelain-Enameled
Oven Rack Features
2 Oven Racks6 Embossed Rack Positions
POWER / RATINGS
Bake/Broiler BTU Rating - LP (000's BTU's)
16.0 Bake / 12.0 Broiler
Volts/Hertz/Amps
120V; 60Hz; 5A
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's)
16.0 Bake / 13.5 Broiler
Top Burner BTU Rating - LP (000's BTU's)
(1) 9.5; (1) 3.5; (2) 7.0
Top Burner BTU Rating - Nat. Gas (000's BTU's)
(1) 12.0; (2) 9.5; (1) 5.0
APPEARANCE
Cooktop Burner Grate Color
Black
Frameless Oven Door(s)
Black Glass
Handle
Designer-Style
Oven Door Features
Oven Window
Color Appearance
Bisque
SUPPORT
SEND US AN EMAIL
Do you have questions, concerns or feedback?
REGISTER YOUR PRODUCT
Our online tools are here 24 hours a day to help you arrange the service you need.
CALL US ON THE PHONE
We'd be happy to answer your question over the phone
SCHEDULE SERVICE
Our online tools are here 24 hours a day to help you arrange the service you need.
Appearance
Fuel Type
Gas
Style
Freestanding
Color
Bisque
Cooktop
Sealed Burner
Continuous Grates
No
Stainless Steel Handle
No
Viewing Window
Yes
Drawer
Storage
Clock
No
ACCESSORIES
LP Conversion Kit
Included
CAPACITY
Total Capacity (cubic feet)
4.8 cu ft
Burner Output
Set 2 Output
9500
Set 3 QTY
1
Set 3 Output
5000
Set 2 QTY
2
Set 1 Output
12000
Set 1 QTY
1
Cooktop Features
Burners / Elements
4
Cooktop Control Type
Knobs
Downdraft Ventilation
No
Modules Required
No
Hot Surface Indicator Light
No
Dimensions
Width
30"
Depth
26 1/4"
Height
46 1/8"
Interior Width
24"
Interior Depth
19"
Interior Height
18 1/2"
General
