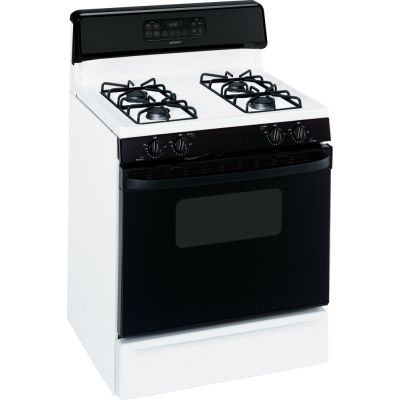

About the Hotpoint RGB745DEPWH
- 30" Freestanding Gas Range with 4 Sealed Burners
- 4.8 cu. ft. Self Clean Oven
- Performance Plus Burner and Simmer Setting: White
Brand:
Style:
Freestanding
Width:
30"
Height:
46 1/8"
Depth:
26 1/4"
Capacity:
4.8 Cu. Ft.
Burners:
4
Convection:
No
Self Clean:
Yes
Fuel Type:
Gas
Volts:
120 Volts
Amps:
10
This model from their Hotpoint line features an extra-large oven capacity which ideal for cooking more items at once, performance plus burner which provides a maximum output of 12,000 BTUs for fast heat-up and boiling, and a simmer burner which provides low, even heat distribution for delicate foods and sauces.
Key Features
- Self-clean oven
- Self-clean allows you to spare yourself from the trouble and effort it takes to scrub the oven interior. The oven does all the work!
- Extra-large oven capacity
- Enough room to cook an entire meal at once
- Sealed cooktop burners
- Burner elements are sealed to the cooktop to keep foods and liquid contained on the cooktop, making cleaning painless
- Performance plus burner
- This 12,000 BTU burner element provides the high heat ideal for frying or sautéing and fast heat-up
- Simmer setting
- Simmer setting allows for low, even heat distribution for delicate foods and sauces
- EasySet III controls
- Glass one-touch control panel makes everyday operation and cleaning incredibly easy
Manuals & Downloads
RGB745DEPWH Installation Instructions
RGB745DEPWH Quick Specs
RGB745DEPWH Use & Care Guide
Specifications
WARRANTY
Labor Warranty
Limited 1-year entire appliance
Parts Warranty
Limited 1-year entire appliance
Warranty Notes
See written warranty for full details
FEATURES
Oven Control Features
Certified Sabbath ModeElectronic Automatic Oven Timer (Time Bake)In-Oven Broiling
Oven Interior
Interior Oven Light
Oven Rack Features
2 Oven Racks6 Embossed Rack Positions
Performance Plus Burner
(1) 12,500 BTU
Scratch-Resistant Backguard
Porcelain-Enameled
Simmer Burner
(1) 5,000 BTU
Valves (Degree of Turn)
270
Oven Cleaning Type
Self-Clean
Leveling System
4 Leveling Legs
Ignition System
Electronic
All-Purpose Burners
(2) 9,500 BTU
Configuration
Range with Storage Drawer
Control Type
EasySet III
Cooktop Burner Grate Material
Heavy Steel
Cooktop Burner Type
Sealed
Cooktop Surface
One-Piece UpsweptPorcelain-Enamel
Fuel Type
Natural Gas (factory set)
APPEARANCE
Color Appearance
White on White
Cooktop Burner Grate Color
Black
Frameless Oven Door(s)
Black Glass
Handle
Designer-Style
Oven Door Features
Oven Window
WEIGHTS & DIMENSIONS
Overall Width
30 in
Overall Height
46 1/8 in
Overall Depth
26 1/4 in
Oven Interior Dimensions (W x H x D) (in.)
24 x 18-1/2 x 19
Approximate Shipping Weight
210 lb
Cabinet Width
30 in
Net Weight
190 lb
ACCESSORIES
LP Conversion Kit
Included
Appearance
Stainless Steel Handle
No
Style
Freestanding
Viewing Window
Yes
Drawer
Storage
Fuel Type
Gas
Cooktop
Sealed Burner
Clock
No
Color
White
Continuous Grates
No
Technical Details
Star-K Certified
No
Voltage
120 Volts
ADA Compliant
No
Ignition Type
Electronic
Amps
10
LP Conversion
Yes
Oven BTUs
16000
Oven Features
Temperature Probe
No
Timer
Yes
Delay Bake
Yes
Digital Temperature Display
No
Convection
No
Broiler Element Location
Top
Self-Cleaning
Yes
Sabbath Mode
Yes
Removable Door
No
Interior Oven Light
Yes
Oven Control Type
Digital
Primary Oven Capacity
4.8 Cu. Ft.
Proofing
No
Racks
2
POWER / RATINGS
Bake/Broiler BTU Rating - LP (000's BTU's)
16.0 Bake / 12.0 Broiler
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's)
16.0 Bake / 13.5 Broiler
Top Burner BTU Rating - LP (000's BTU's)
(1) 9.5; (1) 3.5; (2) 7.0
Top Burner BTU Rating - Nat. Gas (000's BTU's)
(1) 12.0; (2) 9.5; (1) 5.0
Volts/Hertz/Amps
120V; 60Hz; 5A
Dimensions
Width
30"
Depth
26 1/4"
Height
46 1/8"
Interior Depth
19"
Interior Height
18 1/2"
Interior Width
24"
SUPPORT
SEND US AN EMAIL
Do you have questions, concerns or feedback?
CALL US ON THE PHONE
We'd be happy to answer your question over the phone
REGISTER YOUR PRODUCT
Our online tools are here 24 hours a day to help you arrange the service you need.
SCHEDULE SERVICE
Our online tools are here 24 hours a day to help you arrange the service you need.
Cooktop Features
Downdraft Ventilation
No
Hot Surface Indicator Light
No
Cooktop Control Type
Knobs
Burners / Elements
4
Modules Required
No
Burner Output
Set 1 Output
12000
Set 1 QTY
1
Set 2 Output
9500
Set 2 QTY
2
Set 3 Output
5000
Set 3 QTY
1
CAPACITY
Total Capacity (cubic feet)
4.8 cu ft
General
