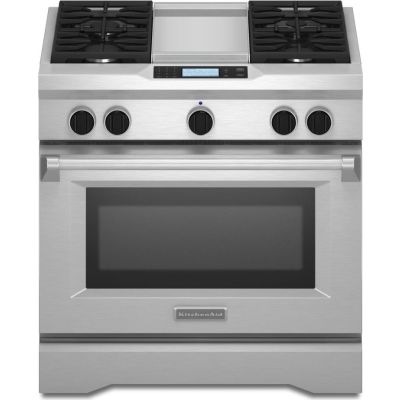

About the KitchenAid KDRU763VSS
- 36" Commercial Style Dual Fuel Range with 5.1 cu. ft. Capacity
- 4 Sealed Burners
- Even-Heat Electric Griddle
- Dual Fan Convection w/ Steam-Assist Technology
- EasyConvect System and Auto Steam Function
Brand:
Style:
Freestanding
Width:
35 3/4"
Height:
35 3/4"
Depth:
29 9/16"
Capacity:
5.1 Cu. Ft.
Burners:
5
Convection:
Yes
Self Clean:
Yes
Fuel Type:
Dual Fuel
Volts:
240/208 Volts
Amps:
40
Bold, dimensional design and features like the industry's most powerful burner available (among leading brands) and dual-fan convection with steam-assist technology allow passionate cooks to reach their gourmet potential. KitchenAid commercial-style ranges bring the tools of restaurant chefs into residential kitchens. You won't be able to help feeling like a pro with the glass-touch menu-driven LCD display, which is an easy-to-use interface that guides users through a variety of functions. The commercial-style design features a heavy-duty look with robust knobs and a stainless steel handle. Don't just look better, cook better with the dual-fan convection with steam-assist technology, ensuring tender, moist results, and enhanced flavor.
Key Features
Dual Fuel
- Ranges offer the precision of a gas cooking surface with an electric oven
Glass-Touch Menu-Driven LCD Display
- An easy-to-use interface that guides users through functions
Even-Heat True Convection System
- Provides consistent heating and even cooking on all three racks
EasyConvect Time and Temperature Conversion System
- Takes the guesswork out of convection cooking
20K BTU Ultra Power Dual-Flame Burner
- Offers versatility from intense searing to low simmering
Commercial-Style Design
- Features a heavy-duty look with robust knobs and a stainless steel handle
Dual-Fan Convection with Steam-Assist Technology
- Ensures tender, moist results, and enhances flavor
Auto Steam
- Guides users through steam settings, while Manual Steam allows the user to input settings
KDRU763VSS Owners Manual
Specifications
Dimensions
Width
35 3/4"
Height
35 3/4"
Depth
29 9/16"
Oven Features
Convection Bake
Yes
Cleaning System
Self-Cleaning
Bread Proofing
Yes
Bake Element Wattage @240v
3000
Bake
Yes
Convection Broil
Yes
Convection Element Wattage @240v
2800
Warm Hold
Yes
Total Capacity
5.1 Cu. Ft.
Sabbath Mode
Yes
Hidden Bake Element
CleanBake Hidden Element
Delayed Cooking
Yes
Cooking System
Convection plus Steam-Assist Oven
Convection Roast
Yes
Cooktop Features
Right Rear Burner
5000 BTU
Right Front Burner
15000 BTU
Left Rear Burner
15000 BTU
Left Front Burner
20000 BTU
Dimensions
Product Width
35 3/4"
Product Height
35 3/4"
Product Depth
29 9/16"
Performance
Fuel Type
Dual Fuel
Design
Oven Lights
3
Grate Material
Cast Iron
Delayed Cooking
Yes
Cooktop Material
Porcelain
Technical Details
Voltage
240/208 Volts
Star-K Certified
Yes
Amps
40
Ignition Type
Both
Oven Wattage
3000
LP Conversion
Optional
ADA Compliant
No
Appearance
Viewing Window
Yes
Style
Freestanding
Stainless Steel Handle
Yes
Fuel Type
Dual Fuel
Drawer
None
Cooktop
Sealed Burner
Continuous Grates
No
Color
Stainless Steel
Clock
Yes
Oven Features
Timer
Yes
Temperature Probe
No
Digital Temperature Display
Yes
Delay Bake
Yes
Convection
Yes
Self-Cleaning
Yes
Sabbath Mode
Yes
Removable Door
No
Racks
3
Proofing
Yes
Primary Oven Capacity
5.1 Cu. Ft.
Oven Control Type
Touch Sensor
Interior Oven Light
Yes
Electrical Requirements
Volts
240/208
Amps
40
Burner Output
Set 3 QTY
1
Set 3 Output
5000
Set 2 QTY
2
Set 2 Output
15000
Set 1 QTY
1
Set 1 Output
20000
Cooktop Features
Downdraft Ventilation
No
Cooktop Control Type
Knobs
Burners / Elements
5
Hot Surface Indicator Light
No
Modules Required
No
Induction
No
General
Manufacturer
KitchenAid
