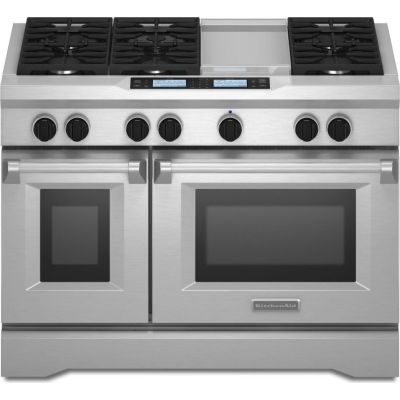

About the KitchenAid KDRU783VSS
- 48" Commercial-Style Dual Fuel Range with 6.3 cu. ft. Total Capacity True Convection Ovens
- Self Clean
- Two 20K BTU Dual-Flame Burners
- LCD Display and Star-K Certified: Stainless Steel
Brand:
Style:
Freestanding
Width:
47 3/4"
Height:
35 3/4"
Depth:
29 9/16"
Capacity:
6.3 Cu. Ft.
Burners:
6
Convection:
Yes
Self Clean:
Yes
Griddle:
Yes
Grill:
No
Fuel Type:
Dual Fuel
Volts:
240/208 Volts
Amps:
50
This range has a variety of convenient features that will enhance your culinary creativity and deliver exceptional results. The Even-Heat True Convection System provides consistent heating and even cooking on all three racks, while Two 20K BTU Ultra Power Dual-Flame Burners offer versatility from intense searing to low simmering. Available at Designer Appliances, this Dual-Fuel Commercial-Style Range had everything you need for preparing practically any meal.
Key Features
- Dual-fan convection with steam-assist technology ensures tender, moist results, and enhances flavor
- EasyConvect Time and Temperature Conversion System takes the guesswork out of convection cooking
- Auto Steam guides users through steam settings, while Manual Steam allows the user to input settings
- Two 20K BTU Ultra Power Dual-Flame Burners offer versatility from intense searing to low simmering
- Even-Heat True Convection System provides consistent heating and even cooking on all three racks
- Glass-touch menu-driven LCD display is an easy-to-use interface that guides users through functions
- Commercial-style design features a heavy-duty look with robust knobs and a stainless steel handle
- Dual fuel ranges offer the precision of a gas cooking surface with an electric oven
- Available at Designer Appliances - www.designerappliances.com
KDRU783VSS Owners Manual
Specifications
Dimensions
Width
47 3/4"
Depth
29 9/16"
Height
35 3/4"
Features
Cooking System
Convection plus Steam-Assist Oven
Convection Roast
Yes
Convection Element Wattage @240v
2800
Convection Broil
Yes
Convection Bake
Yes
Cleaning System
Self-Cleaning
Center Rear Burner
5,000 BTU
Center Front Burner
15,000 BTU
Bread Proofing
Yes
Bake Element Wattage
3000
Bake
Yes
Cooktop Material
Porcelain
Delayed Cooking
Yes
Fuel Type
Dual Fuel
Warm Hold
Yes
Total Capacity
6.3 Cu. Ft.
Sabbath Mode
Sabbath Mode
Right Rear Burner
15,000 BTU
Right Front Burner
20,000 BTU
Left Rear Burner
15,000 BTU
Left Front Burner
20,000 BTU
Hidden Bake Element
CleanBake Hidden Element
Grate Material
Cast Iron
Dimensions and Weight
Weight
612 lbs.
Product Width
47 3/4"
Product Height
35 3/4"
Product Depth
29 9/16"
Burner Output
Set 3 QTY
1
Set 3 Output
5000
Set 2 QTY
3
Set 2 Output
15000
Set 1 QTY
2
Set 1 Output
20000
Technical Details
Voltage
240/208 Volts
Star-K Certified
Yes
Amps
50
Oven Wattage
3000
LP Conversion
Yes
Ignition Type
Electronic
ADA Compliant
No
Appearance
Viewing Window
Yes
Style
Freestanding
Stainless Steel Handle
Yes
Fuel Type
Dual Fuel
Drawer
None
Cooktop
Sealed Burner
Continuous Grates
Yes
Color
Stainless Steel
Clock
Yes
Oven Features
Timer
Yes
Temperature Probe
No
Digital Temperature Display
Yes
Delay Bake
Yes
Convection
Yes
Broiler Element Location
Top
Self-Cleaning
Yes
Sabbath Mode
Yes
Removable Door
Yes
Racks
3
Proofing
Yes
Primary Oven Capacity
6.3 Cu. Ft.
Oven Control Type
Digital and Knobs
Interior Oven Light
Yes
Cooktop Features
Downdraft Ventilation
No
Cooktop Control Type
Knobs
Burners / Elements
6
Griddle
Yes
Grill
No
Modules Required
No
Induction
No
Hot Surface Indicator Light
No
General
Manufacturer
KitchenAid
