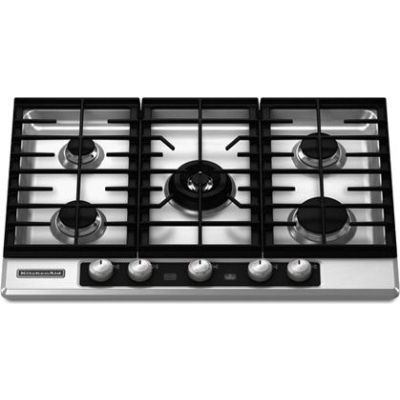

About the KitchenAid KFGU706VSS
- 30" Gas Cooktop with 5 Sealed Burners
- Electronic Ignition
- Hot Surface Indicator Lights and Infinite Position Control Knobs
Brand:
Cooktop Type:
Cooktop
Finish:
Stainless Steel
Fuel Type:
Gas
Style:
Sealed Burner
Width:
30 1/4"
Height:
2 7/8"
Depth:
21"
Cutout Width:
29"
Cutout Depth:
20"
Volts:
120 Volts
Amps:
15
The first 30-inch 5-burner cooktop among leading manufacturers of gas cooktops offers distinct style. Low profile grates create a desirable look that integrates with the countertop, and the design and durability of clear coat protection help keep the stainless steel surface looking clean and like new.
Key Features
- First 30-inch 5-burner cooktop among leading manufactureres of gas cooktops
- 15K BTU professional dual tier burner provides versatility for varied cooking styles - from simmering to searing
- Scratch-resistant clear coat protection helps prevent discoloration, scaling, and staining
- 6K BTU simmer burner cooks food gently at low temperatures
- Low profile full-width cast-iron grates allow easy movement of cookware around the entire cooktop surface
- Sealed burners prevent spills from entering the burner box, and automatic reignition reignites burner if flame blows out
- Responsive glass-touch cooktop display with control lockout and hot surface indicator provide intuitive feedback
KFGU706VSS Owners Manual
Specifications
Technical Details
Voltage
120 Volts
Amps
15
Ignition Type
Electronic
Modules Required
No
LP Conversion
Yes
Features
Electronic Ignition
Yes
Cooktop Surface
Stainless Steel
Burner Type
Sealed Gas
Burner Indicator Light
Yes
Built-In Downdraft Vent System
No
Fuel Type
Gas
Grate Finish
Matte Black Cast Iron
Hot Surface Indicator Lights
Yes
Ventilation System
No
Simmer Burner
Yes
Round Dual Circuit
No
Power-On Light
No
Over Oven Installation
Yes
Oval Dual Circuit
No
Number of Burners
5
Infinite Position Control Knobs
Yes
Dimensions
Width
30 1/4"
Height
2 7/8"
Depth
21"
Performance
Right Rear Burner/Element Output
7,000 BTU
Right Front Burner/Element Output
12,000 BTU
Left Rear Burner/Element Output
6,000 BTU
Left Front Burner/Element Output
9,100 BTU
Custom Control Temp Management System
No
Burner Configuration
1-6,000 BTU; 1-7,000 BTU; 1-9,100 BTU; 1-12,000 BTU; 1-15,000 BTU
Appearance
Surface Color
Stainless Steel
Style
Sealed Burner
Fuel Type
Gas
Cooktop
Cooktop
Continuous Grates
Yes
Color
Stainless Steel
Controls
Electronic Touch Controls
Yes
Control Type
Knobs
Burner Output
Set 5 QTY
1
Griddle
No
Grill
No
Set 5 Output
6000
Set 4 QTY
1
Set 4 Output
7000
Set 3 QTY
1
Set 3 Output
9100
Set 2 QTY
1
Set 2 Output
12000
Set 1 QTY
1
Set 1 Output
15000
Function
Downdraft Venting
No
Control Type
Knobs
Burners
5
Sabbath Mode
No
Dimensions
Cutout Width
29"
Cutout Depth
20"
Actual Width
30 1/4"
Actual Height
2 7/8"
Actual Depth
21"
Specifications:
Series
Architect Series II
General
Manufacturer
KitchenAid
