discontinued
There is a newer model of this item:
Need help finding a replacement?
-
Call us at
888-714-4938

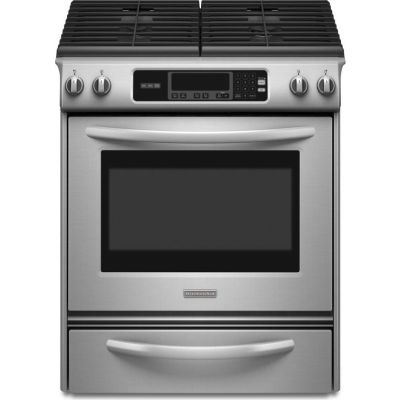

About the KitchenAid KGSK901SSS
- 30" Slide-In Gas Range with 4 Sealed Burners
- 14,000 BTU UltraPower Sealed Burner
- 4.1 cu. ft. Self-Cleaning Thermal Oven and Storage Drawer: Stainless Steel
Brand:
Series:
Architect Series II
Style:
Slide-In
Width:
29 7/8"
Height:
36"
Depth:
28 7/8"
Capacity:
5.8 Cu. Ft.
Burners:
5
Convection:
Yes
Self Clean:
Yes
Griddle:
No
Grill:
No
Fuel Type:
Gas
Volts:
120 Volts
Amps:
15
Key Features
- Thermal Oven
- 14K BTU Burner
- 12.5K BTU Burner
- Variable time self-cleaning system for differing soil levels
- Aesthetic design includes contoured knobs and robust handle
- Responsive glass-touch oven display with lockout responds to the touch of a finger and wipes clean easily
- Bread Proofing in oven
- Sabbath Mode certified by STAR-K KOSHER CERTIFICATION
- Enhanced broil element with full and center settings provides broad, even coverage
- Full-width cast-iron grates allow movement of cookware from one burner to another without lifting
- Filler piece for ASII slide-in ranges available on kitchenaid.com/accessories
- Fills gaps of 2-5/8 in., 2-1/4 in., and 1-1/2 in.
KGSK901SSS Owners Manual
Specifications
Technical Details
ADA Compliant
Yes
Amps
15
Ignition Type
Electronic
LP Conversion
Yes
Oven BTUs
18000
Star-K Certified
No
Voltage
120 Volts
Oven Features
Broiler Element Location
Top
Convection
Yes
Delay Bake
Yes
Digital Temperature Display
Yes
Interior Oven Light
Yes
Oven Control Type
Touch Sensor
Primary Oven Capacity
5.8 Cu. Ft.
Proofing
Yes
Racks
3
Removable Door
No
Sabbath Mode
Yes
Self-Cleaning
Yes
Temperature Probe
No
Timer
Yes
Cooktop Features
Burners / Elements
5
Cooktop Control Type
Knobs
Downdraft Ventilation
No
Griddle
No
Grill
No
Hot Surface Indicator Light
No
Induction
No
Modules Required
No
Appearance
Clock
Yes
Color
Stainless Steel
Continuous Grates
Yes
Cooktop
Sealed Burner
Drawer
Storage
Fuel Subtype
Natural Gas
Fuel Type
Gas
Stainless Steel Handle
Yes
Style
Slide-In
Viewing Window
Yes
Dimensions
Depth
28 7/8"
Height
36"
Interior Depth
16 3/4"
Interior Height
14 3/4"
Interior Width
25"
Width
29 7/8"
General
Series
Architect Series II
Manufacturer
KitchenAid
Burner Output
Set 1 Output
17000
Set 1 QTY
1
Set 2 Output
15000
Set 2 QTY
1
Set 3 Output
9200
Set 3 QTY
1
Set 4 Output
8000
Set 4 QTY
1
Set 5 Output
5000
Set 5 QTY
1
Selections
Bread Proofing
Yes
Clock
Yes
Cook Time
Yes
Delay Start
Yes
Keep Warm Setting
Yes
Steam Bake
Yes
Warm Zone
Yes
Dimensions
Electrical Requirements
120V/15A
Overall Depth
28 7/8"
Overall Height
36"
Overall Width
29 7/8"
Shipping Weight
235 Lbs.
Overview
Capacity
5.8 Cu. Ft.
Fuel Type
Gas
Range Type
Slide-in
Size
30
Cooktop Features
Center Rear Burner
8,000 BTU
Cooktop Element Style
Sealed Gas Burner
Cooktop Surface Color
Black
Cooktop Surface Material
Porcelain Coated Steel
Dishwasher Safe Grates
Yes
Grate Finish
Matte
Grate Material
Cast Iron
Grate Type
Continuous
Left Front Burner
17,000 BTU
Left Rear Burner
5,000 BTU
Number of Burners
5
Number of Grates
2
Right Front Burner
15,000 BTU
Right Rear Burner
9,200 BTU
Controls
ADA Compliant
Yes
Drawer Type
Storage Drawer
Handle Material
Metal
Handle Type
Stainless Steel Towel Bar Handles
UL
Yes
Oven Features
Automatic Convection Conversion Temperature Adjust
Yes
Bake Element Power
18,000 BTU
Broil Element Power
13,000 BTU
Broiler Location
Top of Oven
Convection Element Power
900 W
Convection Element Type
Single-Fan
Convection Functions
Bake, Broil, Roast
Heating Element On Indicator Light
No
Hidden Bake Element
Yes
Hot Surface Indicator Light
No
Light Type
Incandescent
Number of Oven Lights
2
Number of Oven Racks
3
Number of Rack Guides
7
Oven Rack Type
1 Max Capacity, 1 Gliding Roll Out, 1 Steam Rack
Power On Indicator Light
Yes
