discontinued
There is a newer model of this item:
Need help finding a replacement?
-
Call us at
888-714-4938

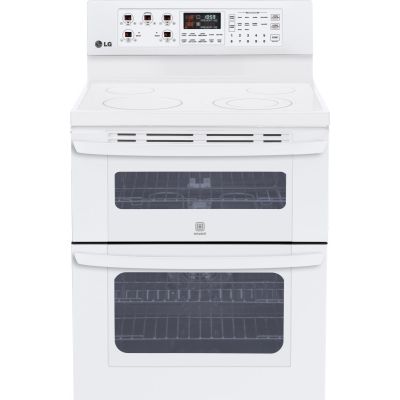

About the LG LDE3017SW
- 5 Radiant Elements
- 4.4 cu. ft. True Convection Lower Oven
- 2.3 cu. ft. Upper Oven
- InfraGrill Broiler
- Self-Cleaning
Brand:
Style:
Freestanding
Width:
29 7/8"
Height:
47 7/16"
Depth:
25 13/16"
Capacity:
4.38 Cu. Ft.
Burners:
5
Convection:
Yes
Self Clean:
Yes
Griddle:
Yes
Grill:
No
Fuel Type:
Electric
Volts:
240/208 Volts
Amps:
40
With the hottest of innovations, this freestanding electric double oven will help take your cooking to the next level. Enjoy the convenience of a large capacity double oven and the added versatility of the industry's tallest upper oven. Save time, and prepare juicier meats, with our InfraGrill System - LG's first infrared heating element.
Tallest Upper Oven
LG provides you with the tallest upper oven in the industry, allowing you to bake and broil tall items in the smaller oven without having to preheat a big oven. The 6" height allows for easier access to insert or remove items from the oven.
InfraGrill System
LG's first infrared heating element gets your oven to broil temperature more quickly and cuts 30 percent off your cooking time on common items like hamburgers and chicken breasts. Infrared cooking - which uses the same technology as premium outdoor grills - also allows your food to be juicier than traditional thermal cooking.
Large Capacity
Cook two meals at once - Allows you to cook different dishes at different temperatures all at the same time. Gives you room for everything you'd need for a holiday dinner.
Key Features
Cooking Performance
- 6.7 cu. ft. Total Oven Capacity (2.3 cu. ft. / 4.4 cu. ft.)
- Tallest Upper Oven (6")
- InfraGrill Broiler (Upper Oven)
- True Convection System (Lower Oven)
- Convection Bake
- Convection Roast
- 5 Radiant Cooktops with Warming Zone
Style and Design
- Premium Finishes in Stainless Steel, Smooth White and Smooth Black
- WideView Window
- Brilliant Blue Interior
- Reddot Design Award
Convenience
- IntuiTouch Keypad
- GoCook Oven Light
- 12 Hr. Automatic Shut-Off
- Self-Cleaning (Upper and Lower Ovens)
- Recessed Broiler - Safe for your hands
LDE3017SW Eco Declaration
Specifications
Burner Output
Set 4 QTY
1
Burner 1 Output
3000
Burner 2 Output
1200
Burner 3 Output
2700
Burner 4 Output
100
Set 1 Output
3000
Set 1 QTY
1
Set 2 Output
1200
Set 2 QTY
2
Set 3 Output
2700
Set 3 QTY
1
Set 4 Output
100
Specifications:
Cooktop Finish
Grey Patterned on Black Ceramic Glass
Display
VFD Scrolling
Door
Full Stainless Steel Wrap
Element Configuration - Center (Warm)
7" / 100W
Element Configuration - Left Front
9", 6" / 3000W, 1400W
Element Configuration - Left Rear
6" / 1200W
Element Configuration - Right Front
12", 9" / 2700W, 1700W
Element Configuration - Right Rear
6" / 1200W
Handle
Matching Stainless
Convection
Roast (Lower), Proof (Lower), Warm
Control Type
IntuiTouch™ / Keypad
Configuration
Freestanding Electric Double Oven
Amp Rating at 208V
40
Amp Rating at 240V
40
Available Colors
Smooth White (SW), Smooth Black (SB), Stainless Steel (ST)
Bake Element (Lower)
2500W / 8 Pass (Hidden Bake)
Bake Element (Upper)
2100W / 6 Pass
Broil Burner (Upper)
3200W (1600W x 2) InfraGrill™
Broil Element (Lower)
3800W / 6 Pass
Burner Type
Radiant
Cabinet Width (in)
30"
Height to Cooking Surface (in)
36"
Infrared Grill System
Yes
KW Rating at 208V
120/208 VAC
Total Capacity
6.7 cu. ft.
Shipping Weight (lbs)
263
Range Type
Double Door
KW Rating at 240V
120/240 VAC
Limited Warranty
1 Year Parts and Labor
Oven Capacity
2.32 cu.ft. Upper / 4.38 cu.ft. Lower
Oven Cooking Modes
Bake, Broil, Convection Bake (Lower)
Oven Interior Dimensions (in) (W x H x D)
24 1/2" x 16 5/16" x 18 15/16"
Oven Interior Dimensions (Upper) (in) (W x H x D)
24 1/2" x 8 11/16" x 18 15/16"
Overall Depth (in)
25 13/16"
Overall Height (in)
47 7/16"
Overall Width (in)
29 7/8"
Appearance
Stainless Steel Handle
No
Style
Freestanding
Viewing Window
Yes
Color
White
Cooktop
Smoothtop
Drawer
Oven
Clock
Yes
Fuel Type
Electric
Technical Details
Star-K Certified
No
Voltage
240/208 Volts
ADA Compliant
No
Amps
40
Oven Wattage
3,800
Oven Features
Temperature Probe
No
Timer
Yes
Convection
Yes
Delay Bake
Yes
Digital Temperature Display
Yes
Broiler Element Location
Top
Sabbath Mode
Yes
Secondary Oven Capacity
2.32 Cu. Ft.
Self-Cleaning
Yes
Racks
3
Proofing
Yes
Proof Mode
Yes
Interior Oven Light
Yes
Oven Control Type
Digital
Primary Oven Capacity
4.38 Cu. Ft.
Product Information
UPC
048231316972
Warranty Terms
1 year ?LG appliances include a one-year limited parts and labor warranty. For full details, visit https://www.lg.com/us/support
Brand
LG
Model
LDE3017SW
Dimensions
Width
29 7/8 Inch
Depth
25 13/16 Inch
Height
47 7/16 Inch
Cooktop Features
Cooktop Control Type
Digital
Downdraft Ventilation
No
Burners / Elements
5
Griddle
Yes
Grill
No
Induction
No
Modules Required
No
Capacity
Number of Burners
5
General
Manufacturer
LG
