discontinued
There is a newer model of this item:
Need help finding a replacement?
-
Call us at
888-714-4938

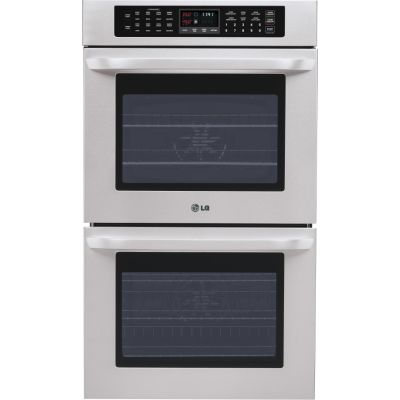

About the LG LWD3010ST
- 4.7 cu. ft. Upper/Lower Oven Capacity
- Convection Bake/Broil
- Self-Cleaning
- Crisp Convection
- SmoothTouch Controls
- 3D Lighting
- 5 Heavy Duty Racks
Brand:
Oven Style:
Double
Capacity:
9.4 Cu. Ft.
Convection:
Both
Self Clean:
Both
Color:
Stainless Steel
Width:
30"
Height:
52 1/16"
Cutout Width:
28 1/2"
Cutout Height:
51 15/16"
Fuel Type:
Electric
Volts:
240/208 Volts
Amps:
40
Enjoy twice as many possibilities with LG's Double Built-In Wall Oven. Thanks to SmoothTouch, control over every function will be at your fingertips. And, with Crisp Convection - which creates the right airflow for more even heat distribution throughout the oven - you'll be able to preheat to the ideal temperature, 30 percent faster. As you can see, if one oven is good, having two is even better.
Crisp Convection
Continually distributes heat precisely so cooked foods such as biscuits, scones or pizza can remain delicious on the inside and crisp on the outside.
Self-Cleaning
Both ovens come with a self-cleaning mode that virtually eliminates the need to scrub.
SmoothTouch Controls
Using your oven has never been easier. Intuitive, digital controls allow heat and function adjustments to be made with the touch of a finger.
Key Features
Cooking Performance
- 4.7 cu. ft. Upper Oven Capacity
- 4.7 cu. ft. Lower Oven Capacity
- Convection Bake
- Convection Roast
- Crisp Convection
Style and Design
- Premium Stainless Steel Finish
- Brilliant Blue Interior
- WideView Windows
Convenience
- SmoothTouch Glass Controls
- Convection Conversion
- Self-Cleaning
- 5 Heavy-Duty Racks with 5 Positions
- 3D Lightiing
- Broil Pan
LWD3010ST Environmental Declaration
Specifications
Technical Details
Wattage
2,500 Watts
Voltage
240/208 Volts
Undercounter Installable
No
Star-K Certified
No
Amps
40
ADA Compliant
No
Features
Cooking Modes
Bake, Broil, Convection Bake, Convection Broil, Warm, Proof, Favorites, Crisp Convection
Control Type
SmoothTouch
Control Features
Delay Bake, Delay Clean, Automatic Shut-Off, Favorites
Configuration
Double Electric Wall Oven
Broil Element (Upper)
2500W Inner / 1500W Outer / 8 Pass
Broil Element (Lower)
2500W Inner / 1500W Outer / 8 Pass
Bake Element (Upper)
2500W / 8 Pass (Hidden Bake)
Bake Element (Lower)
2500W / 8 Pass (Hidden Bake)
Display
White VFD
Large WideView Window
Yes
No. of Racks
5 Heavy Duty Racks
Self-Cleaning
Yes
Oven Light
Yes
Oven Cooking Technology
Crisp Convection
Warranty
Parts and Labor
1 Year
Power / Ratings
KW Rating @240V
7.8kW
KW Rating @208V
5.9kW
Amp Rating @240V
120/240 VAC
Amp Rating @208V
120/208 VAC
Materials / Finishes
Handle
Matching Stainless
Door
Full Stainless Steel Wrap
Available Colors
Stainless Steel (ST)
Dimensions and Weight
Shipping Weight
303 lbs.
Overall Width
29 3/4"
Overall Height
52 1/16"
Overall Depth
24 3/8"
Cutout Width
28 1/2"
Cutout Height
51 15/16"
Cutout Depth
23 1/2"
Appearance
Viewing Window
Yes
Style
Double
Steam Oven
No
Stainless Steel Handle
Yes
Speed Oven
No
Color
Stainless Steel
Clock
Digital
Fuel Type
Electric
Microwave
No
Oven Features
Upper Racks
3
Upper Capacity
4.7 Cu. Ft.
Timer
Yes
Temperature Probe
No
Digital Temperature Display
Yes
Delay Bake
Yes
Convection
Both
Control Type
Touch Sensor
Capacity
9.4 Cu. Ft.
Broiler Element Location
Top
Self-Cleaning
Both
Sabbath Mode
No
Removable Door
Yes
Proofing
Yes
Proof Mode
Yes
Oven Racks
5
Lower Racks
2
Lower Capacity
4.7 Cu. Ft.
Interior Oven Light
Yes
Product Information
UPC
048231317108
Brand
LG
Model
LWD3010ST
Included Accessories
Broiling Pan
Yes
Dimensions
Exterior Depth
24 3/8 Inch
Cutout Width
28 1/2 Inch
Cutout Height
51 15/16 Inch
Cutout Depth
23 1/2 Inch
Exterior Height
52 1/16 Inch
Exterior Width
30 Inch
Capacity
Total Capacity
9.4 cu.ft.
Oven Capacity
4.7 cu.ft. Upper / 4.7 cu.ft. Lower
General
Manufacturer
LG
