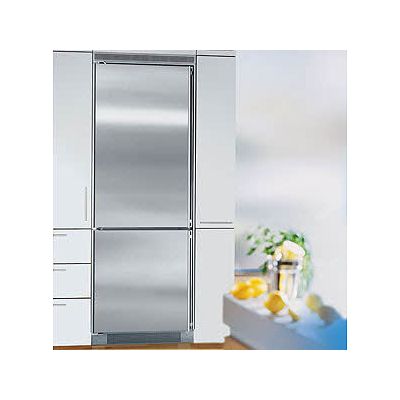

About the Liebherr C1651
- 30" Built-in Bottom-Freezer Refrigerator with 4 Glass Shelves
- FrostSafe & VarioSpace System
- 2 Freezer Bins and Sabbath Mode: Left Hand Door Swing
- With Ice Maker
The Liebherr 30" bottom mount built-in refrigerator and freezer with reversible door hinges can be easily integrated into any kitchen layout. The unique combined refrigerator and freezer with separately adjustable cooling circuits, GlassLine shelves, door racks and stainless steel trims enhance the streamlined interior of this appliance. This unit can be used on its own or as part of a side-by-side configuration for maximum space.
MFG SKU: C-1651
Key Features
30" Built-in Refrigerator/Freezer with Stainless Steel Doors and Factory Installed Handles
- Standard Features
- Opening dimensions H-84" when using Factory air vent W-30" See design guide for complete product specs
- Dual variable speed compressors preserve foods better, are more energy efficient, quieter and longer lasting
- Energy Star compliant
- SuperQuiet
- Sabbath Mode
- Intelligence Sensor technology
- Reversible doors - KIT REQUIRED
- Door swing setting of 90° or 130°
- Adjustable roller base, increase height up to 5/8"
- Refrigerator compartment - capacity 11.3 cu. ft.
- SuperCool lowers your refrigerator section to 35°F for 6 hours
- Beverage Rack
- Two 1-gallon storage spaces on the door
- NoFrost freezer compartment - capacity 4.2 cu. ft.
- FrostSafe System prevents cold air from escaping when door is open
- VarioSpace System for more flexible storage in the freezer
- SuperFrost will lower the freezer temp. to -25°F for flash freezing
Factory top air vent ordered separately when needed
MFG SKU: C-1651
Specifications
Appearance
Type
Built In
Style
Bottom Freezer
Size
Full Size
Door Style
One Door
Counter-Depth
Yes
Glass Door
No
Hinge Side
Left
Field Reversible Doors
Yes
Door Finish
Smooth
Accepts Custom Panels
No
Door Color
Stainless Steel
Cabinet Color
Black
French Door
No
Reversible Doors
Yes
Double Freezer Drawers
No
Dimensions
Width
30"
Depth
26"
Depth without Door and Handles
22 1/8"
Depth without Handles
24"
Depth with Door at 90?
52 3/4"
Height
81 1/16"
Depth with Door at 90°
52 3/4"
Capacity
Refrigerator Capacity
11.3 cu. ft.
Freezer Capacity
4.2 cu. ft.
Total Capacity
15.5 cu. ft.
Refrigerator Features
Type of Shelves
Glass
No. of Shelves
4
Slide-out Shelves
Yes
Spill Safe Shelves
No
Cantilever Shelves
No
Split Shelves
No
No. of Door Bins
3
Adjustable Door Bins
No
Gallon Door Storage
Yes
Water Dispenser
No
Dairy Center
Yes
Clear Deli Drawer
No
Door Lock
No
Wine Bottle Holder
No
Can Dispenser
Yes
Digital Temperature Control
Yes
Sabbath Mode
No
Freezer Features
Defrost
Automatic
Ice Maker
Yes
Ice Dispenser
No
Quick Freeze
Yes
No. of Baskets
2
Technical Details
Energy Star Rated
Yes
CEE Rating
Tier I
ADA Compliant
No
Approved for Commercial Use
No
Approved for Outdoor Use
No
Amps
15
Voltage
115 Volts
Dimensions
Height With Optional Factory Air Vent (min.-m
83 5/8" - 84 1/4"
Depth With Door Open 130?
47"
Depth With Door Open 90?
52 3/4"
Depth With Door and Handles
26"
Depth With Door
24"
Depth of Cabinet
22 1/8"
Width
30"
Height (min.-max.)
81 1/16" - 81 11/16"
Height With Optional Factory Air Vent (min.-max.)
83 5/8" - 84 1/4"
Depth With Door Open 90°
52 3/4"
Depth With Door Open 130°
47"
Cabinet Opening Dimensions
Height
83 7/8"
Width
29 1/2"
Depth
24"
Capacity
Refrigerator Compartment
11.3 cu. ft.
NoFrost Freezer Compartment
4.2 cu. ft.
Total Capacity
15.5 cu. ft.
Ice cube capacity
2.2 pd./24h
Ice cube stock
3.3 pd.
Standard Features
Dual Cooling Systems
Yes
Variable Speed Compressor
Yes
Energy Star Compliant
Yes
SuperQuiet
Yes
Sabbath Mode
Yes
Intelligence Sensor Technology
Yes
Automatic Defrost
Yes
LED Lighting
No
Door Swing Settings
90° or 130°
Adjustable Roller Base
Yes
Refrigerator Compartment
SuperCool Temp. 35?F for 6 hours
Yes
Beverage Rack
Yes
Gallon Door Storage
2
SuperCool Temp. 35°F for 6 hours
Yes
NoFrost Freezer Compartment
Transparent Freezer Bins
Yes
LED Illumination in Drawers
Yes
SuperFrost Temp. -25?F for Flash Freezing
Yes
SuperFrost Temp. -25°F for Flash Freezing
Yes
Technical Specifications
Energy Supply
115V / 60Hz / 350W
Energy Consumption p.a.
460 kWh
Climate Rating
50°F to 109°F (10°C to 43°C)
Notes
1
Allow units to open a minimum of 90° to prevent problems removing drawers. With the door opening 90°, you may have to move drawers slightly to clear the door interior.
2
Allow for a minimum 2" (51 mm) filler, for corner installations, so the door can open to 90°. If you're using raised panels, consider using a wider filler.
3
The given cabinet opening height dimension includes 2" for top air vent. If you choose to place the vent above the cabinet or in a soffit, you will need to adjust the height dimension accordingly.
Specifications:
Additional Style
One-Door Bottom Freezer
General
Manufacturer
Liebherr
