discontinued
There is a newer model of this item:
Need help finding a replacement?
-
Call us at
888-714-4938
Accessories
1 Item(s)

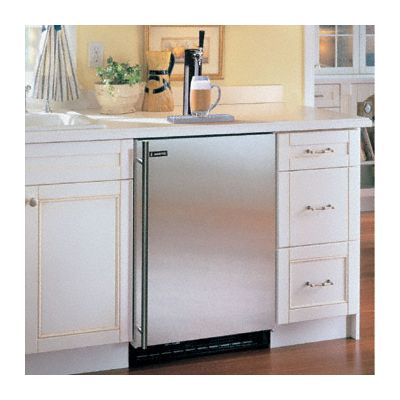

About the Marvel 61HKWWFR
- Tapping Equipment
- CO2 Tank
- Full Auto Defrost
- Right Hinge Door Opening
Brand:
Approved for Outdoor Use?:
No
Accepted Keg Sizes:
Half
Width:
23 7/8"
Depth:
26 1/4"
Height:
34"
Key Features
Performance
- Builds into standard cabinetry without added clearance
- Optional casters let you roll it anywhere
- Includes draft arm, hoses, CO2 tank and regulator, drip tray
- Standard clip-on handle attaches along door frame
- May be built-in, free-standing or rolled on optional casters
- Leveling legs
- Warranty: One year parts and labor. Five years on compressor and sealed system
Operating Tips
- A 1/2 barrel standard keg will provide approximately 175 12 oz. glasses of your favorite beer.
- The CO2 tank will last approximately 5-6 kegs under normal conditions.
- CO2 tanks can be filled at many places. Ask someone at the location where you get the keg about getting the CO2 tank filled
- Beer should stay good for 1-2 months as long as it is kept cold and the CO2 pressure is kept on.
- Since draft beer is not pasteurized, it must maintain a cold temperature between 38-40 degrees F.
- Temperatures above 45 degrees may cause the beer to become sour, skunky and cloudy.
- Foamy beer can be caused by many things. Warm spots in the beer line, dirty beer lines and twists or kinks in beer line. Also, let the keg settle for 2-3 hours before tapping it. Too much carbonation in the keg will cause foamy beer.
Specifications
Dimensions
Width
23 7/8 Inch
Depth
26 1/4 Inch
Height
34 Inch
Accepted Keg Sizes
Half
Features
Capacity
1/2 Keg or 1/4 Keg
Defrost
Full Auto Defrost
Temperature Range
33 - 52 degrees F
Dimensions & Weights
Width
23 7/8"
Toe Kick Height
3"
Shipping Weight
140 lbs.
Recommended Cutout Width
24"
Recommended Cutout Height
34 1/2"
Recommended Cutout Depth
24" min.
Recommended Clearance Hole Dia. for Beer Line When Mounting Dr
1 5/8"
Overall Depth including Handle
26 1/4"
Overall Depth excluding Handle
24 1/8"
Height without Legs Installed
34"
Height at Full Leg Adjustment
35"
Height at 0" Leg Adjustment
34 1/4"
Draft Tower Height
15 1/4"
Door Swing at 90°
25 1/2"
Depth excluding Door
22"
Technical Details
Voltage
120 Volts
Approved for Outdoor Use
No
Amps
15
Accepts Sanke Tap
No
Appearance
Type
Built In
Cabinet Color
White
Accepts Custom Panels
No
Door Color
White
Hinge Side
Right
Field Reversible Door
No
Technical Information
U.L. Listed
Yes
Electrical Requirements
120 Volts, 3 Amps running
Circuit Breaker Required
Max. 15 Amp Circuit Required
Accessories
Tap Cleaning Kit
P/N 42242373
Protective Cover
P/N 42243155
Casters
P/N 42244041
Built in Drain system
P/N 42242374
Product Information
Brand
Marvel
MPN
61HK-WW-F-R
Model
61HKWWFR
General
Manufacturer
Marvel
