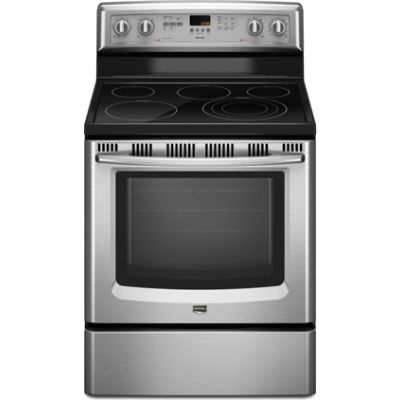

About the Maytag MER8772WS
- 5 Radiant Elements
- Warming Element
- 5.6 cu. ft. Self Clean Oven
- Convection Bake
- Storage Drawer
Brand:
Style:
Freestanding
Width:
29 7/8"
Height:
46 7/8"
Depth:
27 9/16"
Capacity:
5.6 Cu. Ft.
Burners:
5
Convection:
Yes
Self Clean:
Yes
Griddle:
No
Grill:
No
Fuel Type:
Electric
Volts:
240 Volts
Amps:
30
This 5.6 cu. ft. capacity electric range features a 3000 Watt Three Ring Element, delivering a steady amount of high heat for quicker and more consistent cooking than traditional electric cooktops. An extra-large oven window allows easy viewing of the interior.
Key Features
Key Features
- Better Built with More Power for Your Cooking Needs
- 5.6 Cu. Ft. Capacity Electric Range
- Power Center with a 12"/9"/6" Triple-Choice Element and a 3,200-watt Speed Heat Element
- EvenAir Convection
- Better Built Cooking Components
- Hidden Bake Element with Power Vents
- Precision Cooking System with Precise Preheat, PreciseBake and PreciseBroil
- Self-Cleaning with Adjustable Cleaning Levels
- Precision Warming Center
- Extra Large Oven Window
- Keep Warm Setting
- Delay Bake Setting
- Two Oven Racks
- Delay Clean Setting
- Reliable Electronic Touch Oven Controls
- Control Lockout
- Hot Surface Indicator Light
- Automatic Oven Light
- High/Low Variable Broil
- Electronic Clock with Timer
- Easy-Roll Storage Drawer
- Sabbath Mode
- Favorite Setting
Available at Designer Appliances - www.designerappliances.com
MER8772WS Dimension Guide
Specifications
Burner Output
Set 2 QTY
2
Set 3 Output
100
Set 3 QTY
1
Set 4 Output
100
Set 4 QTY
1
Set 5 Output
100
Set 5 QTY
1
Set 2 Output
1200
Burner 1 Output
3000
Burner 2 Output
1200
Burner 3 Output
100
Set 1 Output
3000
Set 1 QTY
2
Electric Cooktop Features
Left Rear Power
1200 Watts
Left Rear Size
6"
Right Front Power
3200 Watts
Right Front Size
10"
Right Rear Power
1200 Watts
Right Rear Size
6"
Left Front Size
12"/6"
Left Front Power
3000/1400 Watts
Center Rear Power
100 Watts
Center Rear Size
6"
Cooktop Element Type
Radiant / Smoothtop
Dimensions
Depth
27 3/4"
Gross Weight
170
Height
47 7/8"
Width
29 7/8"
Oven Features
Cleaning System
AquaLift Cleaning System
Control Lockout
Yes
Delayed Cooking
Yes
Power Preheat
Yes
Sabbath Mode
Yes
Timed Cook
Yes
Total Capacity
6.2 Cu. Ft.
Warm Hold
Yes
General Features
Range Type
Freestanding
Rack Glides
7
Oven Racks
3 (1 Max Capacity, 2 Standard)
Drawer Type
Storage Drawer
Fuel Type
Electric
Oven Lights
1
Appearance
Stainless Steel Handle
No
Style
Freestanding
Viewing Window
Yes
Clock
Yes
Color
Stainless Steel
Cooktop
Smoothtop
Drawer
Storage
Fuel Type
Electric
Technical Details
Star-K Certified
No
Voltage
240 Volts
ADA Compliant
No
Amps
30
Oven Wattage
3,600
Ignition Type
Electronic
LP Conversion
No
Oven Features
Temperature Probe
No
Timer
Yes
Convection
Yes
Delay Bake
Yes
Digital Temperature Display
Yes
Broiler Element Location
Top
Broiler Pan Included
No
Primary Oven Capacity
5.6 Cu. Ft.
Proof Mode
No
Proofing
No
Racks
2
Removable Door
Yes
Sabbath Mode
Yes
Self-Cleaning
Yes
Oven Control Type
Digital
Interior Oven Light
Yes
Product Information
UPC
883049185330
Brand
Maytag
Model
MER8772WS
Dimensions
Width
29 7/8 Inch
Depth
27 9/16 Inch
Height
46 7/8 Inch
Cooktop Features
Cooktop Control Type
Digital and Knobs
Downdraft Ventilation
No
Burners / Elements
5
Griddle
No
Grill
No
Hot Surface Indicator Light
Yes
Induction
No
Modules Required
No
Capacity
Number of Burners
5
General
Manufacturer
Maytag
