discontinued
There is a newer model of this item:
Need help finding a replacement?
-
Call us at
888-714-4938

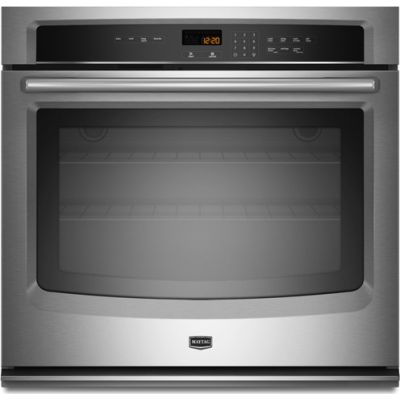

About the Maytag MEW7527AS
- 4.3 cu. ft. Capacity
- 2 Oven Racks
- Precision Cooking System
- Self-Cleaning
- Delay Start
- Hidden Bake
- Variable Broil
Brand:
Oven Style:
Single
Capacity:
4.3 Cu. Ft.
Convection:
No
Self Clean:
Yes
Color:
Stainless Steel
Width:
27"
Height:
28 3/4"
Cutout Width:
25 1/2"
Cutout Height:
28"
Fuel Type:
Electric
Volts:
240 Volts
Amps:
20
Now more than ever, they believe that their bold innovation and designs will connect with consumers in meaningful ways that will last a lifetime. Available at Designer Appliances.
Key Features
Industry-leading 4.3 cu. ft. Capacity
- From everyday meals to large family feasts, count on the industry-leading capacity to meet all your cooking needs.
10-Year Limited Parts Warranty on Oven Elements
- A 10-year limited parts warranty on the oven elements ensures long-lasting performance.
FIT System offering Streamlined Installation
- The FIT system streamlines installation by adjusting to almost any existing cutout without the need to move cabinets, modify trim or cut into walls. All necessary installation parts are included.
Designed, Engineered, Assembled in the U.S.A
- From Tennessee to you, Maytag ovens are designed, engineered and assembled in America.
Precision Cooking System with Precise Preheat, Precise Bake and Precise Broil
- This cooking system combines Precise Preheat, Precise Bake and Precise Broil to provide dependable, even cooking throughout the oven for exceptional results and optimal performance.
Variable broil
- The broil element can be adjusted for precise, consistent cooking results.
2X Life Hinges
- The 2X Life hinges are tested to twice the normal life expectancy to help ensure years of dependability.
Panoramic View Oven Window
- These extra-large oven windows provide better visibility of the oven interior, allowing you to monitor cooking progress without opening the door, keeping oven temperatures steady and undisturbed.
Self-Cleaning Oven with Adjustable Cleaning Levels
- Automatically cleans the oven according to a preprogrammed cycle that allows you to match the cleaning level to the amount of food buildup in the oven - light, medium or heavy.
Available at Designer Appliances. (www.designerappliances.com)
Hidden Bake Element
- Creates a smooth oven floor, so spills are easy to clean without maneuvering around heating coils.
Cabinet Installation
- Can be installed within a cabinet design or directly within the wall for maximum accessibility.
Undercounter Installation
- This model can be installed under a cooktop or counter to help maximize counter and cabinet space in the kitchen.
MEW7527AS Dimension Guide
Specifications
Dimensions
Cutout Width
25 1/2"
Overall Depth
27 1/8"
Overall Height
28 3/4"
Overall Width
27"
Bottom of Cutout to Floor (in-wall)
32"
Bottom of Cutout to Floor (undercounter)
5 1/4"
Cavity Depth
19"
Cavity Height
18"
Cavity Width
22"
Cutout Depth
24"
Cutout Height
28"
Features
Approved for Under-Cooktop Installation
Yes
Bake Element (Watts) @240/208 V
2800/2427
Broil Element (Watts) @240/208 V
3600/3120
Capacity
4.3 cu. ft.
Closed Door Broiling
Yes
Control Lockout
Yes
Control Type
Keypad
Delay Bake
Yes
FIT System Feet and Trims Supplied with Oven
Yes
Hidden Bake
Yes
Oven Controls Display Color
Amber
Oven Controls Display Type
Digital Display
Oven Lights
2 Incandescent
Precision Cooking System
Yes
Rack Configuration
2 (1 Roll-Out Rack)
Rack Positions
6
Sabbath Mode
Yes
Self-Cleaning
Yes
Specifications
Total Connected Load (kW) @ 240 volts
3.690
Total Connected Load (kW) @ 208 volts
2.790
Circuit
20 Amps
Handle Type
Metal
Power Supply Connection Location
3" Below Support Platform on Left or Right
Sales Demo Mode
Yes
Shipping Weight
138 Lbs.
Appearance
Steam Oven
No
Style
Single
Viewing Window
Yes
Stainless Steel Handle
Yes
Speed Oven
No
Color
Stainless Steel
Clock
Digital
Drawer
None
Fuel Type
Electric
Microwave
No
Oven Features
Temperature Probe
No
Timer
Yes
Control Type
Touchpad
Convection
No
Delay Bake
Yes
Digital Temperature Display
Yes
Broiler Element Location
Top
Broiler Pan Included
No
Capacity
4.3 Cu. Ft.
Sabbath Mode
Yes
Self-Cleaning
Yes
Removable Door
Yes
Proofing
No
Interior Oven Light
Yes
Oven Racks
2
Proof Mode
No
Technical Details
Undercounter Installable
Yes
Voltage
240 Volts
Star-K Certified
No
Wattage
2,800 Watts
ADA Compliant
No
Amps
20
Approved for Outdoor Use
No
LP Conversion
No
Product Information
UPC
883049232140
Brand
Maytag
Model
MEW7527AS
Dimensions
Cutout Depth
24 Inch
Cutout Height
28 Inch
Cutout Width
25 1/2 Inch
Exterior Depth
26 15/16 Inch
Exterior Height
28 3/4 Inch
Exterior Width
27 Inch
General
Manufacturer
Maytag
