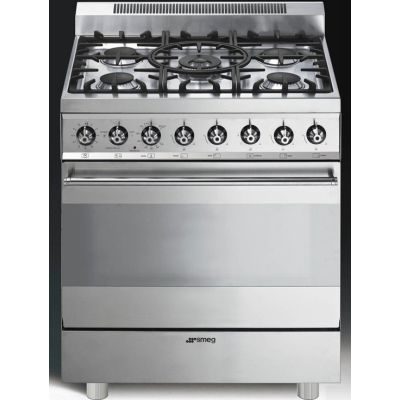

About the Smeg C30GGXU
- 30" Freestanding Gas Range with 5 Sealed Burners
- Continuous Grates
- 3.55 cu. ft. Oven Capacity
- Convection Cooking and Enameled Oven Interior
Brand:
Series:
Classic Design
Style:
Freestanding
Width:
30"
Height:
35 5/8"
Depth:
25"
Capacity:
3.5 cu. ft.
Burners:
5
Convection:
Yes
Self Clean:
No
Griddle:
No
Grill:
No
Fuel Type:
Gas
Volts:
120 Volts
Amps:
15
Understated lines, perfect in their simplicity - this is what makes Smeg products refined and elegant, beyond the passing fads of fashion. It is an unmistakable style, shaped by the leading architects and industrial designers in the world who have undertaken original and exclusive projects.
The engineering behind both their materials and their processes allow for the highest quality steel, which is rigorously selected, to be transformed into products which combine the highest levels of technology and design. Production, incorporating laser cutting facilities for steel, workshop at the avant-garde of mechanics, exhaustive fatigue testing of materials, and laboratories engaged constantly in research, all testify to Smeg's commitment to offer aspirational products destined to be durable and to last in time.
Key Features
- 30" Freestanding Gas Range
- AISI 304 Stainless steel
- Oven door in Stopsol glass and stainless steel
- Ergonomic control knobs
Oven Features
- 3 Cooking modes (gas, gas with fan, broil)
- Fan option for static gas
- Gross Oven Capacity: 3.55 cu. ft.
- Usable (net) Oven Capacity: 3.2 cu. ft.
- "Ever-clean" enameled oven interior
- Timer with alarm (60 min.)
- Adjustable thermostat 300 ° - 530 °F
- Air cooled triple glazed removable door
- Bake element power 16,500 BTU
- Broiler power 12,500 BTU
Gas Rangetop Features
- Heavy duty cast iron grates matt black burner caps
- Sealed burners
- Electronic automatic ignition incorporated in the knobs
- LP Gas conversion kit included
- 4" Polished stainless steel backsplash
- Deep range-top base to contain spillage
- 5 Gas burners:
- 4 Burners Min-Max with Simmer feature
- Central High Output 17,000 BTU Burner
- Front right: 10,200 BTU burner
- Back right: 10,200 BTU burner
- Back left: 10,200 BTU burner
- Front left: 10,200 BTU burner
Safety
- Automatic reignition when flame is accidentally extinguished
- Valved gas oven
- Ventilated door with cooling system to prevent overheating
- Anti-tilting norms satisfied
- Suitable for building-in
Accessories Included
- 1 Baking tray, 1 Broil pan, 1 Broiler rack, 1 Wire rack, 1 Wok ring
Optional Accessories
- Island trim, Side trim, Backsplash, 30" hood
Manuals & Downloads
C30GGXU Pdf Bulletin
C30GGXU Pdf Mini Bulletin
C30GGXU PDF Symbols
C30GGXU Warranty
Specifications
Technical Details
ADA Compliant
No
Amps
15
Ignition Type
Electronic
LP Conversion
Yes
Oven BTUs
16500
Star-K Certified
No
Voltage
120 Volts
Oven Features
Broiler Element Location
Top
Convection
Yes
Delay Bake
No
Digital Temperature Display
No
Interior Oven Light
Yes
Oven Control Type
Knobs
Primary Oven Capacity
3.5 cu. ft.
Proofing
No
Racks
2
Removable Door
Yes
Sabbath Mode
No
Self-Cleaning
No
Temperature Probe
No
Timer
Yes
Cooktop Features
Burners / Elements
5
Cooktop Control Type
Knobs
Downdraft Ventilation
No
Griddle
No
Grill
No
Hot Surface Indicator Light
No
Induction
No
Modules Required
No
Appearance
Clock
No
Color
Stainless Steel
Continuous Grates
Yes
Cooktop
Sealed Burner
Drawer
None
Fuel Type
Gas
Stainless Steel Handle
Yes
Style
Freestanding
Viewing Window
Yes
Dimensions
Depth
25"
Height
35 5/8"
Interior Width
24 3/8"
Width
30"
General
Series
Classic Design
Manufacturer
Smeg
Burner Output
Set 1 Output
10110
Set 1 QTY
4
Set 2 Output
18000
Set 2 QTY
1
Design
AISI 304 Stainless Steel
Yes
Backsplash
4" Polished Stainless Steel
Control Knobs
Sturdy American Style
Dimensions & Weights
Backsplash Height
3 15/16"
Product Depth
25"
Product Height excluding Backsplash
35 5/8" to 37 6/8"
Product Weight
214 lbs.
Product Width
30"
Shipping Weight
242 lbs.
Dimensions
Depth
25"
Height
35 5/8" Min. - 37 6/8" Max.
Product Weight
214 lbs.
Shipping Weight
242 lbs.
Width
30"
Power
Amp Supply Required
1.2 @ 120V
Connected Load (Nominal Power)
120V
Gas Inlet Location
Back top right
Voltage rating
120V 60Hz
Gas Rangetop
Automatic Electronic Ignition
Yes
Back left
10,110 BTU burner
Back right
10,110 BTU burner
Center
18,000 BTU burner
Front left
10,110 BTU burner
Front right
10,110 BTU burner
Gas Burners
5
Heavy Duty Cast Iron Grates
Yes
LP Gas Conversion Kit
Included
Safety Valves
Yes
Sealed Burners
Yes
Simmer feature
Yes
Oven
Anti-tilting
Yes
Bake Element Power
16500 BTU
Broiler Power
12500 BTU
Cooking modes
Gas Convection, Broil, Defrost
Cooling System
Yes
Oven Automatic Re-ignition
Yes
Oven Capacity
3.55 Cu. Ft.
Oven Interior
Enamelled Ever-Clean
Oven Light
Halogen
Thermostat
Adjustable
Timer
Yes
Valved gas oven
Yes
Ventilated door
Yes
Features
Adjustable Thermostat
300° - 530° F
Automatic Re-ignition
Yes
Back Left
10,100 BTU; Simmer 1,650 BTU
Back Right
10,100 BTU; Simmer 1,650 BTU
Backsplash
3 15/16" Polished Stainless Steel
Bake Element Power
16,500 BTU
Broiler Power
12,500 BTU
Central High Output
Inner 1,100 BTU; Inner + Outer 17,000 BTU
Cooking Modes
3 - Gas, Gas with Fan, Broil
Electronic Automatic Ignition
Yes
Front Left
10,100 BTU; Simmer 1,650 BTU
Front Right
10,100 BTU; Simmer 1,650 BTU
Gas Burners
5
Gross Oven Capacity
3.55 cu. ft.
LP Gas Conversion Kit
Included
Min-Max Burners with Simmer
4
Sealed Burners
Yes
Suitable for Built-in
Yes
Timer with Alarm
Yes (60 min.)
Usable Oven Capacity
3.2 cu. ft.
Valved Gas Oven
Yes
Ventilated Door
Yes with Cooling System
Accessories
Baking Tray
1 Included
Chrome Shelves
2 Included
Moka Ring
1 Included
Wok Ring
1 Included
Electric Connection
Connected Load (Nominal Power)
1.2 Amp
Voltage
120 V 1N ~; Frequency 60 Hz.
